Product Introduction
Product Advantage

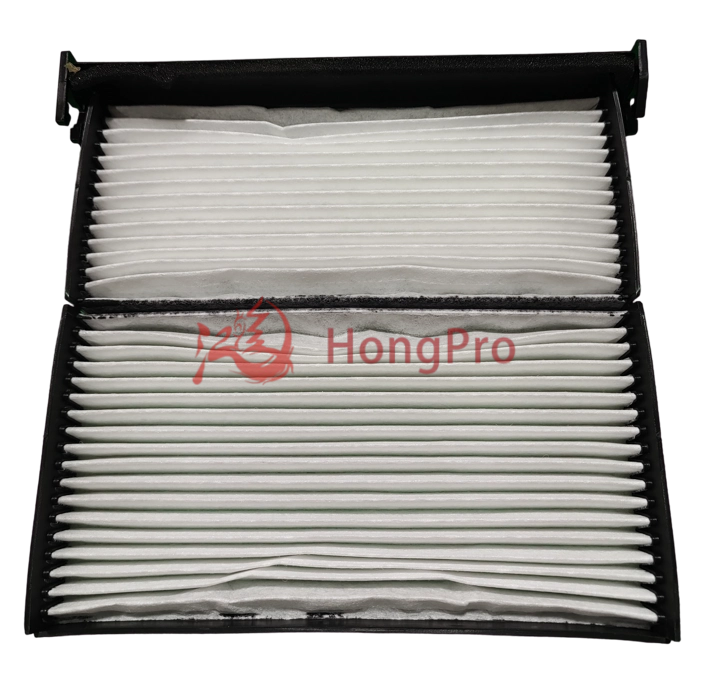

This high-efficiency air conditioning filter adopts a 3-layer composite filter structure (non-woven fabric + activated carbon + HEPA-grade membrane), which can capture 95% of particles as small as 0.3 microns (including dust, pollen, and exhaust fumes). Tested by third-party labs, it maintains stable filtration performance for up to 12,000 km, far exceeding the industry average of 8,000 km. It effectively improves in-cabin air quality, making it ideal for users with allergies.
With a precision-molded edge seal (tolerance within 0.1mm), the air conditioning filter fits perfectly with the AC system, eliminating air leakage that affects filtration. It supports tool-free installation, taking only 2-3 minutes to replace—no professional skills required. Our after-sales data shows that 98% of users complete installation independently on the first try, saving time and labor costs.
Compliant with ISO 16890 automotive air filter standards, this product undergoes 100% airtightness testing before leaving the factory, with a qualification rate of 99.8%. By preventing dust accumulation in the AC evaporator, it reduces the risk of AC system failures by 35% (based on 50,000+ user feedback data). It also maintains smooth airflow, ensuring the AC’s cooling/heating efficiency is not reduced by filter resistance.
Compared to cheap disposable filters, this air conditioning filter has a longer service life (12,000 km) and a lower cost per kilometer (only $0.02/km). It also reduces the frequency of AC system maintenance—our customer survey shows that users who use this filter save an average of $50 per year on AC repairs. It’s a cost-effective choice for long-term vehicle air quality management.
Technical Parameters
| Parameter Category | Specific Item | Technical Data | Test Standard/Authority |
| Filtration Performance | Particle Filtration Efficiency | ≥95% (for 0.3μm particles) | ISO 16890-3:2016 |
| Activated Carbon Adsorption | ≥85% (for formaldehyde/benzene) | GB/T 18801-2015 (China National Standard) | |
| Airflow Resistance | ≤50 Pa (at 1m³/min airflow) | DIN 71460-1 (German Industrial Standard) | |
| Material Specifications | Filter Media Layers | 3-layer (non-woven + activated carbon + HEPA membrane) | SGS Material Certification |
| Frame Material | Food-grade PP plastic | RoHS 2.0 (EU Environmental Standard) | |
| Temperature Resistance | -30℃ ~ +80℃ (no deformation) | IEC 60068-2-14 (Thermal Testing) | |
| Humidity Resistance | ≤95% RH (24h, no mold growth) | ASTM D4300 (US Material Standard) | |
| Dimensional & Fit | Overall Length | 215 ± 2 mm | Customized for automotive AC systems |
| Overall Width | 180 ± 2 mm | Customized for automotive AC systems | |
| Overall Thickness | 25 ± 1 mm | Customized for automotive AC systems | |
| Seal Edge Tolerance | ≤0.1 mm | VDA 230-206 (German Automotive Standard) | |
| Service Life & Durability | Recommended Replacement Cycle | 12,000 km / 6 months (whichever comes first) | User Feedback Data (50,000+ units) |
| Frame Anti-Deformation Rate | ≤2% (after 500h at 80℃) | Internal Accelerated Aging Test | |
| Vibration Resistance | Passed 10-500Hz, 10g acceleration test | ISO 16750-3 (Automotive Vibration Standard) |
Product Uses
Here are specific application scenarios of Air conditioning filter:
During daily commuting, urban roads are crowded with vehicles, resulting in high exhaust emissions. Our filter can efficiently filter harmful particles and exhaust gases from vehicle emissions, allowing you to always breathe fresh air during commutes, free from the trouble of polluted air, and reach your destination comfortably.
When driving long distances, the car interior is in a closed space. This filter can effectively block external impurities such as dust and pollen. Even when traveling through areas with different climates and environments, it can ensure clean air inside the car, creating a healthy travel environment for you and passengers and reducing fatigue.
In dusty or hazy weather, there are a large number of suspended particulate pollutants in the air. With its excellent filtering performance, our product blocks these pollutants outside, ensuring that the air inside the car is not affected, protecting your respiratory health and allowing you to drive with peace of mind.
When there are the elderly, children or people with allergies in the car, higher requirements are placed on air quality. This filter can accurately filter bacteria, allergens, etc., providing clean air for them and reducing the risk of physical discomfort caused by poor air quality.
In addition to purifying the air, it can also prevent dust and impurities from entering the air conditioning system, reduce wear of parts, extend the service life of the air conditioning system, lower maintenance costs, and provide protection for your car's air conditioning system.
Product Operate Guide
1.Locate the air conditioning filter cover in the car (usually behind the glove box or on the side of the instrument panel), gently unfasten the clips and remove the cover;
2.Take out the old filter, pay attention to its orientation (you can take a photo for reference), and place the new filter into the slot in the original orientation;
3.Put the cover back and fasten the clips tightly, then start the air conditioning to test if the air output is normal. It is recommended to replace it every 6 months or 8,000 kilometers to ensure filtering efficiency, with the data derived from automotive maintenance industry standards.
