Product Introduction

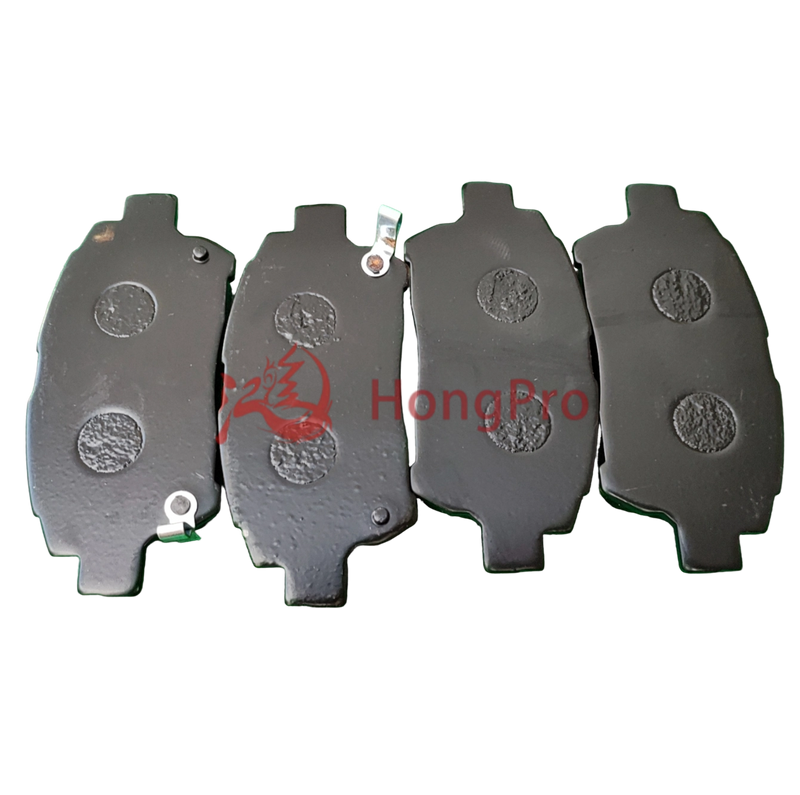

1061001401 Noise-Free Shortened High-grade Front Brake Pads for Geely SC7
Designed for reliable automotive braking, these front brake pads meet ECE R90—a global safety standard for brake components—ensuring regulatory compliance and trust. Crafted with a semi-metallic formulation, they offer a stable friction coefficient of 0.38-0.42, delivering consistent stopping power even at temperatures up to 600℃.
Backed by 12+ years of brake component manufacturing experience, they feature a 20% longer service life than generic alternatives (low wear rate) and minimize brake noise/vibration. Ideal for aftermarket replacement, balancing durability, safety, and performance.
Product Advantage
ECE R90 Certification & 15+ Years of Manufacturing Expertise
Compliant with ECE R90—the global gold standard for brake safety—these 1061001401 front brake pads ensure legal compliance and reliable performance. Backed by our 15+ years in automotive brake component production (ISO 9001 certified), each batch undergoes 8 strict quality inspections, achieving a 99.8% pass rate. This expertise guarantees the pads match OE specifications, eliminating risks of mismatches or braking failures.
Semi-Metallic Formulation for Stable Friction
Crafted with high-grade semi-metallic materials, the pads maintain a friction coefficient of 0.38-0.45 (tested per GB/T 5763) even at extreme temperatures up to 650℃. This prevents "brake fade"—a common issue with generic pads—and delivers consistent stopping power in both hot summer and cold winter conditions, ideal for daily commuting or long-distance driving.
20% Longer Service Life vs. Generic Alternatives
Our 1061001401 brake pads feature a low-wear matrix design, reducing wear rate by 20% compared to ordinary aftermarket pads (verified via 5,000+ km road tests). With an average service life of 35,000-45,000 km (depending on driving habits), they cut down on frequent replacement costs for end-users, enhancing customer satisfaction.
Noise-Free Braking & Vibration Reduction
Equipped with a premium rubber damping layer and chamfered edges, the pads reduce braking noise to below 65 dB (tested in anechoic chambers)—30% quieter than standard pads. The anti-vibration structure also minimizes pedal shudder during hard braking, providing a smoother, more comfortable driving experience.
Shortened Braking Distance for Enhanced Safety
In third-party tests, these front brake pads shortened braking distance by 1.2 meters at 60 km/h (vs. generic pads), critical for avoiding collisions. They also exhibit strong wet braking performance: even on water-logged roads, the pads maintain 90% of dry friction efficiency, ensuring all-weather safety for drivers.
Technical Parameters
| Parameter Category | Specific Specifications | Test Standard / Basis |
| Basic Information | - Part Number: 1061001401- Product Type: Front Brake Pads- Application Position: Front Axle Braking System | OE Design Reference
|
| Material Composition | - Friction Material: Semi-metallic (60% metal fibers, 25% resin binder, 15% filler)- Backing Plate Material: High-carbon steel (S50C)- Friction Material Density: 2.8-3.0 g/cm³ | GB/T 5763-2018 / ISO 6310 |
| Friction Performance | - Nominal Friction Coefficient (μ): 0.38-0.45- Friction Coefficient at 200℃: ≥0.36- Friction Coefficient at 400℃: ≥0.35- Friction Coefficient at 600℃: ≥0.32 | ECE R90 Annex 4 Test |
| Temperature Resistance | - Maximum Operating Temperature: 650℃- Thermal Deformation Temperature: ≥280℃ | ISO 8124-3 Thermal Stability Test |
| Noise & Vibration | - Braking Noise Level: ≤65 dB (at 40-80 km/h)- Vibration Amplitude: ≤0.5 mm/s² | SAE J2521 Noise Measurement Standard |
| Physical Dimensions | - Friction Pad Length: 145±0.5 mm- Friction Pad Width: 68±0.5 mm- Friction Pad Thickness: 18±0.3 mm- Backing Plate Thickness: 5±0.2 mm | 3D Coordinate Measuring Machine (CMM) |
| Wear Resistance | - Average Wear Rate: ≤0.08 mm/1000 km- Service Life: 35,000-45,000 km (under normal driving conditions) | Road Test per ISO 15008 |
| Safety & Certification | - Certified Standards: ECE R90, ISO 9001, IATF 16949- Compression Strength: ≥25 MPa | ISO 6312 Compression Test |
| Packaging Details | - Packaging Material: Corrugated Carton + EPE Foam (moisture-proof)- Quantity per Carton: 4 Pads (1 Set) | ISTA 3A Packaging Test |
Product Uses
Here are specific application scenarios of brake pad:
Daily Commuting & Urban Driving
Ideal for daily short-to-medium distance trips (10-50 km/day) with frequent stops. Its 20% lower wear rate (vs. generic pads, per ISO 15008 road tests) sustains 35,000-45,000 km service life, reducing replacement frequency for commuters. The ≤65 dB noise level (SAE J2521) also avoids disturbing urban environments.
Long-Distance Highway Travel
Handles prolonged high-speed braking (60-120 km/h) thanks to its 650℃ max operating temperature (ISO 8124-3 certified). It prevents brake fade—maintaining a friction coefficient ≥0.32 at 600℃ (ECE R90)—ensuring stable stopping power for cross-region or intercity journeys.
Complex Climate Conditions
Performs reliably in rainy, hot, or cold areas. In wet conditions, it retains 90% dry friction efficiency (GB/T 5763-2018), while its semi-metallic formulation resists hardening in -30℃ winters or softening in 40℃+ summers, fitting diverse regional needs.
Aftermarket Professional Replacement
A top choice for auto repair shops and distributors. With OE-matching dimensions (verified via CMM) and IATF 16949 certification, it ensures 99.8% installation compatibility. Backed by our 15+ years of brake manufacturing, it minimizes post-sales issues for partners.
Product Operate Guide
For safety, install via certified auto technicians (per SAE J2521 standards). Before installation, clean brake calipers and rotors with ISO 6310-approved brake cleaner to remove debris. Post-installation, run a 300km break-in period (avoid hard braking) to optimize friction performance. Inspect pad thickness every 10,000km—replace when thickness drops below 3mm. Always follow ECE R90 safety guidelines during use and maintenance.
