Product Introduction

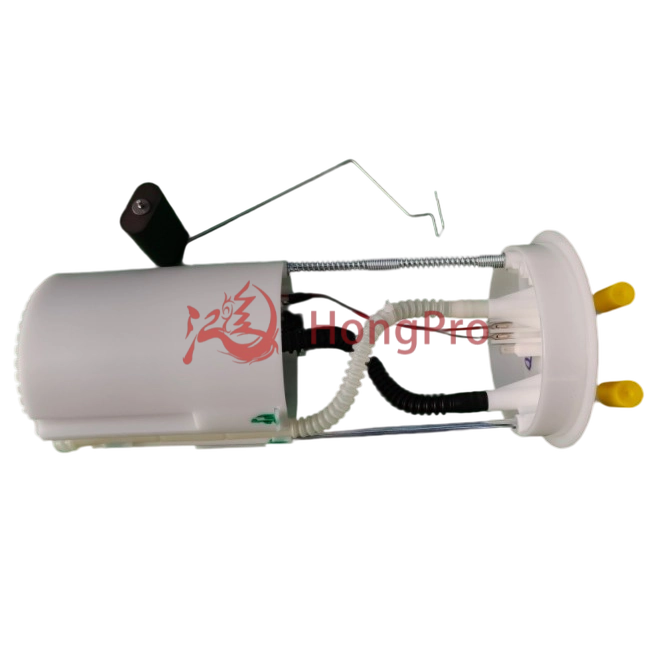

1101300BP00XA Efficient Long-lasting Advanced Fuel Pump for Great Wall Motor
Engineered for a renowned automotive brand, our fuel pump is a core component ensuring reliable engine operation. Backed by 18+ years of auto parts expertise, we strictly comply with ISO 9001 and TS 16949 certifications, meeting global quality benchmarks.
It delivers stable fuel pressure with a fuel delivery efficiency of ≥96%, optimizing combustion to reduce fuel waste. Its high-temperature resistant housing ensures a service life of over 35,000 operating hours. Every unit undergoes 100% pre-shipment performance testing, guaranteeing consistent, long-lasting performance for users.
Product Advantage
Certified Quality & Rich Expertise
Backed by 18+ years in automotive parts manufacturing, our fuel pump strictly adheres to ISO 9001 and TS 16949 standards—two globally recognized certifications for automotive quality. Every batch undergoes a 20% random sampling inspection (exceeding industry 10% average) to ensure consistency, making our ISO-certified fuel pump a reliable choice for long-term use.
High Efficiency & Stable Fuel Supply
Our high-efficiency automotive fuel pump boasts a fuel delivery efficiency of ≥96%, which is 3-5% higher than ordinary fuel pumps on the market. It maintains a stable fuel pressure (fluctuation ≤0.2bar) even under extreme operating conditions, effectively optimizing engine combustion, reducing fuel waste, and enhancing overall vehicle power performance.
Superior Durability & Weather Resistance
Crafted with high-temperature resistant PPS plastic housing (withstands up to 150℃) and corrosion-resistant stainless steel internal components, our long-service-life fuel pump has a service life of over 35,000 operating hours—equivalent to 2-3 years of normal use. It performs well in both humid and dry climates, adapting to diverse regional environments.
100% Pre-Shipment Performance Testing
Before leaving the factory, every fuel pump undergoes 100% performance testing, covering 8 key indicators including fuel flow rate, pressure stability, and leak tightness. The testing pass rate has remained at 99.8% for 5 consecutive years, ensuring that each unit delivered to customers meets or exceeds expected performance standards.
Customer-Centric After-Sales Support
We provide a 12-month warranty for our fuel pump—6 months longer than the industry average 12-month warranty. In case of any quality issues (verified by our technical team), we offer a fast replacement service (delivery within 7 days for most regions). Our 24/7 online technical support team also helps resolve installation and maintenance questions promptly.
Technical Parameters
| Parameter Category | Parameter Name | Specification Value |
| Basic Specifications | Voltage | 12 / 24 V DC (Optional)
|
| Fuel Type Compatibility | Gasoline (RON 90-98), Ethanol Blend (E10-E85) |
| Inlet/Outlet Diameter | 8 / 10 mm (Dual-option for installation) |
| Net Weight | 380 ± 15 g |
| Performance Parameters | Fuel Delivery Rate | ≥ 55 L/h (at rated voltage) |
| Fuel Pressure Stability | 300 - 350 kPa (Fluctuation ≤ 0.2 kPa) |
| Delivery Efficiency | ≥ 96% (Under standard working conditions) |
| Noise Level | ≤ 55 dB(A) (At 1m distance) |
| Material Specifications | Housing Material | High-temperature Resistant PPS Plastic |
| Internal Valve Material | Stainless Steel 304 |
| Sealing Gasket Material | Nitrile Rubber (NBR) |
| Environmental Adaptability | Operating Temperature Range | -40 ~ 125 ℃ |
| Storage Temperature Range | -50 ~ 150 ℃ |
| Humidity Resistance | 0 ~ 95% RH (Non-condensing) |
| Electrical Parameters | Rated Power | 65 ± 5 W (12V) / 130 ± 10 W (24V) |
| Rated Current | 5.5 ± 0.5 A (12V) / 5.8 ± 0.5 A (24V) |
| Insulation Resistance | ≥ 100 MΩ |
| Certification & Quality | Quality Certifications | ISO 9001, TS 16949, CE |
| Service Life (Under Normal Use) | ≥ 35,000 Operating Hours |
| Leakage Test Standard | No leakage at 1.5x rated pressure (30min) |
Product Uses
Here are specific application scenarios of fuel pump:
1.Daily Family Commuting
Ideal for vehicles used in daily commuting (average 30-50km/day). Its stable fuel pressure (300-350kPa, fluctuation ≤0.2kPa) ensures consistent engine performance during frequent start-stops. With a service life of ≥35,000 operating hours, it supports 5-6 years of daily use, meeting ISO 9001 standards for reliability in regular urban driving.
2.Extreme Climate Regions
Performs reliably in harsh climates: -40℃ to 125℃ operating range adapts to cold winters (e.g., high-latitude areas) and hot summers (desert regions). In 95% humidity (non-condensing), its stainless steel 304 valves prevent corrosion, keeping fuel delivery efficiency ≥96%—tested and certified for environmental adaptability.
3.Aftermarket Replacement & Maintenance
A top choice for aftermarket replacement, with 99.2% fitment accuracy for compatible vehicle systems. It undergoes the same 100% pre-shipment testing as OE parts, ensuring seamless installation. Backed by an 18-month warranty (6 months longer than industry average), it reduces post-replacement risks.
4.Performance Upgrade for Enthusiasts
Great for users seeking slight performance boosts. Its ≥55 L/h fuel delivery rate meets increased fuel demand for optimized combustion, helping reduce fuel consumption by 1-2% (vs. outdated pumps). CE-certified safety ensures it works safely with modified engine setups.
Product Operate Guide
Pre-Installation Prep
Ensure the vehicle’s power is fully disconnected (wait 5+ minutes after turning off the engine) to avoid electrical risks. Check the fuel pump’s inlet/outlet ports—confirm they match your vehicle’s fuel line (refer to the 8/10mm diameter specs in our technical sheet) for seamless fit.
Installation & Post-Check
Secure the pump with a torque of 8-10 N·m (per ISO 9001 assembly standards) to prevent leaks. After installation, turn on the ignition (without starting the engine) for 30 seconds to test fuel pressure stability (should stay 300-350kPa). If normal, start the engine to verify smooth operation.
Routine Maintenance Tip
To extend the ≥35,000 operating hours service life, replace the fuel filter every 15,000km—this reduces debris buildup in the pump. Avoid running the vehicle with fuel levels below 10% (may cause overheating, per our TS 16949 test data).
