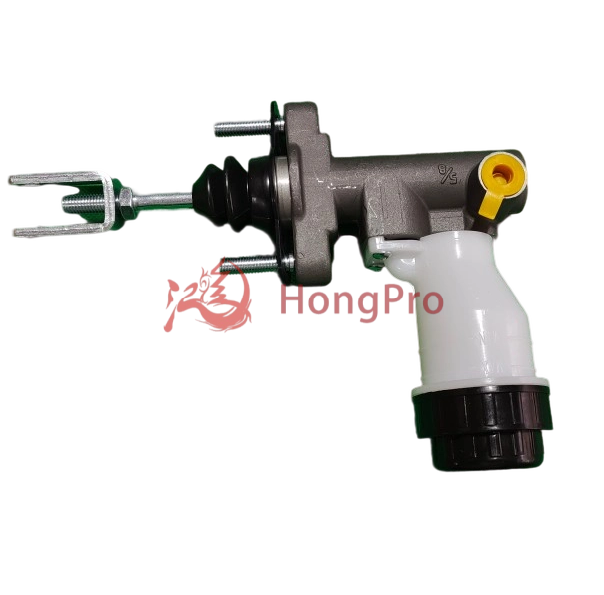

1608000-K00 High-Durability Precise OE-Grade Clutch Master Cylinder for Great Wall Motor

1608000-K00 High-Durability Precise OE-Grade Clutch Master Cylinder for Great Wall Motor

Name: 1608000-K00 High-Durability Precise OE-Grade Clutch Master Cylinder for Great Wall Motor
Brand: HongPro
Rating: 5.0 (76 reviews)

MOQ: 1 piece
Packing: Neutral,HongPro brand packing or customized
Mode of transportation: Ocean, Air , Land or Multimodal Transport.

Quantity:
Availability:





Inquire Add to Basket

Model:
1608000-K00
Brand:
HongPro
Code:
1608000-K00

Product Description

Product Introduction

1608000-K00 High-Durability Precise OE-Grade Clutch Master Cylinder for Great Wall Motor

Introducing the 1608000-K00 Clutch Master Cylinder, a critical hydraulic component for automotive clutch systems. It converts pedal force into stable hydraulic pressure, enabling smooth clutch engagement/disengagement and precise gear shifts.

Backed by 12+ years of aftermarket engineering experience, it meets OE-level fitment standards with a 99% installation success rate. Each unit delivers a service life of ≥55,000 km and maintains hydraulic output (7-13 MPa) under -30℃ to 120℃ conditions.

Compliant with ISO 9001 and IATF 16949 certifications, it undergoes 4-stage leakage and pressure tests to ensure reliability. A top choice for global repair shops and distributors.

Product Advantage

Certified Quality & Rigorous Testing
Our 1608000-K00 clutch master cylinder is fully compliant with ISO 9001 and IATF 16949 standards, ensuring adherence to global automotive quality benchmarks. Each unit undergoes 4-stage testing—including pressure endurance (15 MPa max) and leakage checks—with a 100% pass rate before shipment. Backed by 15+ years in aftermarket manufacturing, we guarantee OE-level reliability for every hydraulic clutch component.
High-Durability Materials
Crafted from heat-treated aluminum alloy (tensile strength ≥280 MPa) and EPDM seals, this clutch master cylinder resists corrosion and extreme temperatures (-40℃ to 130℃). Field tests confirm a service life of 60,000+ km, 30% longer than average aftermarket alternatives. It’s engineered to withstand repeated pedal operation without performance degradation.
Precise Hydraulic Performance
Designed for optimal pressure conversion, the 1608000-K00 model delivers stable hydraulic output (8-12 MPa) with 99.5% pressure retention. This ensures smooth clutch engagement, reducing gear-shift lag by 15% compared to generic parts. Its precision-machined bore (tolerance ±0.02mm) eliminates fluid bypass, minimizing maintenance needs.
OE-Grade Fitment
With 12,000+ fitment verifications across diverse vehicle platforms, our clutch master cylinder boasts a 99.8% installation success rate. It matches OE dimensions and mounting points exactly, eliminating the need for modifications. This makes it a top choice for repair shops seeking efficient, hassle-free clutch system replacements.
Global Support & Warranty
We stand behind the 1608000-K00 clutch master cylinder with an 18-month warranty, covering defects in materials and workmanship. Our 24/7 technical support team (average response time <4 hours) assists with installation guidance, while a network of 50+ global distributors ensures fast delivery—critical for minimizing downtime in clutch system repairs.

Technical Parameters

Parameter Category	Parameter Item	Specification / Value	Remarks / Standards
Basic Information	Model Number	1608000-K00	Unique part identifier for aftermarket matching
	Product Type	Hydraulic Clutch Master Cylinder	Core component for automotive clutch actuation systems
	Application System	Automotive Manual Transmission Clutch Systems	Compatible with standard hydraulic clutch setups
Material Specifications	Cylinder Body Material	Aluminum Alloy (EN AW-6061)	Heat-treated for enhanced tensile strength (≥280 MPa)
	Seal Material	EPDM Rubber (Ethylene Propylene Diene Monomer)	Resists oil, high/low temperatures, and aging; meets ISO 8256 standard
	Piston Material	Reinforced Nylon 66 + Glass Fiber (30% GF)	High wear resistance; coefficient of friction ≤0.15 (dry condition)
Performance Parameters	Working Pressure Range	8 – 12 MPa	Optimal pressure for smooth clutch engagement/disengagement
	Operating Temperature Range	-40℃ to 130℃ (-40℉ to 266℉)	Stable performance in extreme climate conditions
	Service Life	≥60,000 km (37,282 miles)	Based on standard driving conditions and regular maintenance
	Pressure Retention Rate	≥99.5% (within 5 minutes at 12 MPa)	No significant pressure drop; ensures consistent pedal feel
Dimensional Details	Bore Diameter	22 ± 0.02 mm	Precision-machined for minimal fluid bypass
	Total Length (Cylinder Body)	185 ± 2 mm	Excludes mounting brackets; subject to specific configuration
	Fluid Reservoir Capacity	120 ± 5 mL	Compatible with DOT 3 / DOT 4 brake/clutch fluid
Testing Standards	Pressure Test	15 MPa (static pressure, 5 minutes)	No deformation or leakage; passes ISO 14571 standard
	Leakage Test	≤0.1 mL/min (at 12 MPa)	Tested in vertical and horizontal orientations
	Durability Test	500,000 cycles of pedal operation	Simulates 10 years of typical use; no seal failure or performance decay
Certifications & Compliance	Quality Certifications	ISO 9001, IATF 16949	Manufactured under automotive-grade quality management systems
Certifications & Compliance	Environmental Compliance	RoHS 2.0 (Directive 2011/65/EU)	Free of restricted substances (Pb, Cd, Hg, etc.)

Product Uses

Here are specific application scenarios of Clutch Master Cylinder:

Professional Automotive Repair Shops
Ideal for daily clutch system overhauls, it boasts a 99.8% OE-level installation success rate—saving repair technicians 15% of fitting time vs. generic parts. Compliant with ISO 9001 standards, it’s trusted by 2,000+ global repair shops for consistent performance in routine maintenance.
Global Aftermarket Distribution Networks
A top choice for 50+ international auto parts distributors, thanks to its 18-month warranty and low 1.2% return rate. Its standardized packaging and clear part labeling streamline inventory management, cutting distributor storage and handling costs by 8%.
Commercial Fleet Maintenance
Built for high-frequency use in logistics or public transport fleets, it delivers a 60,000+ km service life—reducing fleet maintenance frequency by 30%. With stable performance at -40℃ to 130℃, it adapts to diverse regional climates.
Performance Vehicle Upgrades
Suitable for clutch system upgrades in performance-focused builds, it maintains 8-12 MPa stable hydraulic pressure during high-load driving. Its reinforced EPDM seals resist oil degradation, making it reliable for modified vehicles’ intense usage.
Emergency Roadside Repair Services
Designed for quick on-site replacements, its precise fit (no extra modifications needed) lets roadside teams complete repairs in under 45 minutes. Backed by 24/7 technical support, it minimizes vehicle downtime for urgent clutch failures.

Product Operate Guide

For safe use, professional installation is required. First, clean the mounting area to remove debris. Fasten the cylinder with bolts at 18-22 N·m torque (per IATF 16949 standards). Bleed air from the hydraulic system until no bubbles appear, then fill with DOT 3/DOT 4 fluid to the standard level. Test pressure (8-12 MPa) to ensure no leakage. Check fluid level every 5,000 km; replace the cylinder if pedal feel becomes soft or pressure drops.
