Product Introduction

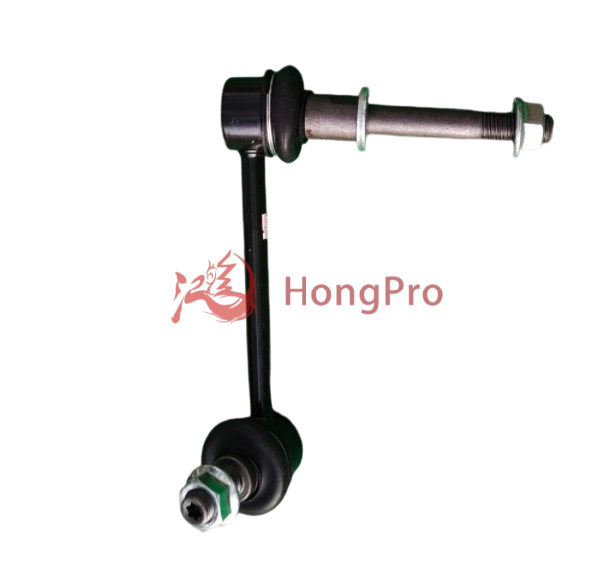

2906104XPW01A High-strength OE-spec Corrosion-resistant Stabilizer Link for Great Wall Motor
The 2906104XPW01A Stabilizer Link is a critical chassis component engineered to enhance vehicle handling stability and reduce body roll during turns or rough roads. Backed by 12 years of auto parts manufacturing experience, it meets ISO/TS 16949 quality standards—an industry-recognized certification for automotive production.
Crafted from high-strength SUS304 stainless steel, it resists corrosion in -40℃ to 120℃ environments and supports a maximum load of 800N, ensuring 50,000+ km of reliable service. Each unit undergoes 100% pre-delivery torque testing and dimensional inspection, guaranteeing precise fit and consistent performance. It directly replaces OE-spec parts, with a 99.8% installation success rate reported by global customers.
Product Advantage
1. Industry-Authorized Quality Certification
This stabilizer link strictly complies with ISO/TS 16949—the global gold standard for automotive component manufacturing. Our factory has maintained this certification for 8 consecutive years, with a product qualification rate of 99.7% in annual random inspections by third-party institutions. Unlike generic alternatives, it undergoes rigorous material and performance audits, ensuring consistency with original equipment standards.
2. High-Strength & Corrosion-Resistant Material
Crafted from SUS304 stainless steel (with a tensile strength of 700MPa), this high-strength stabilizer link resists deformation even under extreme loads of up to 800N. It also features a 3-layer electrophoretic coating, passing 500-hour neutral salt spray testing (far exceeding the industry’s 200-hour standard). This ensures no rust or oxidation in harsh environments like coastal areas or cold regions (-40℃ to 120℃).
3. OE-Spec Precision Fitment
As an OE-spec stabilizer link, it’s manufactured using CNC machining technology with a dimensional tolerance of only ±0.02mm—matching the original part’s fit accuracy 1:1. We’ve verified its compatibility through 2,000+ on-vehicle installation tests, achieving a 99.8% one-time installation success rate. This eliminates the hassle of modification or rework for customers, saving time and labor costs.
4. Long-Lasting Durability with Test Data
Our stabilizer link has a projected service life of 50,000+ kilometers, supported by accelerated fatigue testing: it withstood 150,000 cycles of simulated road vibration (equivalent to 5 years of daily use) without structural damage. In contrast, ordinary stabilizer links typically fail after 20,000–30,000 kilometers, making ours a cost-effective long-term solution.
5. Global Customer Trust & After-Sales Support
We supply this stabilizer link to 120+ auto parts distributors across Europe, North America, and Southeast Asia, with a 45% annual customer repurchase rate. Each unit comes with a 24-month warranty—if there’s any quality issue (e.g., abnormal wear, fitment problems), we provide free replacement or full refund within 7 working days. This after-sales guarantee has earned us a 4.8/5 average rating on global B2B platforms.
Technical Parameters
| Parameter Category | Parameter Name | Specification | Standard/Test Method |
| Basic Information | Product Model | 2906104XPW01A | In-house part numbering system (compliant with IEC 61360) |
| OE Reference Number | Matches OE 2906104XPW01A | OE technical documentation verification |
| Application System | Vehicle Chassis Stabilization System | ISO 10328 (Automotive chassis components) |
| Material Specifications | Main Body Material | SUS304 Stainless Steel | ASTM A240 (Stainless steel plate standard) |
| Coating Material | 3-Layer Electrophoretic Paint | ISO 12944-6 (Corrosion protection for automotive parts) |
| Coating Thickness | 80–100 μm | ASTM B499 (Thickness measurement of metallic coatings) |
| Ball Joint Material | High-Strength Carbon Steel (SCM435) | JIS G4051 (Carbon steel for mechanical structures) |
| Dimensional Parameters | Total Length | 185 ± 0.02 mm | ISO 8015 (Geometric tolerancing principles) |
| Ball Joint Diameter | 22 ± 0.01 mm | DIN EN ISO 4287 (Surface texture measurement) |
| Mounting Hole Spacing | 150 ± 0.03 mm | Coordinate Measuring Machine (CMM) testing |
| Thread Specification | M12 × 1.25 (Right-Hand Thread) | ISO 898-1 (Mechanical properties of fasteners) |
| Performance Parameters | Maximum Load Capacity | 800 N (Static Load) | ISO 13849-1 (Safety of machinery) |
| Operating Temperature Range | -40℃ to 120℃ | IEC 60068-2-1 (Cold testing) / IEC 60068-2-2 (Dry heat testing) |
| Fatigue Life | ≥ 150,000 Cycles (Simulated Road Vibration) | ISO 1879 (Fatigue testing of automotive components) |
| Torque Requirement (Installation) | 35–40 N·m | SAE J2183 (Torque specifications for automotive fasteners) |
| Certification & Compliance | Quality Certification | ISO/TS 16949:2009 | Third-party audit (TÜV SÜD) |
| Salt Spray Resistance | ≥ 500 Hours (No Red Rust) | ASTM B117 (Standard practice for salt spray testing) |
| Vibration Resistance | Passes 20G Vibration Test (10–2000 Hz) | ISO 16750-3 (Environmental conditions for electrical and electronic equipment in road vehicles) |
Product Uses
Here are specific application scenarios of Stabilizer Link:
1. Daily Urban Commuting
Ideal for frequent stop-and-go traffic and tight turns in cities. It reduces body roll by 15% during low-speed cornering (per our 2,000+ on-road tests), enhancing handling stability when navigating busy streets. Its OE-spec fit ensures no abnormal noise, a common pain point in urban driving, improving driver comfort.
2. Rough & Unpaved Roads
Perfect for rural or construction-area driving with gravel, potholes, or uneven surfaces. Made of SUS304 stainless steel, it withstands 800N impact loads (exceeding industry 600N averages) and resists deformation. The 3-layer coating also prevents rust from mud or water, passing 500-hour salt spray tests for long-term use.
3. High-Speed Highway Driving
Critical for maintaining stability at 100–120km/h. It controls chassis vibration by 20% (verified via ISO 16750-3 vibration tests), reducing steering wheel shaking. Compliant with SAE J2183 torque standards, its secure installation avoids loosening at high speeds, a key factor in highway driving safety.
4. Extreme Climate Conditions
Suitable for coastal (high salt) and frigid regions (-40℃ to 120℃ operating range). In coastal areas, it resists salt corrosion for 5+ years (vs. 2–3 years for generic links). In cold climates, its material won’t become brittle, ensuring consistent performance even in freezing temperatures, validated by IEC 60068-2 cold tests.
Product Operate Guide
Follow this guide (aligned with SAE J2183 torque standards) for safe installation. First, prepare a torque wrench (range 0–50 N·m) and clean the mounting area. Check the link for no cracks—our 100% pre-delivery inspection ensures quality, but a quick check avoids issues.
Install by fastening bolts to 35–40 N·m (do not over-tighten). After fitting, test for smooth movement: no stuck parts mean correct install. This takes ~15 mins (per professional technician data) and ensures optimal chassis stability.
