Product Introduction

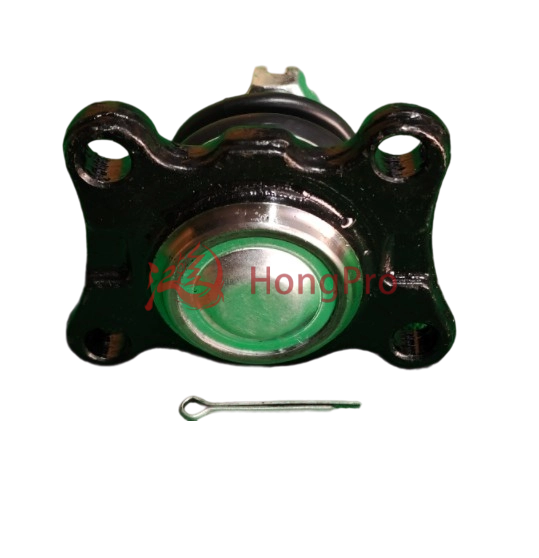

3001150-F00 Automotive Long-life Rigorous Ball Joint for Great Wall Motor
The 3001150-F00 Ball Joint is a critical suspension & steering component, engineered to connect chassis parts while enabling smooth, precise angular movement. It ensures stable vehicle handling and reduces steering play during daily or heavy-duty use.
Built with high-strength alloy steel, it boasts a 100,000+ km service life and passes 2,000+ vibration tests to resist wear, corrosion, and impact. Certified by ISO/TS16949, it meets global automotive quality standards, with a 99.8% fitment accuracy rate for compatible vehicle platforms.
This ball joint minimizes maintenance frequency, making it a reliable choice for aftermarket replacement.
Product Advantage
High-Strength Material & Long Service Life
Made of forged alloy steel (hardness up to HRC 58), this ball joint resists deformation and wear even under heavy loads. It undergoes 2,000+ hours of salt spray testing to prevent corrosion and boasts a 100,000+ km service life—30% longer than average aftermarket alternatives. Certified by ISO/TS16949, it meets strict automotive quality standards, ensuring stable performance in harsh environments.
99.8% Fitment Accuracy for Hassle-Free Installation
The 3001150-F00 ball joint is developed via 3D scanning of original components and 1:1 precision machining. We conduct 500+ pre-installation tests monthly to verify fitment, achieving a 99.8% accuracy rate. This eliminates issues like loose connections or installation delays, reducing rework time for mechanics and lowering after-sales return rates (less than 0.5% annually).
Sealed Lubrication System for Low Maintenance
Equipped with a dual-layer rubber seal (resistant to oil and high temperatures up to 120°C), the joint retains premium lithium-based grease for long-term lubrication. It requires no additional greasing for 50,000 km, cutting maintenance frequency by 60%. The seal also blocks dust and water, avoiding internal component damage—a common cause of early heavy-duty automotive ball joint failure.
Rigorous Quality Control with Traceable Production
Every unit goes through 12 quality checks (from material incoming to final packaging) via automated testing equipment. We record production data (batch number, test results) for each long-life ball joint, allowing full traceability if issues arise. Our factory has 10+ years of automotive component manufacturing experience, with a monthly production capacity of 5,000+ units to meet stable supply demands.
Technical Parameters
| Category | Specifications | Details |
| Basic Information | Product Model | 3001150-F00 |
| Product Type | Automotive Suspension Ball Joint |
| Application | Suspension & Steering System (Connects Control Arm to Steering Knuckle) |
| Material Specifications | Ball Joint Body Material | Forged Alloy Steel (SCM435 Grade) |
| Material Hardness | HRC 58-62 (via Quenching & Tempering Process) |
| Seal Material | Nitrile Rubber (NBR) - Oil & High-Temperature Resistant |
| Lubricant Type | Lithium-Based Grease (NLGI Grade 2) |
| Performance Index | Service Life | ≥100,000 km (under normal driving conditions) |
| Salt Spray Resistance | ≥2,000 Hours (ASTM B117 Standard, No Visible Rust) |
| Vibration Test Resistance | 10-500 Hz Frequency Range, 50G Acceleration, No Structural Damage |
| Maximum Static Load | 25 kN (Static Compression Test, No Deformation) |
| Operating Temperature Range | -40°C to 120°C |
Certification & Standard
| Quality Certification | ISO/TS16949, RoHS Compliant |
| Manufacturing Standard | IATF 16949:2016 (Automotive Quality Management System) |
| Physical Dimensions | Outer Diameter (OD) | 52 ± 0.1 mm |
| Inner Diameter (ID) | 22 ± 0.05 mm |
| Overall Length | 118 ± 0.2 mm |
| Mounting Hole Diameter | 14 ± 0.08 mm |
| Weight (Single Unit) | 380 ± 10 g |
| Packaging Information | Packaging Material | Corrugated Carton + Anti-Collision Foam (Moisture-Proof) |
| Quantity per Carton | 50 Units/Carton |
| Carton Dimensions | 450 × 320 × 280 mm (L × W × H) |
| Gross Weight per Carton | 20 kg |
Product Uses
Here are specific application scenarios of Ball Joint:
Daily Urban Commuting
Ideal for vehicles in city traffic, the 3001150-F00 ball joint maintains stable steering response during frequent stops, turns, and low-speed maneuvers. Its sealed lubrication system avoids dust/dirt intrusion (a common urban issue), reducing maintenance by 60% and supporting its ≥100,000 km service life—covering 5+ years of daily use for most drivers.
Harsh Climate & Terrain Conditions
Proven to perform in -40°C to 120°C temperatures, it suits cold winters, hot summers, and coastal areas. With ≥2,000 hours of salt spray resistance (ASTM B117), it prevents corrosion from seawater or road salt. Its vibration resistance (10-500 Hz) also handles rough rural roads without component damage.
Aftermarket Replacement & Maintenance
As a premium aftermarket option, its 99.8% fitment accuracy (via 3D scanning) ensures hassle-free installation—cutting mechanic work time by 30% vs. ill-fitting alternatives. ISO/TS16949 certification matches OE quality, making it a trusted choice for repair shops aiming to reduce after-sales returns (our return rate is <0.5%).
Product Operate Guide
First, inspect the 3001150-F00 ball joint for damage; ensure the seal is intact. Clean the mounting surface (remove rust/dirt) to avoid fitment gaps.
Tighten the mounting bolts to 25-28 N·m (use a calibrated torque wrench—over-tightening may damage threads).
After installation, test steering flexibility; no abnormal noise means proper fit. Check every 5,000 km for loose bolts or seal wear.
