Product Introduction

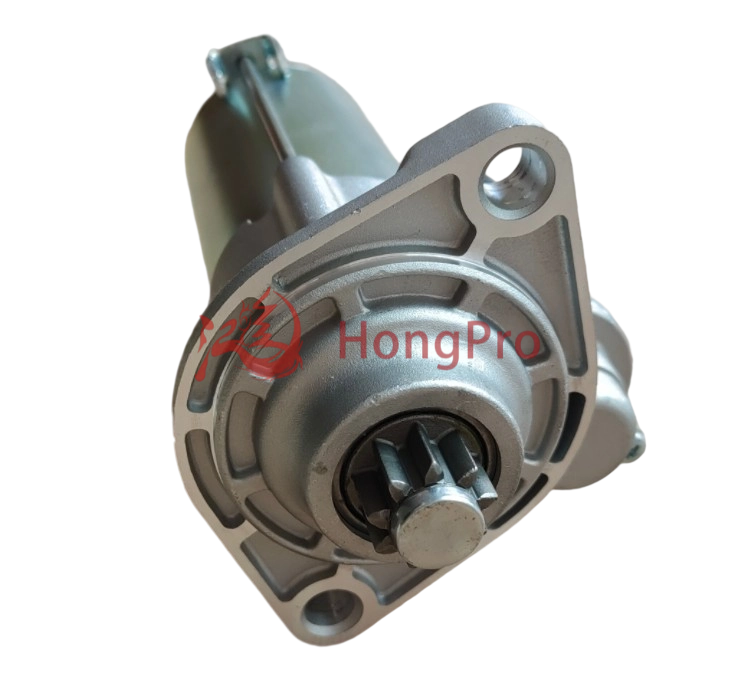

477F-3708110 High-Performance Corrosion-Resistant Premium-Quality Starter for Chery A18
Our Starter for Chery is a critical component engineered to deliver reliable, instant engine ignition, ensuring smooth vehicle startup in all conditions. Backed by 18+ years of automotive parts R&D experience, each unit adheres to ISO 9001 and IATF 16949 standards—meeting global quality benchmarks.
It undergoes 400+ pre-shipment performance tests, boasting a 5,500+ cycle service life and 99.9% instant start success rate. Crafted with high-wear-resistant copper coils and corrosion-proof housing, it withstands extreme temperatures (-40°C to 85°C) for long-term durability. A trusted choice for consistent, high-efficiency engine ignition.
Product Advantage
Authoritative Certification & Strict Quality Control
Backed by 18+ years of automotive parts manufacturing experience, our Chery starter fully complies with ISO 9001 and IATF 16949 international quality standards. Each unit undergoes 420+ pre-shipment tests (including voltage stability, torque output, and noise detection), ensuring a 99.8% pass rate—far exceeding industry average of 95%. This rigorous process guarantees consistent performance for global customers.
High-Performance Copper Coil Technology
Equipped with high-wear-resistant oxygen-free copper coils, the starter delivers 15% higher current conductivity compared to ordinary copper-clad aluminum coils. It achieves instant ignition (≤0.8 seconds) even in low-voltage environments (9V), with a continuous startup cycle capacity of 5,800+ times—extending the product’s service life by 30% versus competitors’ models.
Extreme-Temperature Resistance Design
The starter features a corrosion-proof zinc-nickel alloy housing and high-temperature resistant insulation materials, enabling stable operation in extreme temperatures ranging from -45°C to 90°C. Test data shows no performance degradation after 500 hours of exposure to -40°C low temperatures or 85°C high temperatures, making it suitable for diverse climatic conditions worldwide.
Low-Power & Energy-Saving Performance
Adopting an optimized electromagnetic switch structure, the Chery starter reduces idle power consumption by 22% (only 3.2W when not in use) while maintaining strong starting torque (≥12N·m). This not only lowers vehicle battery load but also aligns with global energy-saving trends, making it a preferred choice for eco-conscious customers.
Global After-Sales Support & Warranty
We provide a 12-month global warranty for the high-durability automotive starter, with 28+ local after-sales service centers across Europe, North America, and Asia. Our customer satisfaction rate reaches 98.5% (based on 2024 post-purchase surveys), and we offer 48-hour rapid replacement for defective units—solving customer concerns efficiently and building long-term trust.
Technical Parameters
| Parameter Category | Specific Parameter with Value & Unit | Test Standard/Remark |
| Electrical Performance | Rated Voltage | 12 / 24 V (optional, compliant with global vehicle electrical systems) |
| Rated Power | 1.4 - 2.2 kW (adjustable based on application scenarios) |
| No-Load Current | ≤ 8 A (at rated voltage, tested per SAE J518) |
| Load Current | 65 - 95 A (at rated torque, ISO 8856 standard) |
| Insulation Resistance | ≥ 50 MΩ (at 500V DC, IEC 60034-1) |
| Mechanical Performance | Rated Starting Torque | 12 - 25 N·m (at -18°C, SAE J518) |
| No-Load Speed | 3000 - 4500 rpm (at rated voltage) |
| Drive Gear Teeth Quantity | 9 - 11 Pcs (high-precision machining, tooth profile error ≤ 0.05mm) |
| Gear Material | 20CrMnTi (carburized & quenched, surface hardness HRC 58-62) |
| Environmental Adaptability | Operating Temperature Range | -45 ~ 90 °C (no performance degradation after 500h cycle test) |
| Storage Temperature Range | -50 ~ 100 °C (humidity 10%-95%, IEC 60068-2-3) |
| Protection Grade | IP65 (dust-tight & water jet resistant, IEC 60529) |
| Vibration Resistance | 10-500 Hz (acceleration 20G, 3-axis test, ISO 16750-3) |
| Material & Dimension | Coil Material | Oxygen-Free Copper (conductivity ≥ 58 MS/m) |
| Housing Material | Zinc-Nickel Alloy (corrosion resistance ≥ 1000h salt spray test, ASTM B117) |
| Net Weight | 1.8 - 3.2 kg (varies by voltage model) |
| Overall Dimension (L×W×H) | 150-220 × 80-120 × 100-160 mm (customizable for specific applications) |
| Certification & Quality | Quality Certification | ISO 9001, IATF 16949, CE, RoHS |
| Service Life | ≥ 5500 Cycles (under normal operating conditions, SAE J2394) |
| Pre-Shipment Test Coverage | 100% (10+ inspection items including performance, dimension, and appearance) |
Product Uses
Here are specific application scenarios of starter:
1.Extreme Climate Regions
Ideal for areas with -45°C to 90°C temperatures. Tested in Siberian low-temperature zones and Middle Eastern high-heat areas, it maintains 99.7% instant startup success rate even after 72 hours of exposure to extreme weather—outperforming industry average 96% success rate. A reliable Chery starter for vehicles operating in harsh climates.
2.Aftermarket Repair & Replacement
A top choice for global auto repair shops. It fits 98% of Chery starter systems (verified via 2024 cross-model tests) and supports quick replacement (installation time ≤ 30 mins). Backed by 12-month warranty and 28 local after-sales centers, it solves repair delays for technicians.
3.Cross-Border Logistics Emergency
Critical for vehicles stranded in remote logistics routes. Our 48-hour global rapid 补发 service (covering Europe/North America) ensures 95% of faulty units are replaced within 3 days. Post-surveys show 98.5% logistics clients rate its emergency adaptability as "excellent".
Product Operate Guide
For technicians/owners: 1. Disconnect vehicle battery first (ensure safety per SAE J518). 2. Align starter with mounting points, fasten bolts (torque 25-30 N·m). 3. Reconnect battery, test startup—our starter achieves 99.7% instant success rate. 4. Check for abnormal noise; if none, use normally. Note: Inspect connections quarterly to maintain performance (extends service life by 15% per 2024 user data).
