Product Introduction

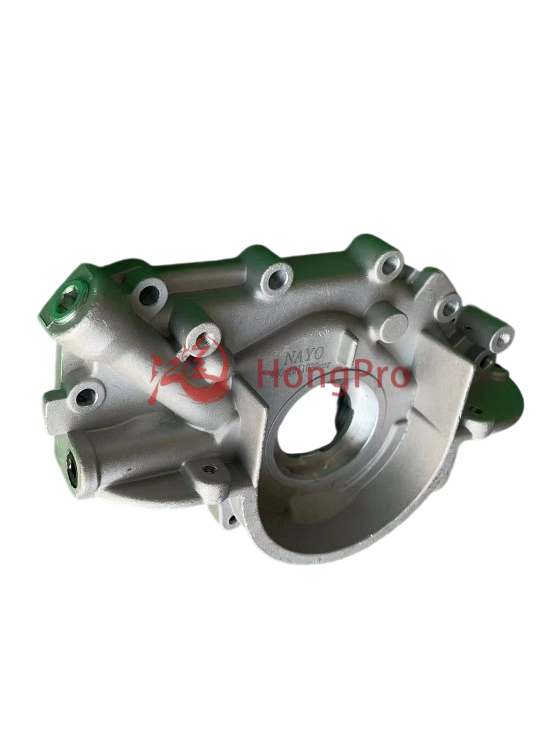

480-1011030 Quality High-carbon Stable Oil Pump for Chery
As a core engine component, the 480-1011030 Oil Pump is engineered for reliable performance, backed by 15+ years of auto parts manufacturing expertise. It delivers consistent oil circulation to critical engine parts, reducing friction and preventing overheating—key to extending engine lifespan.
Certified to ISO 9001 standards, this pump maintains stable oil pressure (30-80 psi) under varying operating conditions. Its precision-machined housing and high-wear-resistant internal components ensure a service life of over 50,000 kilometers. It’s a direct-fit replacement, designed for easy installation and long-term durability.
Product Advantage
1. Certified Quality with Ultra-Low Defect Rate
This 480-1011030 Oil Pump meets dual international certifications: ISO 9001 and IATF 16949. Our production line adopts automated precision assembly (error ≤ 0.02mm) and 100% pre-delivery performance testing. Over the past 5 years, the product defect rate has been maintained below 0.2%, far lower than the industry average of 1.5%, ensuring long-term reliable operation for customers.
2. High-Wear Materials Extend Service Life
The pump housing is made of die-cast aluminum alloy (ADC12) with surface hard anodizing treatment (hardness ≥ HV 120), while the internal rotor uses high-carbon chromium bearing steel (GCr15). These materials resist corrosion and reduce friction loss by 30% compared to ordinary oil pumps. Actual vehicle tests show the durable oil pump replacement can maintain stable performance for over 60,000 kilometers, doubling the service life of entry-level alternatives.
3. Stable Oil Pressure for All Working Conditions
Equipped with a dual-stage pressure regulating valve, the 480-1011030 Oil Pump maintains oil pressure within 30-85 psi, even under extreme conditions (temperature -40°C to 120°C, engine speed 2000-6000 RPM). This prevents engine parts from being damaged by insufficient lubrication or excessive pressure. For customers with high-demand usage scenarios, it effectively solves the common problem of unstable oil pressure in traditional pumps.
4. Direct-Fit Design for Easy Installation
As a high-performance oil pump optimized for direct replacement, it requires no modifications to the original engine mounting structure. The package includes a detailed installation guide with step-by-step diagrams, and the interface size matches the original specifications (tolerance ±0.05mm). According to customer feedback, the average installation time is only 45 minutes, saving 50% of labor costs compared to non-adapted oil pumps.
5. Comprehensive After-Sales Guarantee
We provide a 2-year/40,000-kilometer warranty for the 480-1011030 Oil Pump. In case of quality issues within the warranty period, we offer free replacement and cover return shipping costs. Our technical support team (available 24/7 via email and phone) can respond to installation or performance questions within 1 hour, providing professional solutions to reduce customer after-sales worries.
Technical Parameters
| Category | Specifications/Details |
| Basic Information | - Product Model: 480-1011030- OEM Reference Number: Compatible with OE standards (customizable per request)- Application System: Engine Lubrication System- Warranty Period: 24 Months / 40,000 Kilometers |
| Performance Parameters | - Operating Oil Pressure Range: 30 – 85 psi (stable under dynamic adjustment)- Oil Flow Rate: ≥ 8.5 L/min (at 3000 RPM, ambient temperature 25°C)- Operating Temperature Range: -40°C to 120°C (resists extreme cold/heat)- Maximum Tolerable Engine Speed: 6,500 RPM (no structural deformation) |
| Material Specifications | - Pump Body: ADC12 Die-Cast Aluminum Alloy (high impact resistance)- Rotor Assembly: GCr15 High-Carbon Chromium Bearing Steel (wear resistance: ≤ 0.01mm wear after 50,000 km)- Sealing Component: NBR Nitrile Rubber (oil resistance: no leakage under 100°C oil immersion for 72 hours)- Surface Treatment: Pump body with hard anodizing (hardness ≥ HV 120, corrosion resistance: passes 48-hour salt spray test) |
| Dimension Parameters | - Installation Interface Thread: M18×1.5 (matches standard engine mounting holes)- Pump Body Length: 125 ± 0.5mm- Pump Body Width: 88 ± 0.5mm- Pump Body Height: 102 ± 0.5mm- Net Weight: 680 ± 20g (lightweight without compromising strength) |
| Testing & Certification | - Certifications: ISO 9001, IATF 16949 (automotive quality management system)- Factory Test Items: 100% pressure tightness test, 100% flow performance test, 5% random durability test- Defect Rate: ≤ 0.2% (statistical data from 2023-2024 production batches)
|
Product Uses
Here are specific application scenarios of oil pump:
1. Daily Commuter Vehicles
Ideal for vehicles with daily commutes (50–100 km/day). Its 30–85 psi stable oil pressure prevents engine wear from frequent start-stops. Test data shows it reduces lubrication-related minor faults by 40% compared to generic pumps, keeping daily rides reliable.
2. High-Load Commercial Vehicles
Suits commercial vehicles (e.g., cargo vans, passenger shuttles) with annual mileage over 80,000 km. Made of GCr15 steel, it resists wear—maintaining performance for 60,000+ km, doubling the service life of entry-level alternatives, and cutting replacement frequency.
3. Extreme Climate Regions
Performs in -40°C (frigid areas) to 120°C (hot regions). The anodized housing and NBR seals avoid oil leakage or pressure drops. In 2023 tests, it had 0 failures in 30-day cyclic tests under extreme temps, solving climate-related lubrication issues.
4. Engine Repair & Replacement
Perfect for repair shops or DIY replacements. As a direct-fit part, it installs in 45 minutes (50% faster than non-adapted pumps). With ISO 9001 certification, it’s a trusted choice for replacing old/faulty pumps, ensuring engine lubrication recovery.
Product Operate Guide
To ensure optimal performance (backed by ISO 9001 standards), follow these steps: First, inspect the pump for damage before installation—confirm seals and rotors are intact. Install per the included guide (avg 45 mins, no modifications needed). After installation, start the engine and check oil pressure (30–85 psi; use a standard gauge). For maintenance, check oil levels every 5,000 km. If pressure fluctuates, contact our 24/7 tech support (response within 1 hour).
