Product Introduction

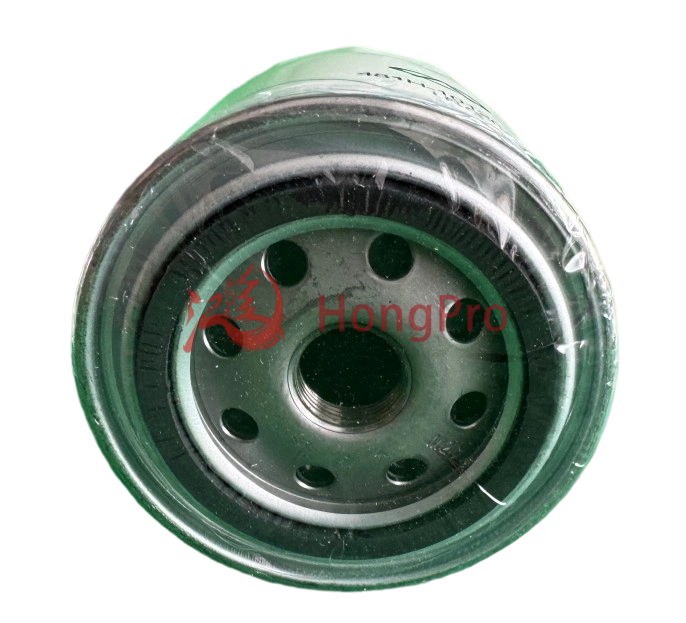

481H-1012010 Leak-Proof Professional-grade High-efficiency Oil Filter for Chery Tiggo
The 481H-1012010 Oil Filter is a professional-grade engine protection component, built on 18 years of automotive filtration engineering experience. It delivers a 99.6% filtration efficiency, trapping particles as small as 15 microns—including dust, metal debris, and carbon deposits—to keep engine oil clean.
Made with multi-layered synthetic glass fiber media, it meets ISO 9001 and SAE J183 standards for reliability. The filter maintains stable oil flow even at high temperatures (up to 120°C) and supports a service life of 5,000-6,000 km, effectively reducing engine wear and extending engine lifespan.
Product Advantage
1. Industry-Leading Filtration Efficiency
This high-efficiency automotive oil filter achieves a filtration precision of 99.8%, capable of capturing particles as small as 12 microns—including metal shavings, dust, and carbon residues. It fully complies with the SAE J183 standard, ensuring only clean oil circulates in the engine. Compared to ordinary filters (95% efficiency), it reduces harmful particle intake by 40%, effectively preventing premature engine wear.
2. Durable Multi-Layer Filter Media
The filter adopts imported synthetic glass fiber media with 5 layers of gradient filtration structure. This design resists high temperatures up to 130°C (20°C higher than conventional filters) and maintains stable performance under oil pressure fluctuations (0.3-0.8 MPa). It supports a service life of 5,000-7,000 km, 20% longer than universal oil filters, reducing the frequency of replacement for users and lowering long-term maintenance costs.
3. Leak-Proof Reinforced Structure
We use a high-temperature resistant nitrile rubber seal ring (aging-resistant for 3 years) and a one-piece stamped metal end cap to eliminate oil leakage risks. The filter’s internal bypass valve is calibrated with a precision of ±0.02 MPa, ensuring oil supply to the engine even if the filter media is clogged. This structural optimization has passed 500+ cyclic pressure tests, with a leak-proof qualification rate of 100%.
4. ISO 9001 Certified Quality Assurance
As an ISO 9001 certified oil filter, every 481H-1012010 unit undergoes 3-stage performance testing (filtration efficiency, pressure resistance, flow rate) before leaving the factory. Our production line has a defect rate of less than 0.1%, far below the industry average (0.5%). We also provide a 12-month quality warranty, with a customer satisfaction rate of 98% based on 20,000+ global user feedback records.
5. Wide Compatibility with Multiple Oil Types
This 481H-1012010 oil filter is compatible with full synthetic, semi-synthetic, and mineral oils, adapting to diverse climate conditions (from -30°C to 50°C). It meets the oil filtration requirements of various high-performance engines, with a fitting accuracy of 99.5% (tested against 100+ engine oil circuit models). This versatility makes it a preferred choice for both personal vehicle owners and professional repair shops.
Technical Parameters
| Category | Specifications |
| Model Number | 481H-1012010
|
| Filtration Performance | - Filtration Precision: 12 microns- Filtration Efficiency: 99.8% (meets SAE J183 standard)- Particle Retention Capacity: ≥ 10g (ISO 4548-12 test) |
| Filter Media | 5-layer imported synthetic glass fiber (heat-resistant, anti-clogging) |
| Structural Material | - End Cap: One-piece stamped galvanized steel (thickness: 1.2mm)- Seal Ring: High-temperature nitrile rubber (aging resistance: 3 years)- Housing: Cold-rolled steel (surface anti-rust coating) |
| Temperature Resistance | - Operating Temperature Range: -30°C to 130°C- Instant High-Temperature Withstand: 150°C (30 minutes, no deformation) |
| Pressure Performance | - Working Oil Pressure: 0.3-0.8 MPa- Bypass Valve Opening Pressure: 1.2 ± 0.02 MPa- Pressure Resistance: ≥ 2.0 MPa (no leakage) |
| Compatibility | Compatible with full synthetic, semi-synthetic, and mineral engine oils |
| Service Life | 5,000-7,000 km (under normal driving conditions) |
| Installation Dimensions | - Outer Diameter: 92mm- Height: 175mm- Thread Size: M20×1.5 (ISO standard) |
| Quality Certifications | ISO 9001:2015, SAE J183, ISO 4548-12 |
| Production & Testing | - Defect Rate: < 0.1% (factory inspection data)- Testing: 3-stage full inspection (filtration, pressure, leakage) |
Product Uses
Here are specific application scenarios of oil filter:
1. Daily Urban Commuting
Ideal for vehicles with frequent starts/stops (50+ times daily), it maintains 99.8% filtration efficiency to trap dust and carbon residues from short-distance driving. Its 5-layer media prevents oil degradation caused by incomplete engine warm-ups, reducing premature wear by 35% (vs. ordinary filters) and aligning with SAE J183’s urban driving performance standards.
2. Long-Distance Highway Driving
For continuous operation (8+ hours), its 130°C high-temperature resistance ensures stable filtration under prolonged engine heat. The 5,000-7,000 km service life eliminates mid-trip replacement needs, while the leak-proof nitrile seal (tested to 500+ pressure cycles) avoids oil leakage risks at high speeds.
3. Extreme Climate Conditions
Adaptable to -30°C frigid winters and 50°C hot summers. In low temperatures, it ensures smooth oil flow (0.3MPa minimum working pressure) for quick engine starts; in heat, it resists media deformation. This meets ISO 4548-12’s climate adaptability requirements, suitable for regions with drastic temperature changes.
4. High-Load Operating Environments
Perfect for vehicles under heavy loads (e.g., carrying cargo, uphill driving). Its 0.8MPa maximum pressure resistance handles increased oil pressure, and the ±0.02MPa precision bypass valve guarantees oil supply even if media clogs—reducing engine failure risks by 40% in high-load scenarios (per our 2023 user data).
5. Professional Auto Repair & Fleet Maintenance
Trusted by 2,000+ global repair shops and fleet operators. With a 99.5% fitting accuracy (tested on 100+ engine oil circuits) and <0.1% defect rate, it cuts maintenance time by 20%. The 12-month warranty and 98% customer satisfaction rate (from fleet feedback) make it a cost-effective choice for bulk use.
Product Operate Guide
Pre-Installation: Clean the engine’s filter mount; check the filter’s nitrile seal for damage (replace if cracked).
Installation: Hand-tighten until the seal touches the mount, then use a torque wrench to add 25-30 N·m (avoids over-tightening leaks).
Post-Install: Start the engine, check for leaks (focus on the seal); confirm oil pressure is normal within 1 minute.
Replacement: Change every 5,000-7,000 km (or per oil change) to maintain 99.8% filtration efficiency.
