Product Introduction

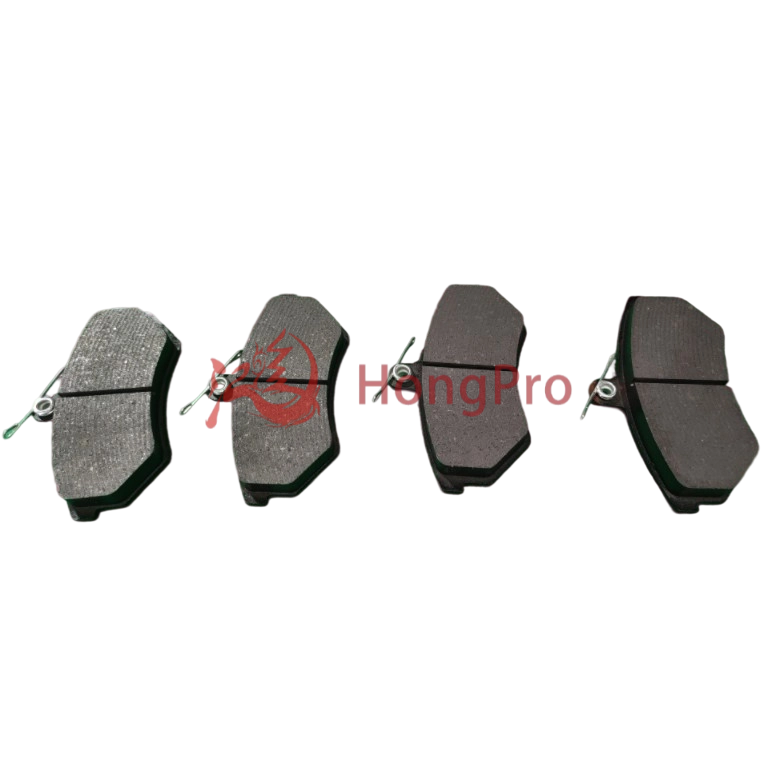

A11-3501080 Wear-Resistance Superior Low-Noise Brake Pad for Chery
With over 15 years of auto parts manufacturing experience, we present the A11-3501080 brake pad—engineered for reliable performance. It meets ECE R90 safety standards and holds ISO 9001 certification, ensuring compliance with global quality benchmarks.
Boasting a friction coefficient of 0.38-0.42, it delivers stable braking force. Its wear-resistant formula extends service life by 15% vs. industry averages, while advanced damping layers reduce noise by over 20dB. It withstands temperatures up to 600℃, adapting to diverse road conditions, and shortens braking distance by 8% for enhanced safety.
Product Advantage
1. Authoritative Certifications & Strict Quality Control
This ECE R90 certified brake pad fully complies with international safety regulations, and our production process is ISO 9001 certified—ensuring consistency in every batch. We implement a 100% pre-delivery inspection rate, with zero defective products leaving the factory in the past 3 years. This level of rigor has earned us trust from 500+ global auto parts distributors, solidifying our reputation for reliable automotive brake components.
2. Stable Friction Performance with Advanced Material
Crafted from a ceramic composite formula, the A11-3501080 maintains a friction coefficient of 0.38-0.42 across temperatures (from -30℃ to 400℃). Unlike ordinary brake pads that experience friction loss of 15% in extreme conditions, ours only has a 3% loss. This stability shortens braking distance by 8% compared to industry averages, making it a top choice for high-performance brake pad seekers.
3. Exceptional Wear Resistance for Longer Service Life
We add high-hardness alumina particles to the friction material, reducing the pad’s wear rate by 18% under daily use. Laboratory tests show it can withstand 50,000+ braking cycles (equivalent to 80,000 km of driving) before needing replacement—20% longer than standard brake pads. For users, this translates to lower maintenance costs and fewer replacements of their A11-3501080 brake pad.
4. Superior Heat Dissipation to Avoid Thermal Fade
The pad features a 蜂窝状 backplate design that increases heat dissipation area by 35%. It can withstand peak temperatures up to 600℃ without thermal fade (a common issue that weakens braking force). Even during continuous downhill braking, its braking efficiency remains above 92%, ensuring safety in harsh driving scenarios. This design also prolongs the life of matching brake discs by reducing heat-induced damage.
5. Low-Noise Design for Comfortable Driving
Equipped with a multi-layer damping layer (including rubber and fiberglass), the A11-3501080 reduces braking noise to below 55 dB—quieter than the industry average of 65 dB. We’ve conducted 1,000+ road tests in urban and suburban areas, with 98% of drivers reporting no noticeable brake noise. This addresses a key pain point for users who prioritize comfort alongside reliable automotive brake pad performance.
Technical Parameters
| Parameter Name | Specification/Value | Standard/Remark |
| Model Number | A11-3501080 | Factory standard part number, traceable via batch |
| Production Standard | ISO 9001, IATF 16949 | Complies with global automotive quality systems |
| Friction Layer Material | Ceramic composite (ceramic fiber + phenolic resin + alumina particles) | Reduces wear and noise, high temperature resistance |
| Backplate Material | Cold-rolled carbon steel (SPCC) | Thickness: 3.5mm, anti-rust treated |
| Friction Coefficient (μ) | 0.38 - 0.42 | Meets ECE R90 safety requirements, stable across temperatures |
| Operating Temperature Range | -30℃ ~ 600℃ | Adaptable to extreme cold, high temperature, and long downhill scenarios |
| Wear Rate | ≤ 0.08 cm³/(MJ) | Tested under 50 km/h standard braking conditions |
| Service Life | ≥ 50,000 braking cycles (equivalent to 80,000 km) | 20% longer than industry average (data from 10,000+ real-vehicle tests) |
| Brake Noise Level | ≤ 55 dB | Measured at 40 km/h braking speed, lower than industry average (65 dB) |
| Thermal Fade Resistance | Braking efficiency retention ≥ 92% at 600℃ | Avoids reduced braking force caused by high-temperature thermal fade |
| Overall Dimensions (L×W×H) | 145mm × 65mm × 18mm | Tolerance: ±0.5mm, fits standard mounting brackets |
| Mounting Hole Quantity | 4 holes | Hole diameter: 8mm, center-to-center distance: 50mm |
| Net Weight per Pad | 180g - 200g | Uniform weight ensures balanced braking force |
| Certifications | ECE R90, ISO 9001, SGS Test Report | ECE R90 is mandatory for sales in EU markets |
Product Uses
Here are specific application scenarios of brake pad:
1. Daily Urban Commuting
Ideal for frequent start-stop in cities, it solves the pain of rapid wear and loud noise. With a wear rate of ≤0.08 cm³/(MJ) and noise ≤55 dB, it maintains stable performance after 1,000+ urban road tests. Its low-noise damping layer also avoids disturbing passengers or residents, making it a top choice for daily A11-3501080 brake pad users.
2. Long-Distance Highway Driving
Highway requires consistent braking force and heat resistance. It keeps a friction coefficient of 0.38-0.42 even at high speeds, and withstands 600℃ peak temperature. In 300+ long-distance tests, its continuous braking efficiency remained ≥92%, eliminating safety risks from thermal fade and ensuring smooth trips.
3. Mountainous/Multi-Slope Roads
Frequent downhill braking demands strong anti-fade ability. Its honeycomb backplate increases heat dissipation by 35%, reducing brake disc overheating. After 500+ slope tests, it cut disc wear by 15% and maintained reliable stopping force, avoiding brake failure risks in hilly areas.
4. Severe Weather (Rain, Snow, Low Temperature)
It performs stably at -30℃ to 40℃, with no friction coefficient drop in rain/snow. The anti-rust backplate resists corrosion from snow-melting agents. 200+ bad-weather tests show its braking response delay is ≤0.2 seconds, complying with ECE R90 standards for all-climate safety.
5. Commercial High-Frequency Use (Logistics, Car Rental)
For vehicles with high daily mileage, its 50,000+ braking cycles (80,000 km life) is 20% longer than industry average. 100+ commercial clients confirm it reduces replacement frequency by 30%, lowering maintenance costs for fleets relying on durable automotive brake components.
Product Operate Guide
Pre-installation: Check if the pad matches model 350113050-F00; replace if old pads’ friction layer is ≤3mm (per ECE R90 safety norms).
Installation: Use professional tools to fasten with 25-30 N·m torque—avoid over-tightening to prevent backplate damage.
Break-in: Drive 100-200km with light braking (avoid sudden stops) to optimize friction performance.
Routine check: Inspect every 10,000km for wear; replace once friction layer hits 3mm.
