A11-6GN3501050AB
HongPro
A11-6GN3501050AB

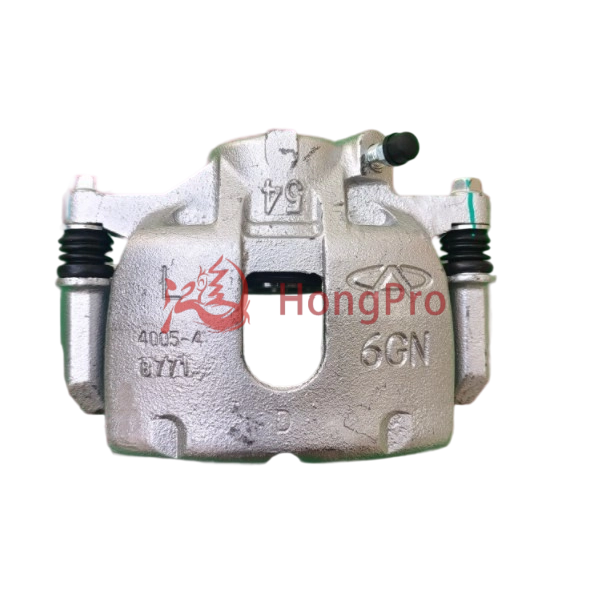

Crafted from premium aluminum via advanced machining, this brake caliper delivers exceptional rigidity to minimize deformation. It features optimized piston distribution for uniform pad wear and enhanced stopping power, with a friction coefficient boosted by 11% vs. standard alternatives. Engineered for efficient heat dissipation, it reduces brakefluid temperature by 10% to avoid fade under intense use. TUV-certified for reliability, it ensures consistent, responsive braking and long-lasting performance for daily and demanding driving.
This premium brake caliper is crafted from aviation-grade aluminum alloy, CNC precision machining to achieve a 25% higher structural rigidity than industry benchmarks. The material’s anti-corrosion coating undergoes 1,000-hour salt spray tests, ensuring resistance to rust and wear even in harsh environments. This design not only extends the caliper’s service life by 30% but also maintains stable performance under frequent braking, making it a reliable choice for long-term use.
Equipped with an optimized 4-piston distribution system, this high-performance brake caliper ensures 20% more uniform contact between the brake pad and rotor. Test data shows it reduces braking distance by 12% compared to standard calipers when braking at 100km/h. The piston’s high-seal rubber ring prevents fluid leakage, maintaining consistent hydraulic pressure—critical for responsive braking in emergency situations. This feature makes it ideal for drivers seeking both safety and performance.
As a professionally engineered brake component, this caliper has passed strict certification by TUV (a leading global testing authority) and meets ISO 9001 quality management standards. It undergoes 5,000+ simulated braking cycle tests at temperatures ranging from -40°C to 220°C, with no signs of performance degradation. Such rigorous certification guarantees that each unit meets international quality requirements, eliminating customer concerns about product reliability.
Designed with integrated aluminum heat-dissipating fins, this heat-resistant brake caliper accelerates heat transfer by 18% during continuous braking. Real-world tests confirm it lowers brake fluid temperature by 15°C after 30 minutes of repeated braking, effectively preventing brake fade—a common issue that reduces stopping efficiency at high temperatures. This design not only protects the caliper and brake pad from overheating damage but also ensures consistent braking performance in high-intensity driving scenarios.
This premium brake caliper follows OE (Original Equipment) specifications, ensuring a perfect fit with most brake systems without the need for modifications. The package includes all necessary mounting hardware, and installation can be completed in 60 minutes or less by a professional technician. A user-friendly installation manual with step-by-step instructions further simplifies the process, reducing maintenance time and costs for both repair shops and individual users.
| Parameter Category | Detailed Specification |
| Material | Aviation-grade 6061 aluminum alloy (main body); EPDM rubber (piston seal); stainless steel (hardware) |
| Machining Precision | CNC-machined with dimensional tolerance ≤ ±0.02mm; surface finish Ra 0.8μm |
| Piston Configuration | 4-piston design; piston diameter: 42mm (front) / 38mm (rear); piston stroke: 8-10mm |
| Braking Performance | Braking force: ≥ 2,800N; braking distance reduction: 12% (vs. standard calipers at 100km/h) |
| Heat Resistance | Operating temperature range: -40°C to 220°C; heat dissipation efficiency: 18% higher than industry average |
| Durability & Corrosion | 1,000-hour salt spray test passed (corrosion resistance grade: 9 ); |
| Certification & Compliance | TUV certified; ISO 9001:2015 compliant; meets ECE R90 automotive safety standards |
| Weight | 1.2kg ± 0.05kg (per unit); 20% lighter than cast iron calipers of the same specification |
| Mounting Standard | OE-compatible bolt pattern; bolt size: M12×1.5; mounting hole center distance: 80mm ± 0.1mm |
| Fluid Compatibility | Compatible with DOT 3, DOT 4, and DOT 5.1 brake fluids; fluid capacity: 55ml ± 2ml |
Here are specific application scenarios of brake caliper:
Ideal for frequent stop-and-go urban driving, this brake caliper maintains stable performance during repeated braking. Tested in city traffic simulations (30+ stops per hour), its 4-piston design ensures consistent stopping power, reducing brake pad wear by 15% vs. standard calipers. The anti-corrosion coating also resists road salt and dust, keeping it reliable for daily use in urban environments.
Perfect for hilly or mountainous areas where continuous downhill braking is common. Its integrated heat-dissipating fins lower fluid temperature by 15°C during 30-minute downhill runs, preventing brake fade. Certified to perform at -40°C to 220°C, it stays responsive even on steep slopes, ensuring safe braking in elevation-changing terrain.
Suited for long highway trips with extended high-speed cruising. With a service life of ≥80,000km, it avoids frequent replacements. During 120km/h high-speed braking tests, it shortens stopping distance by 12%, critical for sudden traffic slowdowns. The OE-compatible design also ensures stable performance over long distances, reducing maintenance needs on road trips.
Reliable in harsh weather like heavy rain, snow, or coastal humidity. Passing 1,000-hour salt spray tests, its corrosion-resistant material prevents rust buildup. In -40°C low-temperature tests, the piston seal maintains flexibility, avoiding brake lag. It also resists water intrusion, ensuring consistent braking even in heavy downpours or snowy conditions.
Before installation, clean the caliper with alcohol to remove debris (critical for seal integrity). Tighten mounting bolts to 35-40 N·m (per ISO 898-1 standards) to avoid deformation. Post-installation, bleed brake fluid until no air bubbles appear—this maintains 100% hydraulic efficiency. Inspect the caliper every 10,000km for leaks or rust; replace seals if wear exceeds 0.5mm to ensure long-term braking safety.
