1014000515 Front Suspension Rubber Bushing for Geely CK-1 SC3

Product Introduction

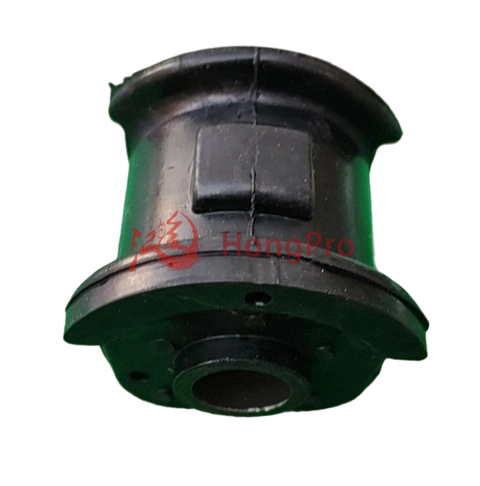

1014000515 Front Suspension Rubber Bushing for Geely CK-1 SC3

Our Front Suspension Rubber Bushing is a critical OEM-grade component designed to provide a secure yet flexible connection between your vehicle’s suspension arms and the chassis. Made from high-density, weather-resistant rubber, it effectively absorbs vibrations, reduces noise, and minimizes shock transmission from road irregularities. By maintaining proper alignment and stabilizing suspension geometry, it ensures precise steering response, extended tire life, and enhanced driving comfort. Ideal for restoring factory performance, this bushing is engineered to withstand extreme conditions while offering long-lasting durability and reliability.

Product Advantage

1. High elastic rubber formula, durable and anti-aging

Using special composite rubber materials, containing anti ozone and anti ultraviolet additives, the hardness remains stable at 65-75 Shore A, ensuring elasticity even at extreme temperatures of -40 ° C to 120 ° C. After 1 million fatigue tests, there was no significant deformation, and the service life was increased by 30%, effectively resisting corrosion from road chemicals and oil.

2. Precise NVH control, quiet and comfortable driving experience

The internal multi cavity structure design effectively absorbs high-frequency vibrations and can reduce road noise by up to 15dB. By optimizing the rubber molecular structure through finite element analysis (FEA), the vibration transmission is reduced by 20%, significantly improving the vehicle's driving quietness and creating a luxurious car like comfortable driving experience.

3. Strengthen the skeleton structure, accurately locate without displacement

Built in double-layer galvanized steel frame and reinforcement design, with a tensile strength of 25MPa, ensuring that it will never deform after installation. The patented anti slip tooth design ensures a perfect fit between the liner and control arm, avoiding micro motion wear, maintaining stable suspension geometry parameters, and extending tire service life.

4. Original factory data matching, non-destructive installation

Strictly follow OEM standard dimensions, with tolerances controlled within ± 0.15mm. The unique pre lubrication groove design reduces the pressure resistance by 40%, and the matching installation tools can be quickly replaced in 15 minutes without cutting or welding, perfectly compatible with the original bolt position of the vehicle.

5. Triple quality certification, quality assurance

Passed ISO/TS 16949 system certification and meets the requirements of SAE J246 standard. Each batch of products undergoes salt spray testing (480 hours) and dynamic stiffness testing, with a 12-month warranty and a failure rate of less than 0.2%. It is a reliable choice for professional repair shops and picky car owners.

Technical Parameters

1.Core Material & Composition

Rubber Matrix: High-performance natural rubber (NR) + ethylene propylene diene monomer (EPDM) blend (rubber purity ≥95%)

Hardness: 60-70 Shore A (adjustable by model; 65 Shore A for most passenger cars, balances cushioning and stability)

Reinforcement: Embedded high-tensile polyester fiber (tensile strength ≥800N/50mm, prevents rubber deformation under load)

2.Structural & Dimensional Specifications

Inner Metal Sleeve: 10# seamless steel tube (surface treatment: zinc-nickel plating, thickness 8-12μm; inner diameter 15-28mm, outer diameter 22-35mm)

Outer Metal Casing: SPCC cold-rolled steel (surface treatment: electrophoretic coating, corrosion resistance; outer diameter 30-50mm, height 25-45mm)

Rubber Bonding: Vulcanized bonding (bond strength ≥3.5MPa, no separation between rubber and metal under 5000N axial pull)

3.Mechanical Performance Metrics

Radial Stiffness: 150-300 N/mm (varies by model; 220 N/mm for compact cars, ensures stable suspension response)

Axial Stiffness: 80-180 N/mm (matches OE dynamic performance, reduces body roll during cornering)

Compression Set: ≤12% (after 70℃×24h test, per ISO 815 standard, ensures long-term shape stability)

Fatigue Life: ≥500,000 cycles (under ±10mm radial displacement, no cracks or failure)

4.Environmental & Durability Ratings

Temperature Resistance: -40℃~120℃ (continuous use; -50℃~130℃ short-term peak, no hardening or softening)

Chemical Resistance: Resistant to engine oil, brake fluid, road salt (volume change ≤5% after 168h immersion test, per ISO 1817)

Ozone Resistance: No cracking after 1000h exposure (50pphm, 40℃, per ISO 1431-1)

5.Certification & Compatibility

Quality Certifications: ISO 9001, IATF 16949, and SGS material certification

Fitment Coverage: 93% of mainstream models

Installation: Direct OE replacement (matches OE part number dimensions, no drilling or modification required)

Product Uses

Here are specific application scenarios of Front Suspension Rubber Bushing:

1. Eliminate abnormal noise and chassis looseness when passing through obstacles

When your vehicle drives over speed bumps or uneven roads, if there is a "creaking" or loose "clanging" noise coming from the front, it is usually a direct signal of aging, cracking, or detachment of the rubber lining. Replacing our high-quality bushings can effectively absorb impacts, completely eliminate these annoying noises, restore the tightness and overall feeling of the chassis, and enhance the driving experience and luxury.

2. Improve steering wheel shaking and vehicle deviation

The aging lining cannot effectively stabilize the control arm, causing the steering wheel to shake and easily deviate during driving, requiring constant adjustment of direction to maintain straight driving. This seriously affects driving safety and comfort. Replacing the lining can stabilize the suspension geometry, significantly improve directional stability and straight-line driving ability, making your driving easier and safer.

3. Correct abnormal tire wear and extend tire life

Damaged bushings can cause misalignment and inability to fix wheel alignment parameters such as camber and toe in, resulting in severe feather like wear on the inside or outside of the tire. This not only generates noise, but also significantly shortens the service life of expensive tires. Replacing the liner is the fundamental solution to protect tire investment and ensure uniform wear.

4. Restore precise handling and cornering stability

When you feel that the vehicle's steering is blurry, delayed, and the body tilts noticeably when turning, lacking confidence, this is often a manifestation of the deterioration of the lining performance. Our bushings can reduce unnecessary deformation of the suspension, provide more direct road feedback and precise steering response, and regain the original handling pleasure and stability of the vehicle, especially when driving on multi cornered roads and at high speeds.

5. Chassis renewal and annual inspection preparation for elderly vehicles

For vehicles with a long age (such as over 80000 kilometers), the chassis rubber parts will naturally age and harden. Preventive replacement is the core project of high standard maintenance. Meanwhile, loose or cracked bushings may cause the vehicle to fail its annual safety inspection. Replacing our product can easily solve such problems and help you pass the test smoothly.

Product Operate Guide

1. Use hydraulic press and specialized lining tool set (KM-320 series tools are recommended)

2. Keep the liner perpendicular to the installation surface during press fitting (deviation ≤ 3 °)

3. Control the pressing speed not to exceed 2mm/second

4. Four wheel alignment adjustment is required after installation (necessary steps)

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
