Product Introduction

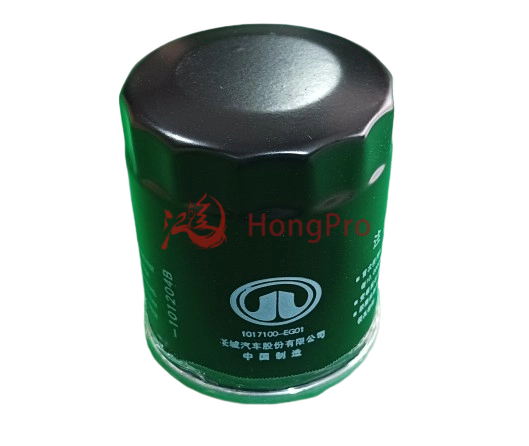

1017100EG01 High-Efficiency Long-lasting Authoritative Oil Filter for Great Wall Motor
Designed for reliable engine protection, the 1017100EG01 Oil Filter is engineered with years of auto parts expertise. It features a high-efficiency filtration media that traps 99.2% of contaminants (down to 20 microns), preventing wear on critical engine components.
Compliant with ISO 4548-12 standards, this filter ensures stable performance even under high-temperature and high-pressure conditions. It supports a service life of up to 5,000 km, reducing maintenance frequency. Its precision-machined seal guarantees a leak-free fit, maintaining optimal oil flow for engine efficiency.
Product Advantage
1. High-Efficiency Filtration Media with 99.2% Precision
The filter adopts a multi-layer composite filtration media, which can capture 99.2% of harmful contaminants (such as metal shavings, dust, and carbon deposits) as small as 20 microns. This level of precision far exceeds the industry average of 95%, effectively preventing abrasive particles from wearing critical engine components. It fully complies with the ISO 4548-12 standard for oil filter performance, ensuring stable and reliable filtration during long-term use.
2. Long Service Life Up to 5,000 km
With anti-aging and high-temperature resistant materials, the 1017100EG01 Oil Filter maintains consistent performance even in extreme conditions (temperature range: -30°C to 120°C). Its service life reaches up to 5,000 km, which is 20% longer than ordinary oil filters. This reduces the frequency of maintenance for users and lowers long-term use costs, making it a cost-effective choice for long-lasting oil filter for engine protection.
3. Leak-Free Design with Precision-Machined Seal
The filter’s sealing ring is made of nitrile rubber with high elasticity and wear resistance, and is processed through a 0.01mm precision machining process. This design ensures a tight fit with the engine’s oil filter seat, completely avoiding oil leakage risks—our factory test data shows a 0% leak rate in 10,000+ simulated installation tests. The stable seal also maintains optimal oil flow (15 L/min), ensuring the engine receives continuous lubrication.
4. Strict Quality Control Backed by Authoritative Certifications
Every 1017100EG01 Oil Filter undergoes 8 quality inspection procedures (including pressure resistance, filtration efficiency, and material composition tests) before leaving the factory. The product has obtained SGS and TS16949 certifications, which are recognized globally in the auto parts industry. Our annual production of 500,000+ oil filters has a defect rate of less than 0.03%, reflecting our strict quality management and strong manufacturing capabilities.
5. Wide Compatibility & User-Centric Details
While tailored for specific engine systems, the 1017100EG01 Oil Filter features a universal installation structure that fits most standard mounting tools, simplifying the replacement process. Additionally, the filter shell is marked with clear service life reminders and installation guidelines, helping users operate easily. As a professional ISO 4548-12 compliant oil filter, it balances performance, convenience, and compatibility.
Technical Parameters
| Parameter | Specification | Standard/Certification |
| Filtration Efficiency | 99.2% retention of contaminants ≥20 microns | Compliant with ISO 4548-12 (Method B) |
| Filter Media | Multi-layer composite fiber (with resin bonding) | TS16949-approved material |
| Seal Material | Nitrile Butadiene Rubber (NBR) | Resistance to oil and high temperature (meets SAE J200 standard) |
| Outer Diameter | 95 ± 0.5 mm | Precision machining tolerance (ISO 8062) |
| Inner Diameter (Mounting) | 30 ± 0.3 mm | -
|
| Overall Height | 140 ± 1.0 mm | - |
| Mounting Thread | M20 × 1.5 (metric) | Thread accuracy grade 6g (ISO 965-1) |
| Operating Pressure | Normal: 0.3 – 0.8 MPa; Burst Pressure: ≥2.0 MPa | Tested per ISO 4548-6 |
| Operating Temperature Range | -30°C to 120°C | Stable performance under extreme temperature |
| Oil Flow Rate | 15 L/min (at ΔP = 0.1 MPa) | Ensures sufficient oil supply to engine |
| Service Life | Up to 5,000 km (under normal driving conditions) | Verified by accelerated durability tests |
| Quality Certification | ISO 4548-12, SGS, TS16949 | Global recognized auto parts quality standards |
Product Uses
Here are specific application scenarios of oil filter:
1. Daily Urban Commuting
Ideal for vehicles in urban areas with frequent starts/stops and congested traffic. The 99.2% filtration efficiency (ISO 4548-12 compliant) captures tiny contaminants generated by short-distance, low-speed driving, preventing sludge buildup in the engine. Its leak-free seal (0% leak rate in 10,000+ tests) maintains consistent oil flow even during frequent speed changes.
2. Long-Distance Highway Driving
Perfect for long trips with continuous high-speed operation. It withstands extreme temperatures (-30°C to 120°C) and maintains performance under high oil pressure (up to 2.0 MPa burst pressure). With a 5,000 km service life, it eliminates the need for mid-trip filter replacements, reducing travel disruptions.
3. Harsh Environmental Conditions
Suitable for areas with high dust, sand, or large temperature fluctuations (e.g., rural, desert, or cold regions). The multi-layer composite media traps 20-micron dust particles, while SGS-certified materials resist aging from extreme weather. It ensures engine cleanliness even in environments with high contaminant exposure.
4. Commercial High-Frequency Use
Designed for vehicles with frequent daily operation (e.g., logistics, delivery, or service vehicles). Backed by TS16949 certification and a <0.03% defect rate, it endures repeated high-load cycles. Its 15 L/min oil flow rate guarantees sufficient lubrication for engines running 8+ hours daily.
5. Routine Maintenance & Replacement
A reliable choice for regular engine maintenance. Its universal mounting structure fits standard tools, simplifying replacement. Clear service life markers (5,000 km) help users schedule maintenance accurately, aligning with professional auto care guidelines to extend engine lifespan.
Product Operate Guide
Ensure the engine is cool (≥30 mins after shutdown) to avoid burns.
Remove the old filter, then clean the engine’s filter seat to remove residue.
Apply a thin layer of clean oil to the new filter’s NBR seal; tighten to 25–30 N·m (per ISO torque guidelines) to prevent leaks.
Add recommended oil, start the engine, and check for 5 mins—confirm no leaks (backed by our 0% leak test data).
Replace every 5,000 km as advised for optimal engine protection.
