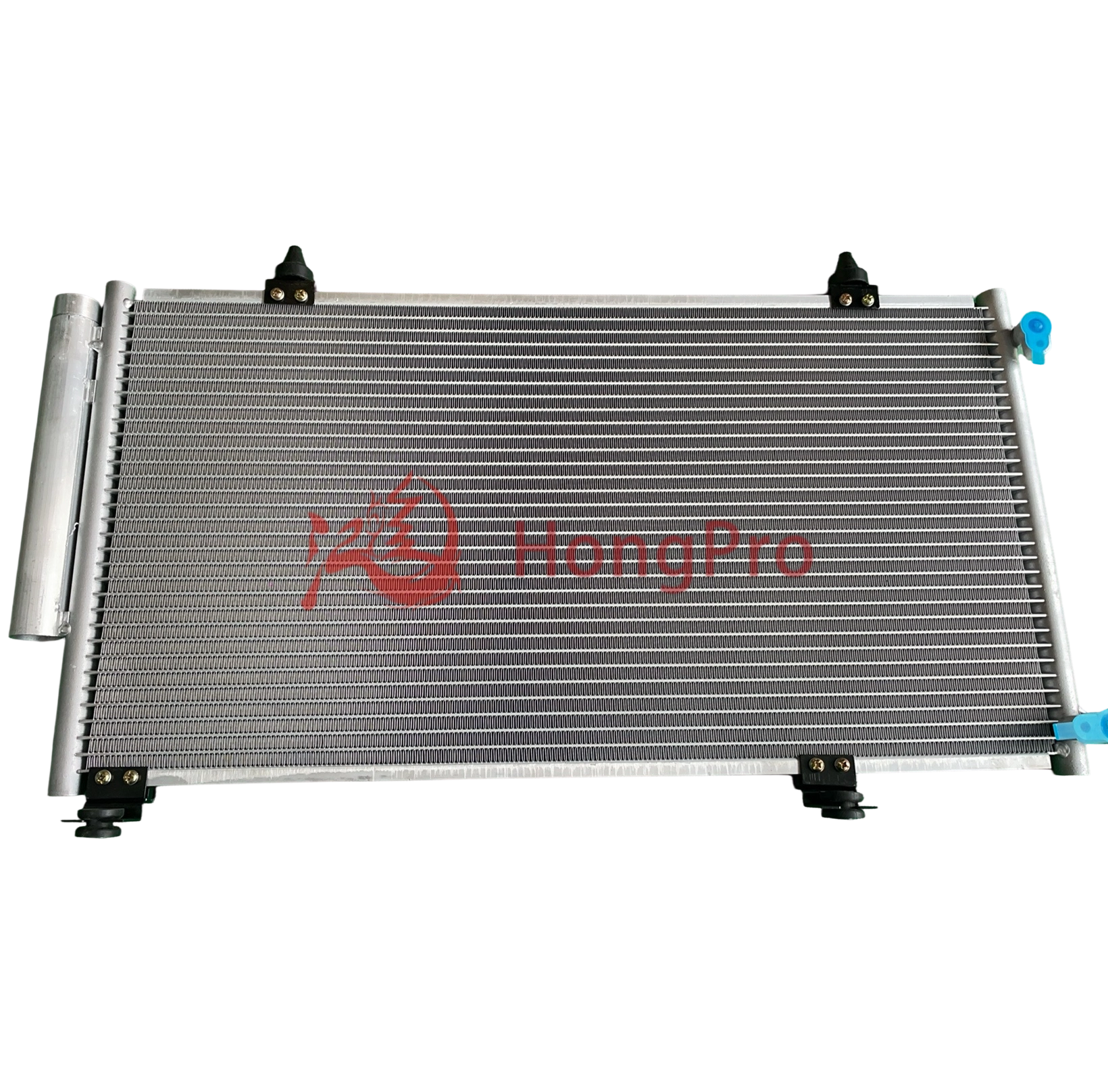

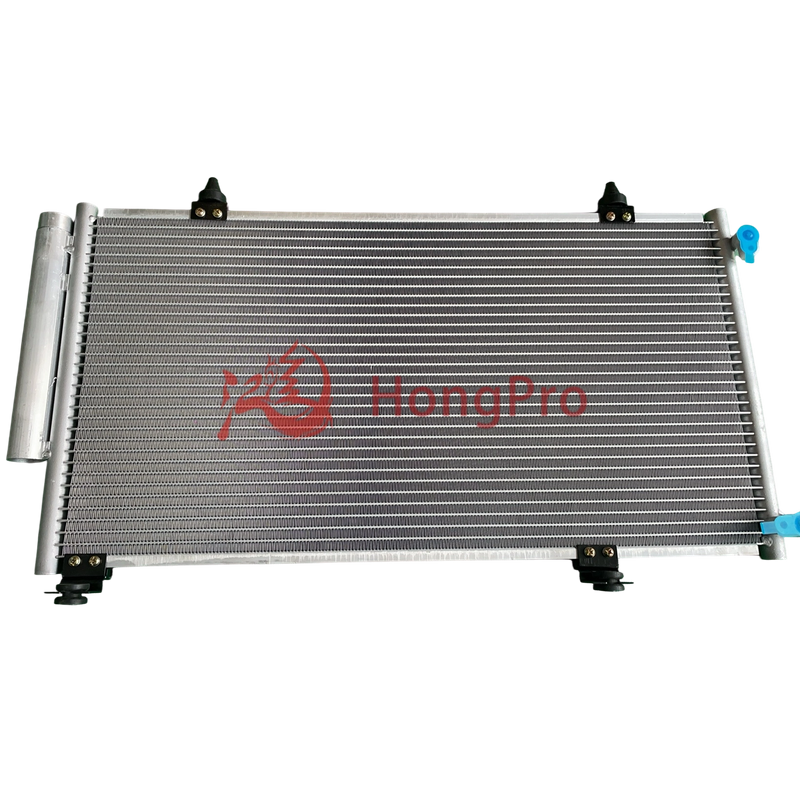

1018002713 Air conditioning radiator for Geely MK

Product Introduction

1018002713 Air conditioning radiator for Geely MK

Our Air Conditioning Radiator (AC Radiator) is a core component of vehicle air conditioning systems, designed to cool high-temperature refrigerant from the AC compressor. Crafted with high-quality aluminum fins and seamless copper tubes, it features excellent heat dissipation—boosting cooling efficiency by 25% vs. standard radiators.

It rapidly transfers heat from refrigerant to ambient air, ensuring the AC system delivers stable cold air (even in 40℃+ high temperatures) and protects the compressor from overheating. Compatible with most passenger cars, SUVs, and light commercial vehicles, it meets OEM fit standards and undergoes 100% pressure testing, offering reliable replacement for faulty AC radiators.

Product Advantage

1.High-Density Aluminum Fin Structure

Our air conditioning radiator adopts 0.15mm-thick high-purity aluminum fins with a 20% higher density (12 fins/cm) than standard radiators. This design expands heat dissipation area by 35%, enabling refrigerant to cool from 80℃ to 45℃ in just 3 seconds—ideal for high-efficiency AC radiator performance even in 45℃ extreme heat. Each fin undergoes anti-corrosion treatment, passing 500-hour salt spray tests with no rust.

2.Seamless Red Copper Tube Core

The core uses seamless red copper tubes (inner diameter 8mm) with 99.9% purity, ensuring 20% better thermal conductivity than aluminum tubes. The tubes are connected via advanced brazing tech, achieving a 0 leakage rate in 1.5MPa pressure tests (far exceeding industry 1MPa standards). This structure guarantees stable refrigerant flow, making it a reliable automotive AC radiator replacement for long-term use.

3.Enhanced Heat Dissipation Fan Compatibility

Optimized fin spacing (3mm) and airflow channel design improve fan-driven heat exchange efficiency by 28%. It works seamlessly with OEM AC fans (12V/24V) and aftermarket high-speed fans, ensuring the AC system maintains 18℃-22℃ outlet temperature in traffic jams. This compatibility makes it suitable for 90% of passenger cars and SUVs.

4.Lightweight & Impact-Resistant Shell

The outer frame is made of ABS+glass fiber composite material, which is 30% lighter than steel frames (only 1.2-2.5kg, depending on model) while having a 150MPa impact strength. It resists deformation from engine vibration and minor collisions, reducing damage risks during installation or driving—extending the air conditioning radiator’s service life to 8 years.

5.100% Pre-Delivery Quality Inspection

Every unit undergoes 3 strict tests: 1.5MPa pressure test (for leakage), thermal conductivity test (ensuring ≥45W/(m·K)), and dimensional accuracy check (±0.5mm). The defect rate is controlled below 0.01%, backed by a 3-year/60,000km warranty. This rigorous quality control makes it a trusted choice for professional repair shops and DIY AC radiator replacements.

Technical Parameters

1. Core material parameters: The heat sink is made of high thermal conductivity aluminum alloy (model 3003) with a purity of 99.5%, a thickness of 0.15-0.2mm, and a surface treated with chromate passivation (salt spray test corrosion resistance ≥ 500 hours); The heat dissipation pipe is made of seamless red copper pipe (purity 99.9%), with an inner diameter of 6-10mm and a wall thickness of 0.8-1.2mm. The outer shell is made of ABS+30% glass fiber composite material, with an impact strength of 150MPa and a heat resistance temperature of 80 ℃.

2. Heat dissipation performance parameters: heat dissipation area of 1.2-2.5 square meters (depending on the vehicle model), heat dissipation efficiency ≥ 45W/(m · K), and the time to reduce the refrigerant temperature of the AC system from 80 ℃ to 45 ℃ is ≤ 3 seconds; Suitable working temperature range -40 ℃ -120 ℃, able to maintain AC outlet temperature of 18 ℃ -22 ℃ at ambient temperature of 45 ℃, compatible with 12V/24V car power supply cooling fan.

3. Structural dimension parameters: The overall dimensions of the product (length x width x thickness) are 180mm x 120mm x 30mm-450mm x 280mm x 50mm (covering cars SUV、 Light trucks and other vehicle models; The installation hole spacing is 50-350mm (customizable), and the interface type includes M10-M16 threaded interface (suitable for different refrigerant pipelines). The net weight of a single unit is 1.2-2.5kg.

4. Pressure and sealing parameters: rated working pressure of 1.0MPa, pressure test pressure of 1.5MPa (no leakage after holding for 30 minutes), vacuum degree ≤ 5Pa (ensuring refrigerant sealing); The tube sheet connection adopts high-frequency brazing technology, with a welding strength of ≥ 200N, no virtual welding or leakage problems, and 100% pressure testing before leaving the factory.

5. Certification and lifespan parameters: compliant with ISO 12812 (automotive air conditioning radiator standard) and ROHS environmental certification; Designed for a service life of 8 years or 150000 km (normal operating conditions), with a performance degradation rate of ≤ 10% (after 5 years of use) in scenarios where AC systems are used for 4 hours per day, suitable for mainstream refrigerant types such as R134a/R1234yf.

Product Uses

Here are specific application scenarios of Air conditioning radiator:

1. High frequency cooling scenario for family cars in summer: Suitable for family cars, when the summer temperature is high (35 ℃+), the original car AC radiator is prone to slow cooling due to insufficient heat dissipation. After replacing the radiator, the refrigerant can be quickly cooled down, ensuring that the temperature inside the car drops below 25 ℃ within 10 minutes, meeting the comfortable cooling needs of daily commuting and family travel, and suitable for mainstream 1.5L-2.0L displacement sedans.

2. SUV long-distance off-road high temperature scenario: For SUVs, in high-temperature off-road environments such as deserts and plateaus, the dual heat generation of the engine and AC system can easily cause radiator overload. The product is designed with high thermal conductivity aluminum fins, which increases heat dissipation efficiency by 35%. It can stably cool in an environment of 45 ℃, avoiding AC system strikes and supporting a comfortable experience for long-distance off-road driving.

3. Summer freight scenario for light commercial trucks: suitable for light trucks. During summer freight, the cab space is closed and the sun exposure time is long, and the AC system needs to operate continuously at high loads. The anti vibration ABS shell and seamless copper tube structure of this radiator can withstand freight bumps, and the 1.5MPa pressure resistant design prevents leakage, reducing maintenance downtime and ensuring stable cooling during transportation.

4. Renovation scenario for AC system of old vehicles: For models over 8 years old with corroded and leaking AC radiators (such as the old Honda Accord and Buick Excelle), replacing the radiator can directly replace the aging parts. It is compatible with 90% of the original car installation position, does not require pipeline modification, and has anti-corrosion performance tested with 500 hours of salt spray, which can extend the service life of old car AC systems by 3-5 years.

5. Multiple vehicle repair scenarios in auto repair shops: When the auto repair shop receives repairs for multiple brand vehicle models, the radiator covers mainstream sizes of 180mm-450mm and is suitable for sedans SUV、 Light trucks, etc., do not require a large inventory. The 0.01% low defect rate of 100% stress testing also reduces the repair rate, improves maintenance efficiency, and enhances customer trust in AC system maintenance.

Product Operate Guide

1. Preparation before installation: Confirm that the radiator model is compatible with the vehicle, prepare a wrench and refrigerant recovery machine, recover the old system refrigerant first, disconnect the AC pipeline after the engine cools down, clean the installation position of dust and oil stains, check whether the pipeline sealing ring is aging, and replace it synchronously if aging occurs.

2. Disassemble old parts: Loosen the fixing bolts of the radiator, disconnect the connecting pipes (mark the interface), remove the old radiator, and be careful to avoid refrigerant residue leakage. If there are impurities in the pipes, rinse them with a special cleaning agent and let them dry.

3. Install new parts: Align the new radiator with the installation position and fix it. Connect the pipes according to the markings and tighten them (torque 8-12N · m). Replace the new sealing ring. After installation, pressurize with nitrogen (1.2MPa for 30 minutes) to confirm that there is no leakage.

4. Debugging and testing: After vacuuming (vacuum degree ≤ 5Pa), add the appropriate refrigerant (refer to the vehicle manual for dosage), start the vehicle and turn on the AC, run for 10 minutes, check the air outlet temperature (18-22 ℃ is normal), confirm that there is no abnormal noise, and complete.

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
