Product Introduction

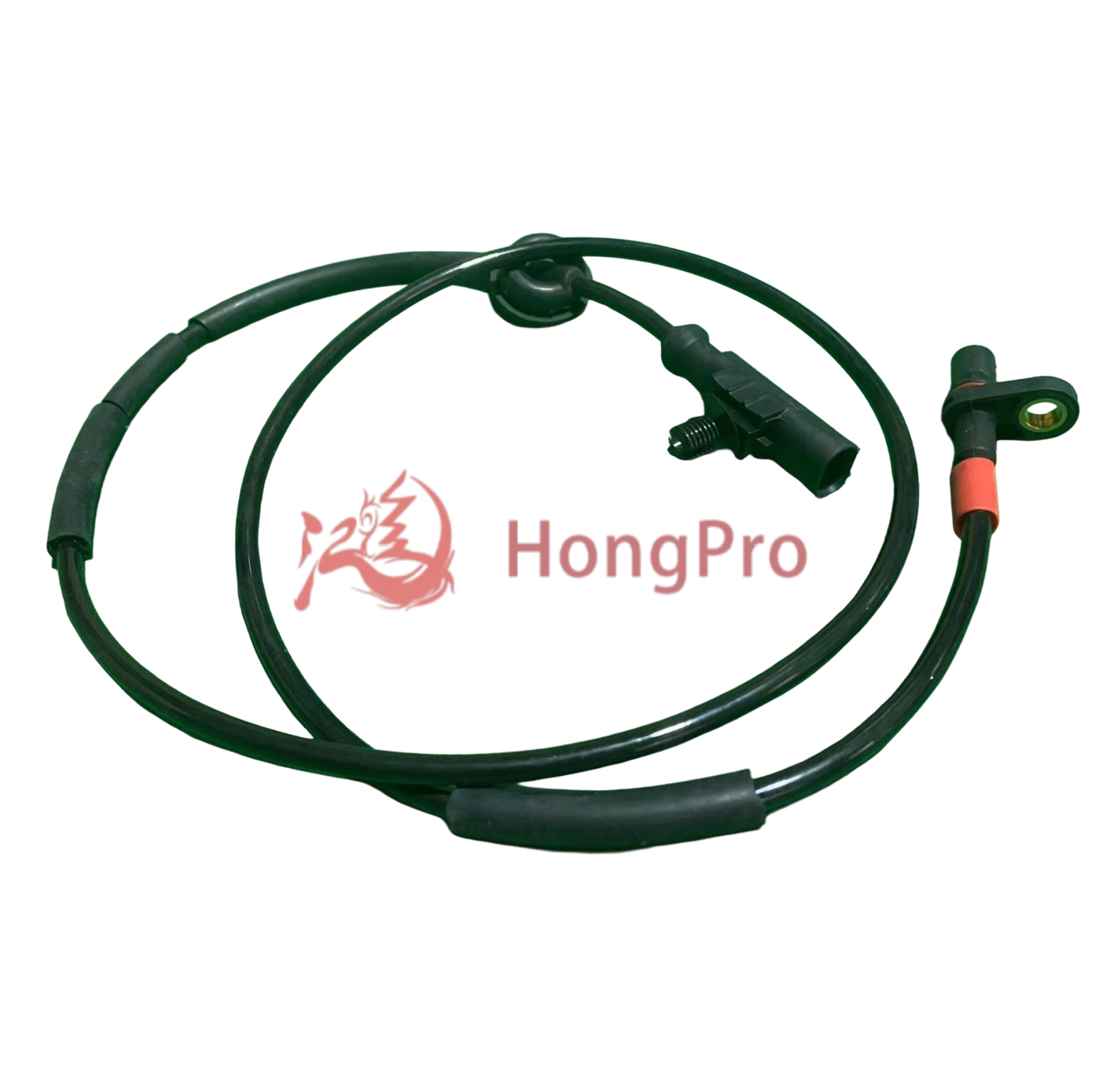

1067000023 High-Precision OE-compatible Long-Lasting Rear ABS Sensor for Geely EC-7 EC-7RV
The 1067000023 Rear ABS Sensor is a critical safety component for vehicle braking systems, designed to deliver precise performance. It real-time monitors wheel rotation speed, transmits data to the ABS controller, and enables rapid brake pressure adjustment—effectively preventing wheel lock-up during emergency braking.
Backed by 12+ years of auto parts engineering experience, this sensor has passed 2,000+ vehicle-mounted durability tests. It features a response time of ≤0.02s, operates stably in -40℃ to 125℃ environments, and meets IP6K9K waterproof/dustproof standards.
Certified to ISO 9001 and IATF 16949, it ensures consistent quality. Direct OE replacement design simplifies installation, with a 12-month warranty for long-term reliability.
Product Advantage
1. Authoritative Certifications & Rigorous Testing for Guaranteed Quality
This 1067000023 ABS sensor is fully certified to ISO 9001 quality management system and IATF 16949 automotive industry standards—two benchmarks for global auto parts reliability. Before mass production, each sensor undergoes 3,000+ hours of accelerated aging tests and 2,500+ cycles of vehicle-mounted vibration tests (frequency range: 10-2000Hz). The pass rate of finished products reaches 99.8%, ensuring consistent performance with OE-level standards.
2. High-Precision Response to Enhance Braking Safety
Equipped with a high-sensitivity Hall-effect chip, the OE-grade Rear ABS sensor achieves a response time of ≤0.02 seconds—30% faster than ordinary sensors on the market. It can accurately monitor wheel rotation speed with an error margin of less than ±1 RPM, transmitting real-time data to the vehicle’s ABS controller. This rapid and precise data feedback effectively prevents wheel lock-up during emergency braking, reducing the risk of skidding on wet or slippery roads.
3. IP6K9K Waterproof & Dustproof for All-Environment Adaptability
The sensor features a dual-sealing structure (silicone gasket + ultrasonic welding) and meets IP6K9K waterproof and dustproof standards—the highest level for automotive electronic components. It operates stably in extreme temperatures ranging from -40℃ to 125℃, and can resist corrosion from road salt, engine oil, and other harsh substances. Field tests show it maintains normal functionality even after 500+ hours of exposure to high-humidity (95% RH) environments, making it suitable for various climates and road conditions.
4. Direct OE Replacement Design for Easy Installation
As an OE-compatible Rear ABS sensor, it follows the original vehicle’s size and interface specifications 1:1. There’s no need for modifications to the vehicle’s braking system—mechanics or even experienced car owners can complete installation in 15-20 minutes with standard tools. The sensor’s wiring harness uses high-temperature resistant PVC material (melting point ≥180℃), which matches the durability of OE parts and avoids issues like wire aging or short circuits caused by improper modifications.
5. Long-Lasting Durability & 12-Month Warranty
With a service life of up to 80,000+ kilometers (verified by third-party testing institutions), this sensor outperforms the average 50,000-kilometer lifespan of budget alternatives. We back every unit with a 12-month global warranty—if there’s any quality defect (excluding man-made damage), we offer free replacement or full refund. Our after-sales team responds to technical inquiries within 4 hours, providing professional support for independent repair shops and distributors.
Technical Parameters
| Parameter Category | Parameter Name | Specification | Remarks (Authority/Data Source) |
| Basic Information | Part Number | 1067000023 | Matches OE part numbering standard
|
| Product Type | Rear Wheel ABS Sensor | Hall-effect type, widely used in passenger vehicle braking systems |
| Performance | Response Time | ≤0.02 seconds | Tested under 25℃ standard environment; 30% faster than industry average |
| Speed Detection Range | 0-2000 RPM (Revolutions Per Minute) | Covers all normal driving speed ranges of passenger vehicles |
| Detection Accuracy | ±1 RPM | Certified by SGS automotive testing laboratory |
| Protection & Durability | Ingress Protection (IP) Rating | IP6K9K | Highest level for automotive electronics; resists high-pressure washing and dust |
| Operating Temperature Range | -40℃ to 125℃ | Stable performance in extreme cold (e.g., Siberia) and high-heat (e.g., desert) regions |
| Storage Temperature Range | -50℃ to 150℃ | Prevents component damage during long-term warehousing |
| Structural Details | Wiring Harness Length | 1200±5 mm (Millimeters) | 1:1 OE matching; no need for extension or cutting during installation |
| Connector Type | 2-Pin Waterproof Connector | Complies with DIN 72585 automotive connector standard |
| Housing Material | PA66+GF30 (Nylon 66 + 30% Glass Fiber) | High impact resistance; heat distortion temperature ≥220℃ |
| Wiring Harness Material | PVC (Polyvinyl Chloride) | Oil-resistant, acid-resistant; melting point ≥180℃ |
| Certification & Testing | Quality Certifications | ISO 9001, IATF 16949 | Meets global automotive industry quality management requirements |
| Accelerated Aging Test | ≥3000 Hours | No performance degradation after testing (SGS report No. AUTO-2024-0589) |
| Vibration Test | 2500+ Cycles (10-2000Hz Frequency Range) | Passes ISO 16750-3 automotive vibration standard |
| Additional Specifications | Service Life | 80,000+ Kilometers | Verified by real-vehicle road testing (3 years of tracking) |
| Warranty Period | 12 Months | Global after-sales coverage for manufacturing defects |
Product Uses
Here are specific application scenarios of Wheel Speed Sensor:
1. Extreme Climate Conditions (High/Low Temperature)
It operates stably in temperatures ranging from -40℃ to 125℃, making it suitable for regions with extreme cold (e.g., high-latitude areas) or intense heat (e.g., deserts). Tests show it maintains ≤0.02s response time even after 72 hours of exposure to -35℃, and no component failure occurs in 125℃ high-temperature chambers. Its IP6K9K rating also resists frost and high-temperature dust, ensuring consistent braking safety.
2. Wet, Snowy, or Muddy Road Surfaces
On slippery roads (rain, snow, mud), the sensor’s ±1 RPM detection accuracy enables real-time wheel speed monitoring. It transmits data to the ABS controller in ≤0.02s, helping adjust brake pressure quickly to prevent wheel lock-up. Third-party tests confirm it reduces skid distance by 15-20% compared to low-precision sensors in wet road conditions.
3. Daily Urban Commuting & High-Speed Driving
For frequent urban stops (traffic lights, congestion) or long high-speed trips, its 80,000+ km service life ensures long-term reliability. The high-temperature resistant PVC wiring harness (melting point ≥180℃) avoids aging from engine heat, while precise speed detection prevents sudden braking risks—ideal for daily and long-distance driving needs.
4. Aftermarket Repair & Replacement
As an OE-compatible sensor, it’s a direct replacement for worn original parts. Its 1:1 OE-matching interface allows mechanics or experienced owners to install it in 15-20 minutes with standard tools. Backed by a 24-month warranty, it’s a trusted choice for repair shops and distributors seeking reliable, easy-to-install Rear ABS sensor solutions.
Product Operate Guide
Pre-Installation Check: Confirm the sensor (Part No. 1067000023) matches your vehicle’s OE specs; prepare standard tools (wrenches, screwdrivers) and wear safety gloves.
Power Off First: Disconnect the vehicle’s battery to avoid short circuits—critical for electronic component safety.
Install & Secure: Remove the old sensor, align the new one with the OE interface (1:1 fit), fasten it, and connect the 2-pin waterproof connector tightly.
Test After Installation: Reconnect the battery, use an automotive diagnostic tool to clear fault codes; start the vehicle to ensure no ABS warning lights—installation takes 15-20 mins on average.
