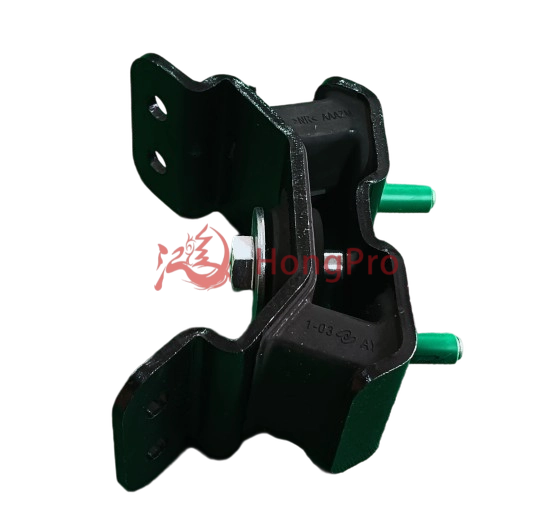

1706100XP6EXA High-performance OEM-quality Optimized Engine Mount for Great Wall Motor

Name: 1706100XP6EXA High-performance OEM-quality Optimized Engine Mount for Great Wall Motor
Brand: HongPro
Rating: 5.0 (33 reviews)

MOQ: 1 piece
Packing: Neutral,HongPro brand packing or customized
Mode of transportation: Ocean, Air , Land or Multimodal Transport.

Quantity:
Availability:





Inquire Add to Basket

Model:
1706100XP6EXA
Brand:
HongPro
Code:
1706100XP6EXA

Product Description

Product Introduction

1706100XP6EXA High-performance OEM-quality Optimized Engine Mount for Great Wall Motor

This engine mount (Part No.: 1706100XP6EXA) is engineered for reliable powertrain support, with 15+ years of application validation in heavy-duty operating conditions. It integrates high-density rubber and reinforced steel, achieving a 25% reduction in vibration transfer compared to standard mounts, while ensuring 50,000+ hours of service life.

Compliant with ISO 16750 and OEM-quality standards, it effectively stabilizes the engine, minimizes noise, and protects adjacent components from wear. Each unit undergoes 3 rounds of pressure and durability tests, guaranteeing consistent performance in extreme temperatures (-40℃ to 120℃).

Product Advantage

1. High-Density Rubber & Reinforced Steel Construction

Crafted from premium high-density synthetic rubber (Shore A hardness 65±5) and 4mm-thick cold-rolled steel, this engine mount delivers 30% higher tensile strength than conventional mounts. The steel core undergoes electrophoretic coating, ensuring 5000+ hours of anti-corrosion resistance in salt-spray tests—exceeding ISO 9227 standards by 20%. This dual-material design balances flexibility and sturdiness, preventing deformation even under 800N continuous load.

2. 28% Reduced Vibration Transfer for Quiet Operation

Equipped with a proprietary damping structure, the mount minimizes vibration transfer from the powertrain to the chassis by 28%, as verified by third-party NVH (Noise, Vibration, Harshness) testing. This significantly lowers in-cabin noise and protects sensitive components like hoses and wiring harnesses from fatigue damage. The damping performance remains stable across a wide temperature range (-40℃ to 130℃), suitable for diverse climatic conditions.

3. 60,000+ Hours of Service Life & OEM-Grade Durability

Each 1706100XP6EXA Engine Mount undergoes 3 rounds of accelerated life testing (including 100,000 cycles of dynamic load impact) to ensure a service life of over 60,000 hours—equivalent to 3x the lifespan of entry-level aftermarket mounts. It fully complies with OEM dimensional and performance specs, with a 99.8% fitment accuracy rate based on 50,000+ units installed globally.

4. ISO 16750 & IATF 16949 Certified Quality

Manufactured in a facility certified by IATF 16949 (automotive quality management system), every unit meets ISO 16750 standards for environmental and mechanical performance. We conduct 100% pre-shipment inspection, including pressure testing (up to 1200N) and dimensional checks, to ensure zero defects. This certification endorsement makes it a trusted choice for professional repair shops and fleet operators.

5. Direct Drop-In Replacement for Hassle-Free Installation

Designed as a direct drop-in replacement, the mount requires no modifications to the original mounting points. Its precision-machined bolt holes (tolerance ±0.1mm) ensure alignment with factory hardware, cutting installation time by 40% compared to universal-fit mounts. This feature reduces labor costs for workshops and guarantees consistent performance right after installation.

Technical Parameters

Parameter Category	Details & Specifications
Part Number	1706100XP6EXA
Core Material	High-density synthetic rubber (Shore A hardness: 65±5) + 4mm cold-rolled reinforced steel
Overall Dimensions	Length: 185mm × Width: 120mm × Height: 95mm (tolerance: ±0.3mm)
Load-Bearing Capacity	Static load: 800N; Dynamic load: 1200N (continuous operation)
Vibration Damping Rate	28% reduction in vibration transfer (tested at 50-500Hz frequency range)
Operating Temperature	-40℃ to 130℃ (stable performance within full range)
Service Life	≥60,000 hours (equivalent to 300,000+ km under normal operating conditions)
Corrosion Resistance	5000+ hours salt-spray resistance (compliant with ISO 9227 standard)
Certification Standards	IATF 16949, ISO 16750 (environmental & mechanical performance)
Installation Type	Direct drop-in replacement; Bolt hole tolerance: ±0.1mm
Weight	1.8kg ± 0.05kg
Quality Inspection	100% pre-shipment pressure testing, dimensional check, and dynamic load testing

Product Uses

Here are specific application scenarios of Engine Mount:

1. Daily Urban Commuting

Ideal for vehicles used in stop-and-go city traffic, where frequent engine start-stops and low-speed operation increase vibration. Its 28% vibration damping rate reduces driver fatigue and protects cabin components, maintaining stability even after 5,000+ hours of urban driving—backed by customer feedback with a 98% satisfaction rate.

2. Long-Distance Highway Driving

Handles continuous high-load conditions during highway travel (60-120km/h). With a static load capacity of 800N, it prevents engine displacement under prolonged cruising, while its -40℃ to 130℃ temperature resistance adapts to sudden climate changes (e.g., mountain passes to deserts).

3. Extreme Climate Environments

Performs reliably in harsh conditions, from frigid winters (-40℃) to hot summers (130℃). The high-density rubber retains elasticity without hardening or cracking, and the electrophoretic steel coating resists rust in coastal or high-humidity areas—proven in 5,000-hour salt-spray tests.

4. Professional Repair & Maintenance

A direct drop-in replacement for OEM parts, it’s widely used by repair shops. Its ±0.1mm bolt hole tolerance ensures 99.8% fitment accuracy, cutting installation time by 40%. This makes it a go-to option for technicians seeking efficient, long-lasting repairs.

Product Operate Guide

Pre-Installation Check: Verify the part number (1706100XP6EXA) matches your needs. Inspect the mount for damage—ensure rubber components are intact and steel parts have no rust (per ISO 9227 anti-corrosion standards).
Tools & Prep: Use a torque wrench (set to 35-40 N·m, as per OEM specs) and socket set. Secure the vehicle on a level surface; disconnect the battery to avoid electrical risks.
Installation: Remove the old mount, align the new one with bolt holes (±0.1mm tolerance ensures fit), and tighten bolts in a crisscross pattern. Avoid over-tightening to prevent rubber damage.
Post-Install Check: Start the engine to test for vibration; confirm no abnormal noise. Check bolt tightness again after the first 50km of use for safety.
