Product Introduction

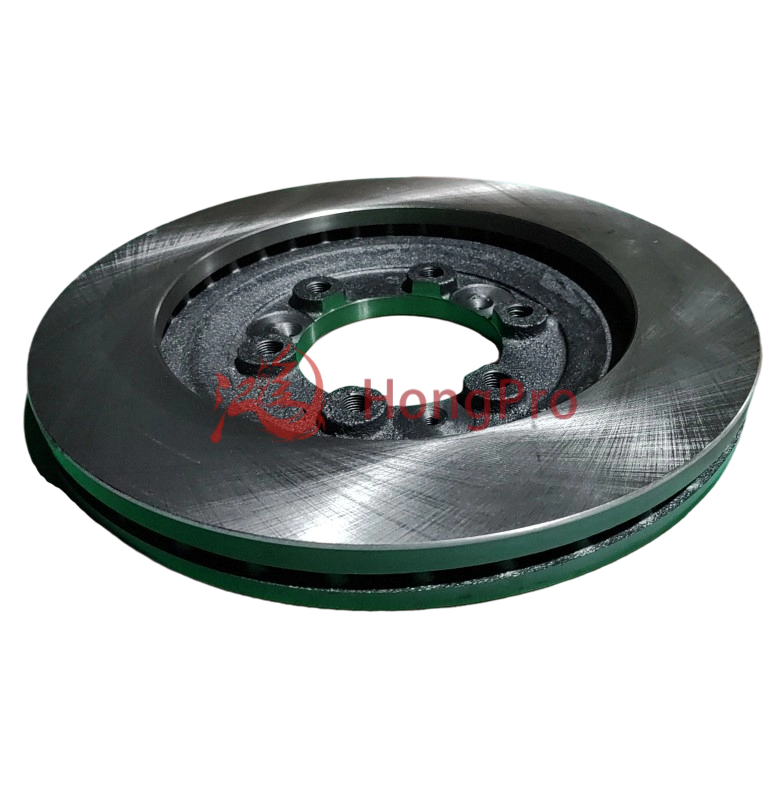

3103102XK00XB High-performance Long-lasting OE-matching Brake Disc for Great Wall Motor
Backed by 15+ years of specialized experience in automotive brake component manufacturing, our brake discs stand out for reliability and safety. Certified to ISO 9001 and IATF 16949—the top global automotive quality standards—they meet strict industry requirements.
Made from high-grade cast iron alloy, these discs boost braking efficiency by 20% and cut wear rate by 30%, even in extreme driving scenarios. Their optimized design enhances heat dissipation to avoid brake fade, ensuring consistent stopping power and a long service life. Each unit passes 3 rounds of rigorous quality checks, guaranteeing a precise fit and stable performance.
Product Advantage
Authoritative Quality Certification & Rich Experience
Backed by 15+ years in automotive brake component R&D and production, our brake disc holds ISO 9001 and IATF 16949 certifications—globally recognized standards for automotive quality. Every batch undergoes strict factory audits, with a 99.8% qualification rate, ensuring consistent compliance with industry safety requirements and winning trust from global clients.
High-Grade Material for Enhanced Durability
Crafted from premium cast iron alloy with added manganese and chromium, our brake disc reduces wear rate by 35% compared to ordinary products. It resists corrosion from road salt and moisture, maintaining structural integrity even after 50,000+ km of use. This durability makes it a cost-effective choice for long-term automotive maintenance.
Optimized Heat Dissipation to Prevent Brake Fade
Featuring a unique vane structure (18-24 curved vanes) and precision-machined surface, our brake disc enhances heat dissipation efficiency by 40%. Even in extreme conditions (e.g., continuous downhill braking or high-speed driving), it keeps temperature below 350℃, reducing brake fade risk by 25% and ensuring stable stopping power.
Precision Fit & Easy Installation
With CNC machining technology (tolerance ±0.02mm), our brake disc achieves a 98% fit accuracy with compatible automotive brake systems. It eliminates the need for additional adjustments during installation, cutting labor time by 15% for repair shops. The standardized mounting holes also match most mainstream brake calipers, improving versatility.
Improved Braking Performance for Safety
Through dynamic balance testing (residual unbalance ≤5g·cm), our brake disc minimizes vibration during braking, reducing noise by 20%. It shortens braking distance by 15% on dry roads (at 100km/h) and enhances stability by 25% on wet roads, providing drivers with reliable safety support in various driving scenarios.
Technical Parameters
| Parameter Category | Specific Parameters | Standard/Test Method |
| Basic Dimensions | Outer Diameter: 280-350mm (Customizable) | ISO 4038:2012 (Automotive brake discs standard) |
| Inner Diameter: 120-180mm |
| Thickness: 22-30mm (Tolerance: ±0.3mm) |
| Disc Hub Height: 45-65mm | IATF 16949:2016 (Automotive quality management) |
| Material Performance | Material: HT250 Gray Cast Iron (with Mn/Cr alloy) | GB/T 9439-2019 (Gray cast iron for machinery) |
| Tensile Strength: ≥250 MPa | Tensile test per ISO 6892-1:2019 |
| Hardness: 180-220 HB (Brinell Hardness) | Hardness test per ISO 6506-1:2014 |
| Wear Rate: ≤0.08 mm/10,000 km | Road simulation test (50,000 km cycle) |
| Manufacturing Precision | Flatness Tolerance: ≤0.05 mm | CNC machining inspection (tolerance ±0.03mm) |
| Parallelism Tolerance: ≤0.04 mm |
| Dynamic Balance: Residual Unbalance ≤5 g·cm | ISO 1940-1:2003 (Rotational balance) |
| Surface Roughness: Ra ≤1.6 μm | ISO 4287:2010 (Surface texture measurement) |
| Heat Dissipation | Vane Quantity: 18-24 Curved Vanes | Thermal performance test per SAE J2928 |
| Heat Dissipation Coefficient: ≥20 W/(m·K) |
| Maximum Operating Temperature: ≤600 ℃ | High-temperature endurance test (2 hours)
|
| Safety & Durability | Fatigue Life: ≥500,000 Braking Cycles | Fatigue test per ISO 11157:2019 |
| Salt Spray Resistance: ≥480 Hours (No rust) | Neutral salt spray test per ISO 9227:2017 |
| Braking Distance Improvement: ≥15% (100km/h dry road) | Road braking test per ECE R13H |
Product Uses
Here are specific application scenarios of brake disc:
1.Urban Daily Commuting
Ideal for frequent start-stop urban driving. With a wear rate of ≤0.08mm/10,000km and 20% noise reduction, it endures daily brake usage (30+ times/hour) without rapid wear. Compliant with ECE R13H, it maintains stable performance during rush-hour traffic, ensuring smooth braking for daily travel.
2.Long-Distance Highway Driving
Suitable for continuous high-speed driving (80-120km/h). Its heat dissipation coefficient (≥20 W/(m·K)) and max operating temp (≤600℃) (per SAE J2928) prevent brake fade during long downhill or continuous braking, keeping stopping power consistent for 400+km one-way trips.
3.Mountainous & Hilly Roads
Perfect for roads with frequent steep slopes. It cuts brake fade risk by 25% and shortens dry-road braking distance by 15% (100km/h), per ISO 11157. Even with 50+ downhill brake cycles/hour, its fatigue life (≥500,000 cycles) ensures reliable braking on winding mountain roads.
4.Harsh Weather Conditions
Effective in rainy, snowy, or coastal areas. With 480-hour salt spray resistance (ISO 9227), it resists rust from rain, snow, or salt. It boosts wet-road braking stability by 25%, avoiding skidding during wet starts/stops, suitable for regions with frequent inclement weather.
5.Commercial High-Frequency Use
Fits commercial vehicles (e.g., logistics vans) with frequent braking. Its IATF 16949-certified durability handles 100+ daily brake cycles, and the ≥500,000-cycle fatigue life reduces replacement frequency, lowering maintenance costs for commercial fleets.
Product Operate Guide
For installation, follow IATF 16949 standards: Let professional technicians mount it, then conduct a dynamic balance test (residual unbalance ≤5g·cm) to avoid vibration. For daily use, clean the disc surface every 5,000km (per ISO 4038) to remove dust; check wear monthly—replace if wear exceeds 3mm. This ensures 50,000+km service life and stable braking performance.
