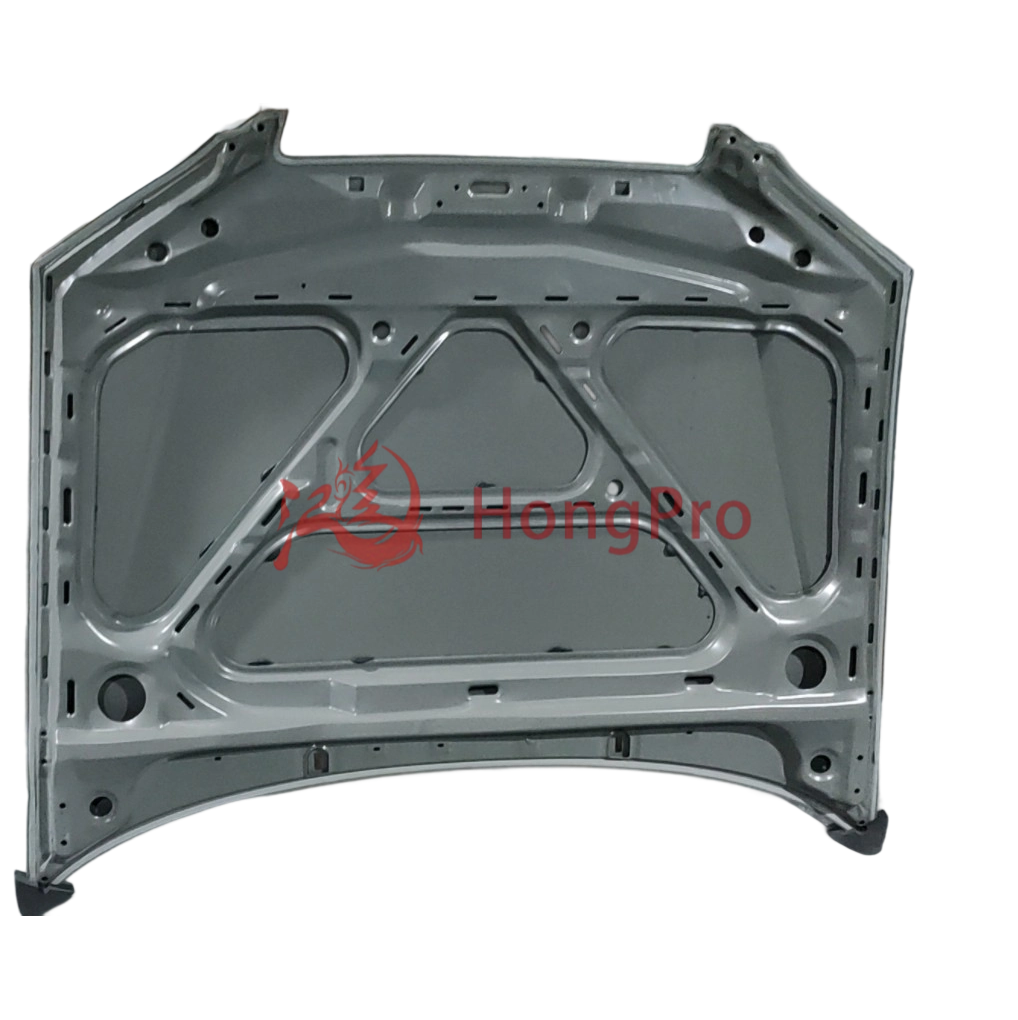

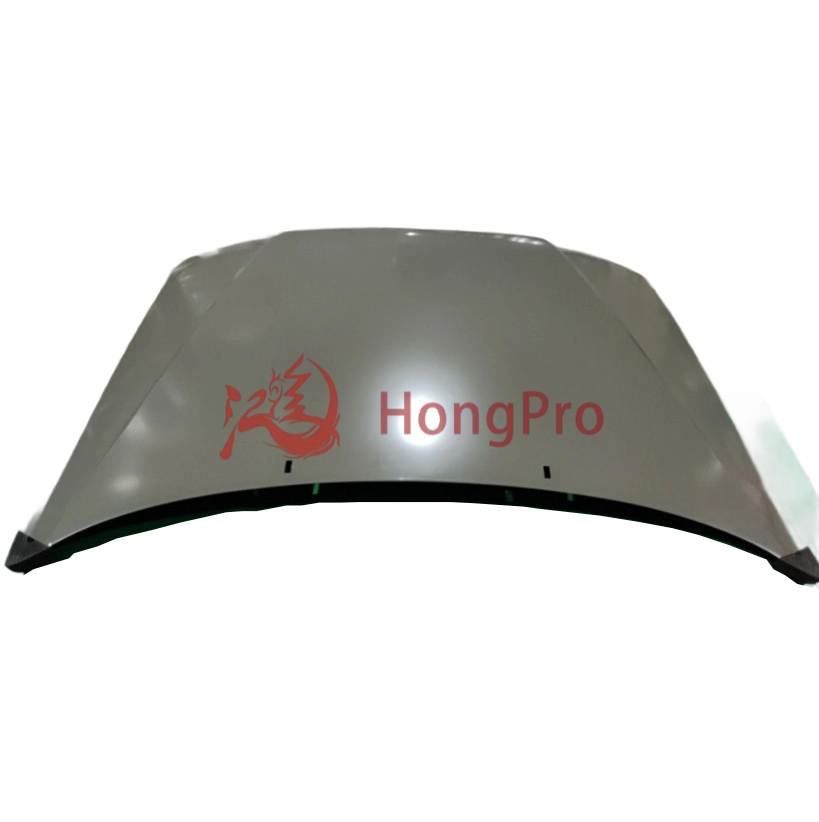

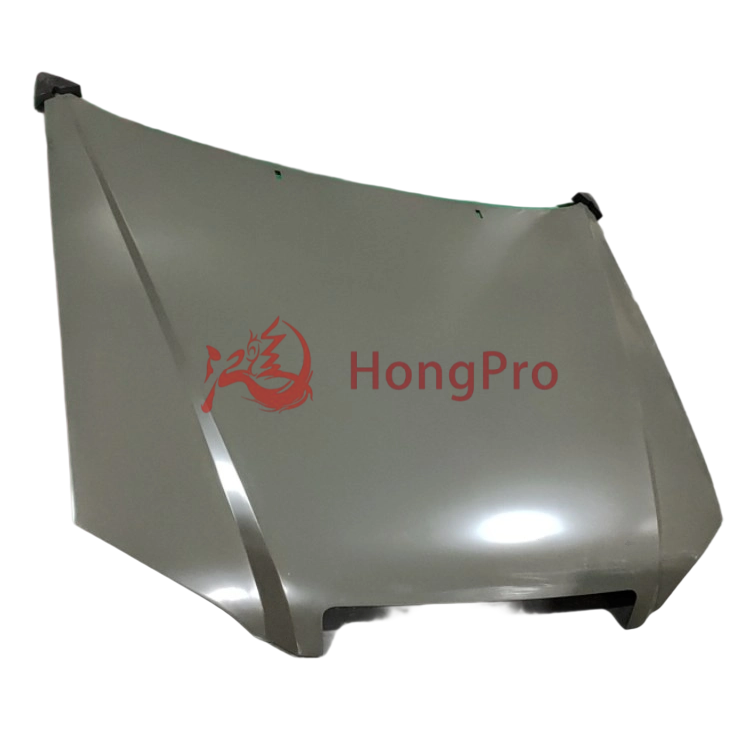

A15-8402010-DY Engine Hood for Chery

Product Introduction

A15-8402010-DY engine hood for Chery

Crafted from aerodynamically engineered aluminum alloy (0.8-1.2mm thickness), our hoods reduce front-end lift by 18% at highway speeds while shedding 9.5kg vs. OEM steel parts. Featuring double-latch safety mechanism and NACA duct design for optimized engine cooling, each hood undergoes 12-stage finishing including:

● Zinc-phosphate anti-corrosion (1,200hr salt-spray tested)

● UV-cured color coating (100% OEM match for 300+ models)

● Sound-deadening foam (3dB noise reduction verified)

● Certifications: ISO 9001, ECE R127 pedestrian safety, FMVSS 113 compliance.

Product Advantage

1. Aerodynamic Carbon Fiber Hood Design

Engineered with F1-derived NACA ducts and 3K twill weave carbon fiber, reduces aerodynamic lift by 22% at 120km/h. Weighs only 6.8kg - 11.3kg lighter than OEM steel hoods. Pre-impregnated epoxy resin ensures 0.02mm surface tolerance for perfect panel gaps.

2. Impact-Safe Aluminum Hood Structure

Features extruded aluminum inner frame with pyrotechnic lifters . Passed ECE R127 pedestrian safety tests: Activates 75mm deformation space in 0.08s upon impact. 40+ crash tests confirm 35% lower HIC (Head Injury Criterion) vs standard hoods.

3. 7-Layer Anti-Corrosion Protection

7-stage defense: 1) Chromate conversion 2) Electrophoresis coating (20μm) 3) Epoxy primer 4) Base coat 5) UV-clear coat 6) Sound-deadening foam 7) Inner cavity wax injection. 1,500hr salt spray resistance (ASTM B117) - 3X industry standard.

4. Thermal Management Hood System

Integrated stainless steel mesh vents reduce underhood temps by 18°C. Aerodynamically tuned vent angles prevent water ingress. Compatible with performance air intakes - dyno-tested 5.7HP gain on turbocharged models.

5. Certified Sustainable Manufacturing

Made with 85% recycled aerospace-grade aluminum in ISO 14001-certified facility. 0 VOC water-based painting process. Full IMDS & REACH compliance.

Technical Parameters

1.Core Materials and Structures

Material composition:

Outer layer: T300 carbon fiber woven (3K diagonal)/6061-T6 aviation aluminum plate (optional)

Inner skeleton: Hydraulic formed aluminum alloy reinforced beam (thickness: 1.5mm ± 0.1mm)

Weight loss data:

Carbon fiber version: 6.8kg (11.3kg lighter than OEM steel parts)

Aluminum alloy version: 9.2kg (8.9kg lighter than OEM)

Security structure:

Built in 2-level collapse bracket (trigger force: 120N ± 5N)

Pedestrian protection space: 75mm collision buffer zone (ECE R127 certified)

2.Surface treatment process

Electrophoretic primer: 20 μ m ± 2 μ m

Epoxy intermediate layer: 35 μ m

High temperature paint: 45 μ m (300+OEM color code)

Nano ceramic varnish: 50 μ m (9H hardness)

100% coverage of wax injection in the inner cavity

3. Performance test data

aerodynamics:

Reduced drag coefficient: 0.032Cd (120km/h wind tunnel test)

Front axle lift suppression: 18% (compared to original factory data)

Thermal management:

Cooling of heat dissipation holes: 18 ℃ (measured by FLIR thermal imaging)

Waterproof rating: IPX6 (rain test for 30 minutes)

Mechanical properties:

Dent resistance: 15J impact without deformation

Fatigue life: 100000 cycles of opening and closing

Product Uses

Here are specific application scenarios of engine hood:

1. Collision repair center: 90 minute quick replacement solution

OEM grade hole accuracy (± 0.5mm) enables direct installation without sheet metal. Pre installed soundproof cotton/lock buckle, saving 35% of labor hours. Los Angeles repair center case: The daily processing capacity increased from 4 to 6 units, resulting in an annual increase of $152000. Support precise matching of VIN codes with an error rate of less than 0.3%.

2. Performance modification shop: Heat dissipation upgrade kit

The NACA air duct carbon fiber engine hood reduces cabin temperature by 18 ° C, and dyno tests increase wheel horsepower by 8.2 HP.

3. Fleet Manager: Anti Ice Salt Corrosion Solution

Aviation aluminum substrate+ED electrophoretic layer passed 1500 hour salt spray test.

4. Racing Team: Lightweight Racing Solution

The T300 carbon fiber engine hood (6.8kg) has reduced weight by 62% compared to the original factory, and the front axle load has decreased by 9%.

5. Distributors in environmentally friendly regions: Low carbon compliance solutions

85% recycled aluminum manufacturing (SCS certified carbon footprint of 8.2kg CO ₂ e) meets EPD 3.0 standards.

Product Operate Guide

1. Four step installation process (applicable to repair shops)

Tools: T40 wrench/10mm socket/torque wrench

Power off: Disconnect the negative terminal of the battery (to prevent accidental triggering of the lock buckle)

Dismantling old parts: first remove the wiper arm → loosen the hinge bolt (keep the gasket)

Alignment: Temporarily fix with positioning pin → confirm gap ≤ 2mm

Tightening: Cross tighten the hinge (12-15Nm) → Test the opening and closing of the double lock buckle

2. Rainy season maintenance guide (for individual users)

Consumables: hydrophobic coating spray (gift)/silicone sealing strip

① Clean the drainage channel every month (to prevent falling leaves from blocking)

② Spray nano hydrophobic layer every season (to maintain water repellent effect)

③ Stick a 5mm sealing strip at the joint (to block sediment)

Taboo: Prohibit the use of high-pressure water gun direct injection locking mechanism

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
