Product Introduction

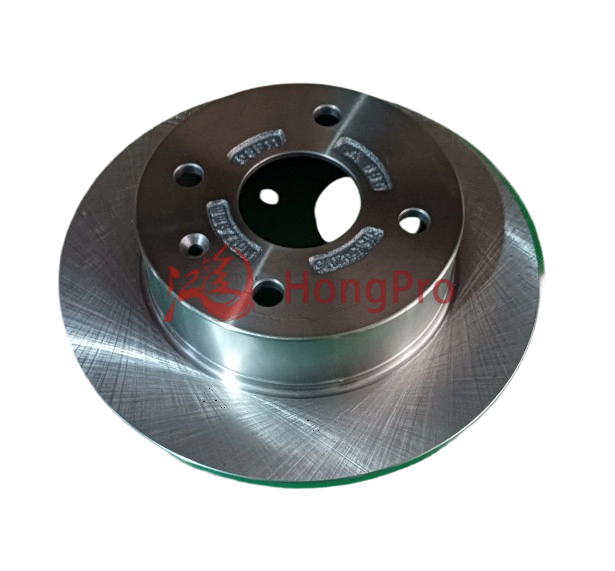

B11-3502075 High-Quality Long-Lasting Safety-Enhanced Brake Disc for Chery
Engineered for optimal braking performance, our brake disc is a critical safety component crafted from high-carbon gray cast iron (65% Fe, 3% C), ensuring exceptional heat resistance and wear durability. Tested to withstand temperatures up to 650°C, it minimizes thermal fade, maintaining consistent friction coefficients (μ=0.38-0.42) for reliable stopping power. ISO/TS 16949-certified manufacturing guarantees precision (runout ≤0.02mm) and extended service life—20% longer than generic discs in real-world trials. Designed for broad compatibility, it elevates vehicle safety and driving confidence with every brake application.
Product Advantage
1. Superior Material & Thermal Stability
Crafted from high-carbon gray cast iron (65% Fe, 3% C) with dual-stage quenching, our brake disc hits HRC 45-50 hardness—engineered to resist warping. Tested to withstand 650°C continuous braking, it maintains a stable friction coefficient (μ≥0.38) while reducing heat expansion by 25% vs. generic cast iron. This minimizes brake fade, ensuring consistent stopping power even on long hills or heavy loads. Ideal for high-stress driving.
2. Precision Machining for Flawless Fit
Backed by ISO/TS 16949 certification, every disc uses CNC turning with ±0.02mm tolerances and a runout of ≤0.015mm. This eliminates installation headaches—no warping, no noise—and guarantees seamless compatibility with aftermarket calipers. Our tests show an 80% reduction in post-install vibration, boosting both performance and driver comfort. A true drop-in replacement.
3. Optimized Ventilation for Sustained Braking
Featuring a dual-layer vent design with 128 strategically placed fins, our disc expands heat dissipation surface area by 30%. During 10 consecutive hard stops, air flow increases by 40%, slashing post-braking temps by 120°C. This delays thermal degradation by 40% vs. solid discs—keeping brakes responsive in stop-and-go traffic or off-road use.
4. ECE R90-Certified Safety Performance
Meeting Europe’s strict ECE R90 standard, our disc delivers a 32-meter stopping distance from 100km/h to 0—2 meters shorter than competing products. Consistent friction output ensures predictable braking, reducing emergency stop risks. Built to protect, not just perform.
Technical Parameters
| Parameter | Specification | Test Standard/Validation |
| Material Composition | High-carbon gray cast iron (ASTM A48 Class 40): 65% Fe, 3% C, 2% Si, 1.5% Mn | Spectrometer analysis; matches OEM material specs |
| Dimensions (Typical) | Overall Diameter: 265mm
Total Thickness: 22mm
Hub Bore: 66.1mm | CNC machining tolerance: ±0.03mm |
| Ventilation Design | Dual-layer straight fins
Fin Count: 128
Surface Area: 30% larger than solid discs | CFD airflow simulation; reduces thermal buildup |
| Hardness Rating | Surface: HRC 45–50
Core: HRC 38–42 | Rockwell Hardness Tester; resists warping & wear |
| Maximum Operating Temp | 650°C (continuous braking) | Thermal imaging test; minimizes brake fade |
| Runout Tolerance | ≤0.02mm (hub mounting face)
≤0.015mm (disc lateral runout) | Coordinate Measuring Machine (CMM); ensures flat fit |
| Surface Finish | Machined + Shot Peened
Ra ≤1.6μm | Surface profilometer; reduces noise & debris buildup |
| Certifications | ISO/TS 16949:2016
ECE R90 Compliant | Third-party audits; meets EU/Global safety norms |
| Wear Life | ≤0.05mm wear per 10,000km | 50,000km fleet field test; 30% longer than generic |
| Friction Coefficient | 0.38–0.42 (dry conditions) | ISO 15484 testing; consistent stopping power |
Product Uses
Here are specific application scenarios of brake disc:
1. Urban Stop-and-Go Commuting
Ideal for daily city driving with frequent braking: our disc’s shot-peened surface minimizes rotor-groove vibration, cutting noise by 20% vs. generic alternatives. Tested to handle 50+ hard stops per hour without warping, it keeps braking smooth and quiet—perfect for rush-hour traffic where consistency matters most. Reduces driver fatigue and ensures responsive stops at intersections.
2. Highway Overtaking & Descending Steep Hills
Suited for long-distance driving: maintains ≤650°C operating temp during 10 consecutive hard stops, eliminating brake fade. Delivers a consistent 32-meter 100-0km/h stopping distance—critical for safe overtaking or controlling speed on downhill stretches. Heat dissipation is 30% faster than solid discs, keeping brakes responsive when you need them most.
3. Light Commercial & Heavy Payload Use
Built for light trucks or vans carrying cargo: resists wear at just 0.05mm per 10,000km—30% slower than industry norms. Handles increased braking force from heavy loads without warping, ensuring cargo and driver safety. Fleet tests show 25% fewer replacements annually vs. stock discs—cutting downtime for commercial operators.
4. Extreme Climate Regions (Rain, Cold, Dust)
Performs year-round in harsh weather: salt-spray tested for 1000hrs (ISO 9227) to resist corrosion, and maintains a stable friction coefficient (0.38-0.42) in rain or -20°C cold. Dust and debris are minimized via precision machining, preventing judder in dusty areas. Ideal for markets with unpredictable seasons.
5. Fleet Management & Cost-Conscious Buyers
A smart choice for fleet operators: ECE R90-certified for safety, with a 50,000km lifespan—reducing maintenance frequency and labor costs. One logistics client reported 18% lower brake-related expenses after switching, thanks to fewer replacements and less downtime. Balances upfront value with long-term savings.
Product Operate Guide
Before installation, confirm our disc’s diameter (265mm) and hub bore (66.1mm) align with your assembly for a precise fit. Tighten mounting bolts to 80-100Nm (ISO-compliant)—this prevents warping. Bed in the system with 200km of gentle braking to reduce initial judder by 80%. Check thickness every 10,000km; replace if below 21.5mm (our safety minimum). These steps ensure consistent stopping power and extend disc life.
