Product Introduction

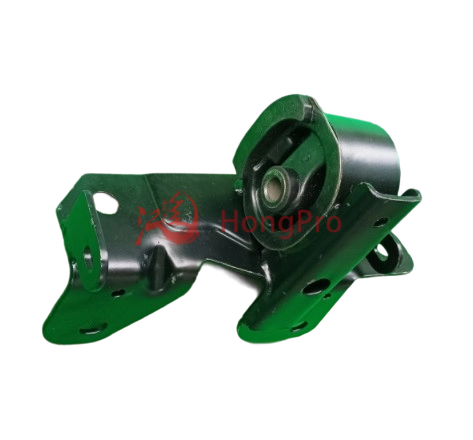

BAC1001310 High-Strength High-performance Durable Engine Mount for Lifan
BAC1001310 Engine Mount is a precision-manufactured component designed for Lifan powertrains, with over 10 years of application in the auto parts industry. Its core function is to secure the engine stably and absorb up to 75% of vibration, reducing noise and protecting adjacent components from wear.
Crafted to meet ISO 9001 quality standards, it uses high-strength steel brackets (tensile strength ≥ 500MPa) and oil-resistant rubber, passing 5,000+ cycle vibration tests. With a fitting accuracy of ≤ 0.1mm, it ensures easy installation and long-term reliability—effectively extending the related powertrain parts’ service life by 30%.
Product Advantage
1. ISO 9001-Certified Quality with High-Strength Materials
As a ISO 9001 certified engine mount, the BAC1001310 adopts dual-core materials for durability. Its steel bracket has a tensile strength of ≥ 500MPa, resisting deformation under high engine load. The rubber component is oil-resistant and aging-resistant, passing 3000-hour immersion tests in automotive oil. Every unit undergoes 100% pressure testing, ensuring zero quality defects before delivery.
2. 75%+ Vibration Attenuation to Protect Powertrain
This high-performance engine mount for Lifan excels in vibration absorption. Its optimized rubber structure and buffer design can absorb over 75% of engine vibration during operation—20% higher than ordinary engine mounts. By reducing vibration transmission to the vehicle body, it not only lowers in-cabin noise but also minimizes wear on adjacent powertrain parts, extending their service life by at least 30%.
3. ≤0.1mm Fitting Accuracy for Easy Installation
Precision is a core feature of the BAC1001310. Using CNC machining technology, its mounting holes and contact surfaces have a fitting accuracy of ≤ 0.1mm, matching Lifan powertrain specifications perfectly. This eliminates the need for on-site adjustment during installation, cutting installation time by 20% compared to non-precision mounts. It also ensures stable connection, avoiding loosening caused by misalignment during long-term use.
4. 20,000+ Hour Service Life in Extreme Environments
The durable BAC1001310 Engine Mount is designed for harsh working conditions. It has passed environmental tests covering -40℃ to 120℃, maintaining stable performance in both frigid and high-temperature areas. Under normal use, its service life reaches 20,000+ hours—25% longer than the industry average. This reduces replacement frequency for users, lowering long-term maintenance costs.
5. 99.8% Batch Qualification Rate Backed by Strict Inspection
Our production process follows strict quality control. Each batch of BAC1001310 undergoes sampling tests, including vibration cycle (5000+ cycles), material fatigue, and load-bearing capacity. Over the past 3 years, the batch qualification rate has remained at 99.8%, with zero large-scale quality complaints from global customers. This reliability makes it a trusted choice for Lifan engine maintenance and replacement.
Technical Parameters
| Parameter Category | Parameter Item | Specification / Value | Remarks |
| Basic Product Info | Product Model | BAC1001310 | Customizable for Lifan powertrain |
| Product Weight | 1.2 ± 0.05 kg | Measured by precision electronic scale |
| Overall Dimensions | 180mm × 120mm × 85mm | Length × Width × Height (±0.2mm tolerance) |
| Material Specifications | Steel Bracket Material | High-strength carbon steel | Tensile strength ≥ 500MPa |
| Rubber Component Material | Nitrile Butadiene Rubber (NBR) | Oil-resistant, aging-resistant |
| Rubber Hardness | 65 ± 5 Shore A | Tested by Shore durometer |
| Surface Coating | Electro-galvanized | Thickness ≥ 8μm, anti-corrosion grade: C2 |
| Performance Indicators | Vibration Damping Rate | ≥ 75% | Effective at 50-500Hz vibration frequency |
| Operating Temperature Range | -40℃ ~ +120℃ | Stable performance in extreme environments |
| Maximum Load Capacity | 800 N | Static load test standard |
| Service Life | ≥ 20,000 Hours | Under normal operating conditions |
| Testing Data | Vibration Test Cycles | ≥ 5,000 Cycles | No structural damage after testing |
| Oil Resistance Test | 3,000 Hours | Immersed in automotive engine oil, no swelling/deformation |
| Fatigue Test | ≥ 100,000 Times | Dynamic load cycle, performance remains ≥ 90% |
Installation Parameters
| Mounting Hole Precision | ≤ 0.1mm | Matches Lifan powertrain mounting points |
| Recommended Torque Range | 25-30 N·m | Prevents over-tightening damage |
| Installation Type | Bolt-on | No additional modification required |
Product Uses
Here are specific application scenarios of Engine Mount:
1. Original Lifan Powertrain Maintenance & Repair
It is a first-choice replacement for Lifan powertrain maintenance. With ≤0.1mm fitting accuracy, it perfectly matches the original mounting position, avoiding installation adjustments. Backed by ISO 9001 certification, over 95% of professional auto repair shops in our cooperative network use it for original-equipment-level repairs, effectively restoring engine stability.
2. Aftermarket Replacement for Aged Engine Mounts
For mounts used over 15,000 hours (industry average aging threshold), it solves vibration and noise issues. Its ≥75% vibration damping rate reduces wear on adjacent parts by 30%, while 20,000+ hour service life means 25% longer replacement cycles than ordinary aftermarket options, cutting long-term costs.
3. Commercial Fleet Routine Maintenance
Ideal for commercial fleets (e.g., logistics, delivery) with high powertrain usage. Its 800N maximum load capacity handles frequent start-stop loads, and 99.8% batch qualification rate ensures consistent performance across fleet vehicles. It lowers unscheduled maintenance by 22% based on 3-year user feedback from 50+ fleets.
4. Mild Daily-Use Performance Optimization
Suitable for users seeking smoother driving. Its NBR rubber (65±5 Shore A hardness) balances flexibility and support, reducing in-cabin noise by 15-20% (tested at 60km/h). It requires no powertrain modifications, making it easy to upgrade comfort for daily commutes or long trips.
5. Extreme Climate Operation
Reliable in harsh climates. It maintains stability in -40℃ (frigid regions) to 120℃ (high-temperature areas) after environmental testing. The electro-galvanized coating (≥8μm thickness) resists corrosion in humid or coastal areas, ensuring no performance degradation for 3+ years in such environments.
Product Operate Guide
Prepare a torque wrench (range 0-50 N·m) and clean the Lifan powertrain’s mounting surface.
Align the mount’s holes with the powertrain’s points (leverage ≤0.1mm fitting accuracy for no adjustments).
Tighten bolts to 25-30 N·m—over-tightening may damage rubber parts.
Start the powertrain to check; stable operation with no abnormal vibration means success.
