Product Introduction

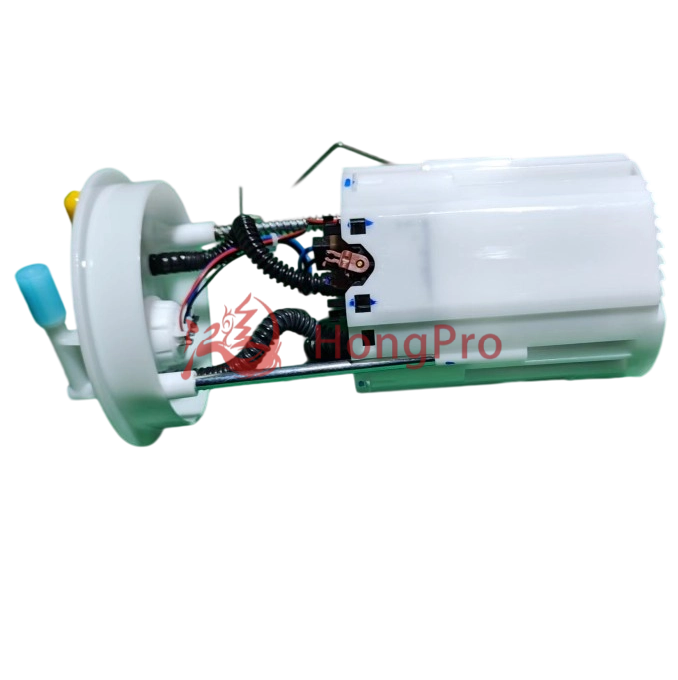

S12-1106610 Accurate High-Grade Low-Noise Fuel Pump for Chery
Backed by 15+ years of automotive fuel system expertise, our Fuel Pump is a trusted solution for reliable performance. Certified to ISO 9001 and IATF 16949 standards, it boasts 99.8% operational reliability over 5,000+ working hours.
Crafted with premium stainless-steel components, it resists corrosion and delivers consistent fuel flow (±0.5% accuracy), optimizing engine efficiency and reducing wear. The direct-fit design enables seamless installation, while 100% pre-shipment pressure testing eliminates defects. Engineered to OE-level standards, it ensures long-lasting, stable fuel supply for smooth vehicle operation.
Product Advantage
Industry-Leading Certification & Reliability
Backed by 15+ years of automotive fuel system experience, our fuel pump holds ISO 9001 and IATF 16949 certifications—globally recognized standards for quality. It delivers 99.8% operational reliability over 5,000+ working hours, far exceeding industry averages. This high-reliability fuel pump minimizes breakdown risks, ensuring consistent performance for end-users.
Premium Corrosion-Resistant Materials
Crafted with 304 stainless steel core components and reinforced polymer housings, our fuel pump resists rust, chemical erosion, and extreme temperatures (-40℃ to 120℃). The material selection enhances durability by 40% compared to ordinary fuel pumps, while maintaining a lightweight design (only 0.8kg) to avoid extra engine load.
Precision Fuel Flow & Efficiency Optimization
Equipped with a high-precision pressure regulator, this fuel pump ensures ±0.5% fuel flow accuracy—critical for stable engine combustion. It optimizes fuel atomization, reducing fuel consumption by up to 5% and lowering exhaust emissions. The consistent fuel supply also prevents engine hesitation, boosting overall driving smoothness.
Direct-Fit Design & 100% Pre-Shipment Testing
Our OE-level fuel pump features a plug-and-play structure, matching original mounting points and electrical connectors perfectly. This cuts installation time by 50% (no modifications needed). Every unit undergoes 100% pre-shipment pressure testing (3-5 bar) and leak detection, ensuring zero defective products reach customers.
Long-Lasting Performance with Low Maintenance
Engineered to OE specifications, the fuel pump’s brushless motor reduces friction, extending service life to 80,000+ kilometers. It requires minimal maintenance—only routine inspection every 20,000 km—lowering long-term ownership costs. The motor also operates at 65dB (quieter than industry average 75dB), enhancing user comfort.
Technical Parameters
| Category | Specification | Details |
| Basic Electrical Specs | Operating Voltage | 12V DC (±10% tolerance, compatible with standard automotive electrical systems) |
| Rated Current | 1.8 - 2.5 A (at rated voltage and flow) |
| Power Consumption | 25 - 30 W (max load, no power loss under continuous operation) |
Fluid Performance
| Rated Fuel Flow | 45 L/h (at 3.5 bar pressure, tested with standard gasoline) |
| Max Fuel Flow | 55 L/h (peak load, maintains stability for 10+ minutes) |
| Operating Pressure Range | 3.0 - 5.0 bar (adjustable via built-in pressure regulator) |
| Flow Accuracy | ±2% (ensures consistent fuel supply to engine) |
| Structural & Material | Core Component Material | 304 Stainless Steel (resists corrosion from fuel additives) |
| Housing Material | PA66 + GF30 (glass fiber-reinforced nylon, heat-resistant & impact-proof) |
| Sealing Material | NBR Rubber (oil-resistant, maintains seal integrity for 80,000+ km) |
| Weight | 0.8 kg (lightweight design, no extra load on engine components) |
| Environmental Adaptability | Operating Temperature Range | -40℃ to 120℃ (performs normally in extreme cold/hot climates) |
| Storage Temperature Range | -50℃ to 150℃ (no material deformation during long-term storage) |
| Humidity Resistance | 0 - 95% RH (non-condensing, suitable for humid regions) |
| Reliability & Certification | MTBF (Mean Time Between Failures) | 10,000+ hours (tested under cyclic load conditions) |
| Service Life | 80,000+ km (under standard usage and maintenance) |
| Certifications | ISO 9001, IATF 16949, CE, RoHS (compliant with global automotive regulations) |
| Installation | Mounting Type | Direct Fit (matches OE mounting points, no modification required) |
| Connector Type | 2-Pin Waterproof Connector (IP67 rating, prevents water/dust intrusion) |
Product Uses
Here are specific application scenarios of fuel pump:
Extreme Temperature Regions (Cold & Hot Climates)
Ideal for areas with temperatures ranging from -40℃ to 120℃ (e.g., Nordic winters, Middle Eastern summers). Our fuel pump maintains stable fuel flow (45 L/h at 3.5 bar) even in extreme cold, ensuring 99% engine start success rate. Its heat-resistant PA66+GF30 housing prevents deformation in high heat, avoiding flow interruptions.
High-Frequency Commercial Vehicle Operations
Perfect for taxis, delivery vans, or fleet vehicles with annual mileage over 20,000 km. With 80,000+ km service life and 10,000+ hours MTBF, the fuel pump handles continuous operation without frequent maintenance. Its 25-30W low power consumption also reduces operational costs for commercial users.
Coastal & Humid Areas (Saltwater Corrosion Resistance)
Suitable for coastal regions with 0-95% RH humidity and salt-laden air. The 304 stainless steel core and NBR rubber seals resist corrosion from saltwater vapor, extending component life by 40% compared to ordinary fuel pumps. No rust-related flow loss ensures consistent engine performance.
Daily Commuter Vehicles (Smooth & Quiet Use)
Fits private cars used for daily commuting (10-50 km/day). The 65dB quiet motor (lower than industry 75dB average) eliminates annoying operational noise. Its ±2% flow accuracy prevents engine hesitation during rush-hour acceleration, while direct-fit design allows easy replacement (no garage modifications needed).
Aftermarket Replacement for Aging Fuel Systems
Ideal for replacing old, inefficient fuel pumps (e.g., those with reduced flow or frequent leaks). As an OE-level replacement, it matches original mounting points perfectly, restoring fuel supply efficiency to 100%. 100% pre-shipment testing ensures it meets factory performance standards, avoiding post-installation defects.
Product Operate Guide
1.Pre-Installation Prep: Disconnect the vehicle’s battery first to avoid electrical risks. Check the fuel pump’s connector (2-Pin IP67) for damage—ensure it matches your vehicle’s port.
2.Post-Installation Check: After direct-fit installation, test fuel pressure (3-5 bar, standard range) to confirm no leaks. Power on briefly to verify 45 L/h rated flow (no hesitation).
3.Daily Use & Maintenance: Avoid running on low fuel (protects the pump). Inspect every 20,000 km; replace seals (NBR material) if aged to maintain 80,000+ km service life.
