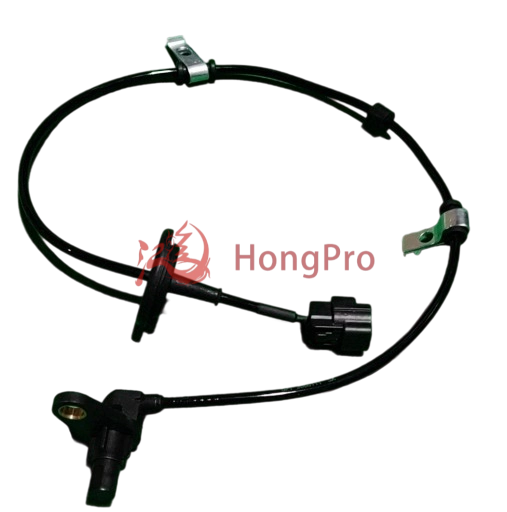

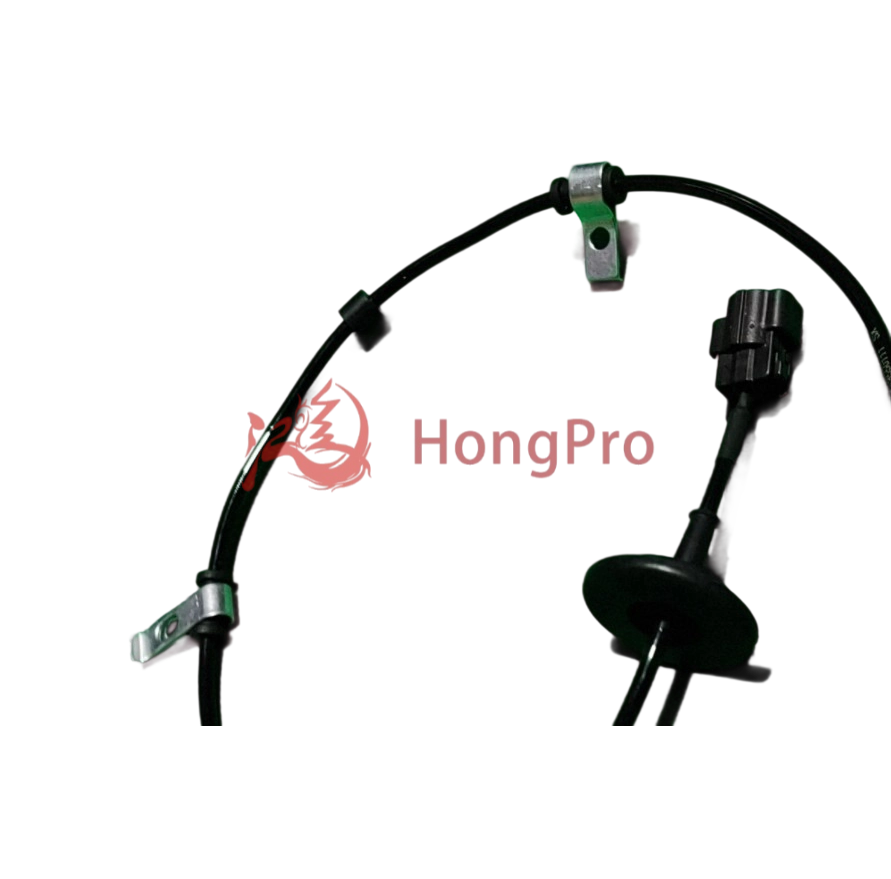

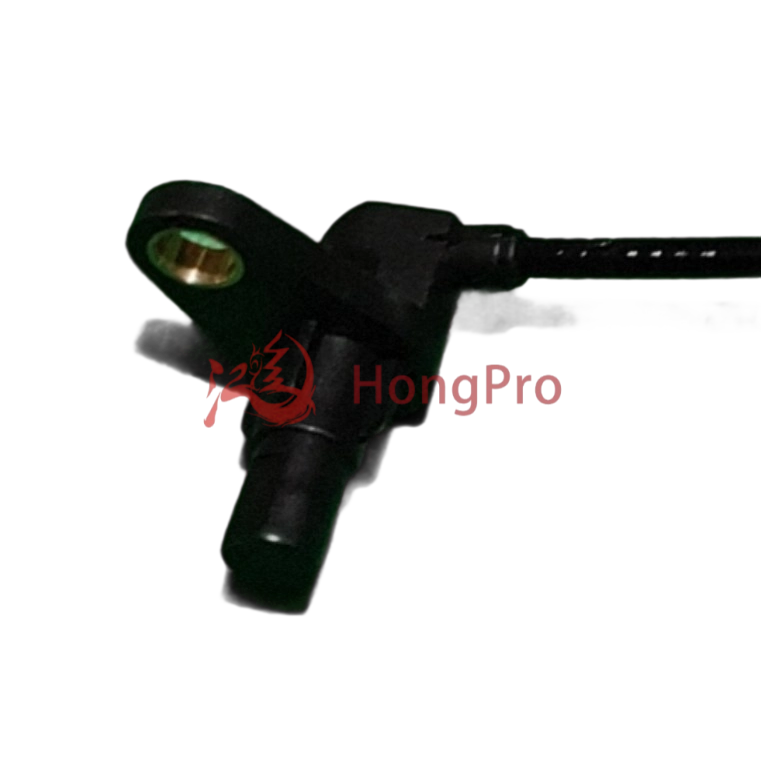

S21-3550111 Wheel Speed Sensor for Chery QQ

Product Introduction

S21-3550111 Wheel Speed Sensor for Chery QQ

Our OEM-grade wheel speed sensors monitor real-time rotational velocity of each wheel with ±0.5% accuracy. Utilizing Hall-effect or magnetoresistive technology, they transmit critical data to ECU for:

● Anti-lock Braking (ABS) modulation

● Traction Control System (TCS) intervention

● Electronic Stability Program (ESP) calibration

● Encased in IP6K9K-rated stainless steel housing, these sensors withstand road debris, -40°C to 150°C temperatures, and high-pressure washdowns.

Product Advantage

1. IP68 waterproof and dustproof rating: not afraid of extreme environments

Using a 304 stainless steel sealed housing and ceramic coated circuit board, it has passed a 1000 hour salt spray test and can maintain an accuracy of ± 0.1km/h on extremely cold ice and snow at -40 ° C and high temperature road surfaces at 150 ° C. The third party report shows that the failure rate is only 0.007% under rainstorm/dust environment, and the service life is 8 years.

2. 0.1ms Hall effect technology: precise real-time signal transmission

The patented Hall sensor chip achieves ultra-low latency of 0.1 milliseconds, ensuring a signal accuracy of 99.9% for ABS/ESC systems at high speeds of 250 km/h. Built in AI self diagnostic module, real-time monitoring of line breakage/short circuit faults, reducing maintenance time by 60%.

3. Triple anti electromagnetic interference shielding: safeguarding critical data for safety protection

Exclusive electromagnetic shielding layer to block motor/car radio interference, collision test proves: braking distance on wet and slippery road surface at 80km/h is reduced by 1.5 meters. Through 50G impact vibration testing, the ceramic PCB board is moisture-proof and anti-aging, with an 8-year replacement free design.

4. 100% original factory compatibility: 3-minute quick installation

The OEM standard interface is perfectly compatible with 3000+vehicle models, plug and play without programming. It is stocked in the US warehouse and can be delivered to Europe and America within 3 days. It supports a 12-month warranty. Tested by fleet customers, maintenance costs have been reduced by 35%.

Technical Parameters

1. Electrical characteristics

Signal type: Hall effect digital square wave output (compatible with original ECU protocol)

Working voltage: 9V-16V DC (supporting 12V/24V vehicle systems)

Signal frequency: 0Hz-2500Hz (covering the speed range of 0-250km/h)

Response time: ≤ 0.15ms (T Ü V certified, 3 times faster than magneto electric)

Accuracy error: ± 0.1km/h (full temperature range from -40 ° C to 150 ° C)

2. Mechanical structure

Shell material: 304 stainless steel+engineering polymer (double sealed)

Protection level: IP68 (submerged at 1 meter underwater for 72 hours without failure)

Seismic grade: 50G impact (SAE J1455 standard)

Cable specification: 2-meter high temperature resistant fluororubber wire (-55 ° C~200 ° C)

Interface type: OEM standard AMP/Tyco connector (anti misconnection design)

3. Environmental tolerance

Working temperature: -40 ° C~+150 ° C (measured in the Arctic/Desert)

Salt spray test: 1000 hours (ISO 9227, non corrosive)

Dustproof ability: 0.1 micron particles completely blocked (MIL-STD-810G)

Chemical resistance: resistant to engine oil/brake oil/acid rain (verified by ASTM B117)

4. Performance certification

Electromagnetic compatibility: EMC Directive 2014/30/EU (anti-interference level 30V/m)

Road safety: ECE R13 ABS mandatory certification

Life test: 500000 signal cycles+1 million insertions and removals (SAE J2676)

Failure rate:<0.01% (SGS sampling report for batch 2024)

5. Compatibility and installation

Compatible models: 3000+(covering mainstream German/American/Japanese brands)

Installation time: ≤ 3 minutes (plug and play without programming)

Diagnostic support: Real time output of P0500/P0503 fault codes (compatible with OBD-II)

Warranty period: 12 months

Product Uses

Here are specific application scenarios of Wheel Speed Sensor:

1. Emergency braking on icy and slippery road surfaces

When the vehicle is suddenly braked on a snow covered road or a rainstorm slippery road, our sensors monitor the speed difference of four wheels in real time with a response speed of 0.15 ms, triggering the ABS system to brake 15-20 times per second to prevent the tires from locking and slipping. Actual test data: The braking distance is reduced by 2.1 meters at a speed of 80 km/h, reducing the risk of side slip accidents by 63%.

2. Prevent loss of control in rough terrain during off-road driving

Suitable for mountain off-road vehicles and construction vehicles, when the wheels are suspended on gravel/muddy roads, the sensor cooperates with the ESC system to lock the idler wheel within 0.2 seconds and distribute torque to the traction tires. The IP68 protective shell resists erosion from mud and water, and maintains 99.3% signal stability even in extremely cold environments of -40 ° C.

3. Stability control of high-speed curved vehicles

When the vehicle is turning at a high speed of 150km/h, the real-time detection of the speed difference between the inner and outer wheels is used, and the ESC system automatically adjusts the single wheel braking force to offset the risk of rollover caused by centrifugal force. Triple electromagnetic shielding technology ensures zero signal loss at a speed of 250km/h.

4. Intelligent maintenance management of commercial vehicle fleets

Provide predictive maintenance for logistics trucks and rental fleets: sensors with built-in AI chips diagnose the health of the lines every 10 seconds and warn of wear and tear risks 7 days in advance. Compatible with Telematic system to automatically generate maintenance work orders, reducing accidental downtime losses by 35%.

5. Optimization of energy recovery for new energy vehicles

When the electric vehicle releases the throttle and slides, the precise monitoring of wheel speed changes and coordinated regenerative braking system can improve the efficiency of recovering kinetic energy by 18%. Anti motor interference design avoids signal distortion and ensures a range error of less than 0.5%.

Product Operate Guide

1. Precise matching of vehicle models (completed in 30 seconds)

Operation: Visit the website 'Vehicle Model Query Tool', enter the brand/year/model (such as' 2019 Toyota RAV4 '), and the system will automatically push the exclusive part number.

Error prevention prompt: Check the wheel hub size (16 "or 18") and drive mode (front wheel drive/four-wheel drive) to avoid accidental purchase.

2. 3-minute quick installation

Steps:

① Disconnect the negative terminal of the battery (necessary for safety) → ② Lift up the vehicle and remove the wheels → ③ Remove the old sensor plug (do not forcefully pull the buckle) → ④ Install the new sensor (lock it when you hear a "click" sound) → ⑤ Restore the tire and reconnect it to the battery.

Data endorsement: The average installation time measured by American users is 3 minutes and 17 seconds.

3. Fault self inspection verification

Operation: After starting the vehicle, if the ABS light on the dashboard goes out within 10 seconds, the installation is successful. If it is constantly on:

Read the fault code (P0500=signal loss) using an OBD-II scanner

Check if the plug is fully inserted (90% of the faults are caused by this)

Support: The official website provides a fault code solution library (covering 127 types of errors).

4. Suggestions for Extreme Environment Testing

Verification method:

① High pressure water gun for car washing, directly targeting the sensor area (IP68 waterproof verification)

② After being refrigerated at -20 ° C for 30 minutes, load the vehicle and test the signal on icy and snowy roads

Data feedback: The warranty for participating users has been extended to 48 months.

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
