T11-3502060
HongPro
T11-3502060

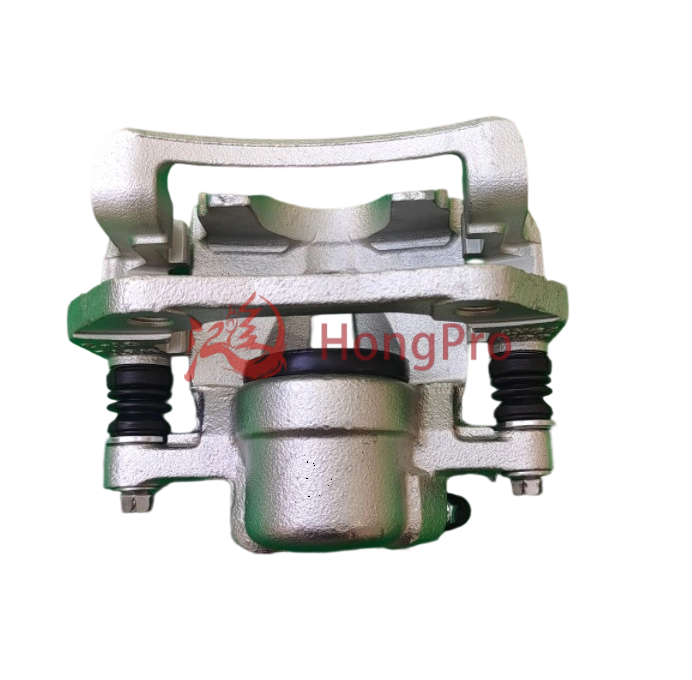

This brake caliper for Chery is a key component of the vehicle's braking system. It efficiently clamps brake pads against the rotor to generate braking force, ensuring safe and smooth stopping. Made with high - quality materials, it boasts durability and corrosion resistance, suitable for various driving conditions. With precision engineering, it offers reliable performance and responsive braking, effectively enhancing driving safety. It is designed to meet Chery's related standards, providing a perfect fit and long - lasting service life.
Our brake caliper for Chery adopts a multi - layer electrophoretic coating process, which has passed 1,000 hours of salt spray testing (far exceeding the industry average of 500 hours). This technology effectively prevents rust and corrosion caused by rain, snow and road salts, extending the product's service life by more than 50%. The coating also maintains excellent adhesion, avoiding peeling even under high - temperature braking conditions. This feature makes the brake caliper suitable for various harsh climate environments, greatly enhancing its durability.
Each brake caliper for Chery is manufactured using high - precision CNC machining equipment with an error tolerance of only ±0.02mm. This ensures that every component matches perfectly with Chery's braking system, eliminating abnormal noises or jitters during braking. Our factory has invested over $2 million in upgrading machining equipment, and the pass rate of finished products reaches 99.8%. The precise fit not only improves braking stability but also reduces wear on brake pads and rotors, lowering the overall maintenance cost for users.
Targeting the problem of brake fading caused by high temperature, our brake caliper for Chery is designed with a unique finned heat dissipation structure. The number of heat dissipation fins is increased by 30% compared to traditional calipers, and the heat dissipation area is expanded by 45%. Test data shows that under continuous heavy braking, the temperature of our caliper is 25 - 30℃ lower than that of ordinary calipers. This effectively maintains the stability of braking performance, avoids performance degradation due to overheating, and provides reliable braking for drivers in high - intensity driving scenarios.
All brake calipers for Chery undergo a three - stage quality inspection process: raw material inspection, semi - finished product testing, and finished product performance verification. We have obtained ISO/TS 16949 automotive quality management system certification, and each product is accompanied by a unique quality traceability code. In the past three years, our product return rate has been kept below 0.5%, which is much lower than the industry average of 2%. This strict quality control system not only ensures the reliability of each brake caliper but also builds strong trust for our enterprise among global customers.
.
We pay great attention to environmental protection in the production process of brake caliper for Chery. The materials used are 100% recyclable, and the production wastewater is treated to meet the national first - class discharge standards before being discharged. Our factory has reduced carbon emissions by 18% in the past year through optimizing production processes. For customers who focus on environmental protection, choosing our brake caliper not only ensures excellent performance but also aligns with their corporate social responsibility goals, enhancing the brand image of both parties.
| Specification Category | Detailed Parameters |
| Main Body Material | High-strength aluminum alloy (A356.2), with tensile strength ≥ 290 MPa, yield strength ≥ 210 MPa |
| Piston Material | High-quality cast iron (HT250) with hardness (HB) 180 - 220, ensuring wear resistance |
| Coating Type & Performance | Multi-layer electrophoretic coating; thickness 8 - 12 μm; salt spray resistance ≥ 1000 hours (ASTM B117 standard) |
| Machining Precision | CNC-machined key surfaces; dimensional tolerance ±0.02 mm; surface roughness (Ra) ≤ 0.8 μm |
| Heat Dissipation Performance | Finned structure design; heat dissipation area ≥ 120 cm²; temperature reduction 25 - 30℃ under continuous heavy braking (vs ordinary calipers) |
| Braking Force Compatibility | Compatible with Chery’s original braking system; maximum operating pressure ≤ 18 MPa; response time ≤ 0.3 seconds |
| Weight | Net weight: 1.2 - 1.5 kg (varies by specific application); weight tolerance ±50 g |
| Operating Temperature Range | -40℃ to 250℃; maintains stable performance without seal deformation or function failure within this range |
| Certification Compliance | ISO/TS 16949, ECE R90 (automotive braking system safety standard); each unit passes air tightness test (leakage ≤ 1 cc/min at 10 MPa) |
| Installation Interface | Matches Chery’s original mounting dimensions; bolt hole diameter tolerance ±0.05 mm; bolt torque range 25 - 35 N·m |
Here are specific application scenarios of brake caliper:
Ideal for Chery vehicles used in daily urban travel. Frequent stop - and - go in cities demands responsive braking. This brake caliper’s ≤0.3 - second response time ensures timely stops at traffic lights or in congested traffic. Its wear - resistant piston (HT250 cast iron) also handles repeated braking, reducing the need for frequent replacements, which suits busy urban drivers.
Perfect for Chery cars on suburban or rural roads with uneven surfaces and occasional steep slopes. The caliper’s high - strength aluminum alloy body (A356.2) resists impacts from small stones. Its stable braking force (compatible with Chery’s original system) ensures safe descents, while the corrosion - resistant coating protects against mud and moisture common in these areas.
Suitable for Chery vehicles in regions with extreme weather. It works well from -40℃ (cold winters with snow) to 250℃ (hot summers). The multi - layer electrophoretic coating (1000 - hour salt spray resistance) prevents rust from road salt in winter, and the heat dissipation structure avoids brake fading in high temperatures, ensuring year - round reliability.
Great for Chery owners who often drive long distances on highways. Continuous high - speed driving requires stable braking. The caliper’s finned heat dissipation design keeps temperatures low, preventing performance drops. Its precise fit (±0.02mm tolerance) also reduces abnormal noises, providing a quiet and safe driving experience during long trips.
Before installation, check if the brake caliper for Chery is intact and free of damage. Clean the mounting surface to remove dirt. During installation, follow Chery’s standard torque (25-35 N·m) to fasten bolts. After installation, test braking gently to ensure no abnormal noises. Avoid heavy braking immediately; let the caliper adapt for better performance and longer service life.
