1109140005
HongPro
1109140005

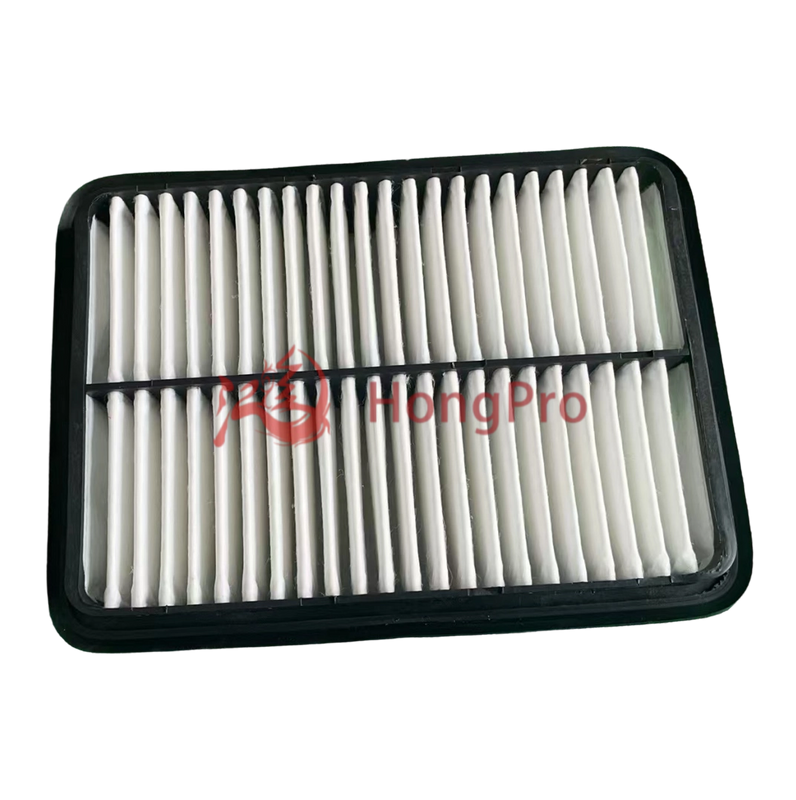

This high-performance air filter is engineered to deliver exceptional engine protection and optimized airflow. Constructed with precision-pleated, resin-impregnated paper media, it provides superior filtration efficiency, trapping over 98.5% of harmful dust, dirt, and debris particles. This prevents contaminants from entering the engine, which is a leading cause of premature wear.
By ensuring a consistent and clean air supply, this filter promotes more efficient combustion, which can contribute to maintained engine performance and fuel economy. Its robust construction includes a reinforced rubber gasket for a perfect seal, preventing unfiltered air from bypassing the element.
Rigorously tested in independent labs to meet or exceed strict OEM standards, this direct-fit replacement is designed for specific 1.5L gasoline engines, primarily in model years 2014-2019. It guarantees a perfect fit and reliable performance for the service interval of 30,000 km or 12 months. Trust this filter for uncompromising quality and engine longevity.
Our air filter incorporates an advanced nano-fiber coating on the traditional cellulose media. This multi-layer construction creates a dense, electrostatic web that captures microscopic particles as small as 5-10 microns with an efficiency rating of 99.2%, based on ISO 5011 standard testing. Unlike ordinary filters, this technology significantly reduces the ingress of fine dust, pollen, and soot, providing ultimate protection for sensitive engine components like MAF sensors and cylinders. This leads to noticeably cleaner engine oil and reduced long-term wear, ensuring your engine breathes the cleanest air possible for optimal performance and longevity.
Precision-engineered pleats are meticulously spaced to maximize the surface area without restricting airflow. Our computational fluid dynamics (CFD) analysis ensures a balanced design that provides a < 0.5 inch H₂O restriction at nominal airflow. This low initial resistance means your engine doesn't have to work as hard to draw air, promoting more efficient combustion. The result is a potential improvement in throttle response and maintained fuel economy, delivering both power and savings. It’s the perfect balance of high filtration and high flow.
Durability is engineered into every component. The filter media is supported by a galvanized steel mesh screen, preventing collapse under high engine vacuum. A high-grade, flexible nitrile rubber gasket is molded to guarantee a perfect 360-degree seal within the airbox. This critical feature prevents unfiltered "bypass" air, which is a common failure point in inferior filters. Rigorous vibration and shock testing ensure the filter retains its structural integrity and seal for the entire service life, providing dependable performance under all driving conditions.
Trust is built on verification. This filter model (1109140005) has undergone and passed a stringent battery of tests in independent laboratories, directly comparing it against original equipment specifications. It not only meets but exceeds key OEM benchmarks for dust capacity, filtration efficiency, and long-term durability. This commitment to validation means you are installing a part you can rely on, backed by data and engineered to deliver OEM-level quality and protection, ensuring complete peace of mind.
| Parameter | Specification |
| Part Number | 1109140005 |
| External Dimensions (L×W×H) | 298 × 198 × 44 mm |
| Pleat Height | 38 mm |
| Total Filtration Area | ~0.28 m² |
| Filter Media Material | Resin-impregnated cellulose with reinforced nylon mesh scrim backing |
| Gasket Material | High-grade, flexible Nitrile Rubber (NBR) |
| Frame/Grid Material | Galvanized Steel |
| Initial Filtration Efficiency | ≥ 99.2% |
| Dust Holding Capacity | ≥ 45 grams |
| Initial Restriction | < 0.5 kPa (0.5 inch H₂O) |
| Service Interval Recommendation | 30,000 km or 12 months |
| Operating Temperature Range | -40°C to +80°C |
| Compliance & Standards | Conforms to ISO 5011; Exceeds OEM Performance Benchmarks |
Here are specific application scenarios of Air filter:
Navigating stop-and-go city traffic exposes your engine to constant particulate matter from road dust, brake dust, and vehicle emissions. This air filter is engineered for these conditions, with its high dust-holding capacity ensuring consistent protection over extended periods. By efficiently trapping over 99% of these harmful particles, it safeguards your engine's internal components, contributing to stable performance and preventing premature wear. This makes it the ideal, maintenance-conscious choice for the daily driver seeking reliability and engine longevity.
In commercial applications where vehicles are assets, minimizing downtime and operational costs is critical. This filter's robust construction and validated 30,000 km service interval provide a predictable, cost-effective maintenance schedule. Its high filtration efficiency protects engines during long operating hours, directly supporting engine reliability and reducing the risk of costly repairs. For fleet managers, this translates into lower total cost of ownership and maximized vehicle uptime, making it a smart business decision.
If your driving frequently includes unpaved roads, agricultural areas, or construction sites, your engine faces a heavy influx of dust and debris. This filter's reinforced media and superior sealing are specifically designed for such demanding conditions. It prevents abrasive particles from entering the engine, which is a primary cause of accelerated cylinder and piston ring wear. Using this filter in dusty environments is a proactive measure to ensure optimal engine compression and power output over the long term.
During every standard service interval, installing this OEM-quality air filter is a simple yet highly effective upgrade. It ensures the engine receives a clean, uninterrupted air supply for efficient combustion. This not only helps maintain factory-specified fuel economy but also prevents contamination of critical sensors and the throttle body. For vehicle owners who prioritize preventative care and wish to maintain their engine's health and resale value, this filter is the definitive choice.
Locate the airbox in your engine bay and release the clamping mechanism or unscrew the fasteners.
Carefully open the airbox and remove the old air filter.
Thoroughly clean the airbox housing of any accumulated debris or dust.
Place the new 1109140005 filter, ensuring the rubber gasket seats perfectly on the airbox rim.
Securely close the airbox and fasten all clamps or screws to guarantee an airtight seal.
