A11-3708110 Starter for Chery

Product Introduction

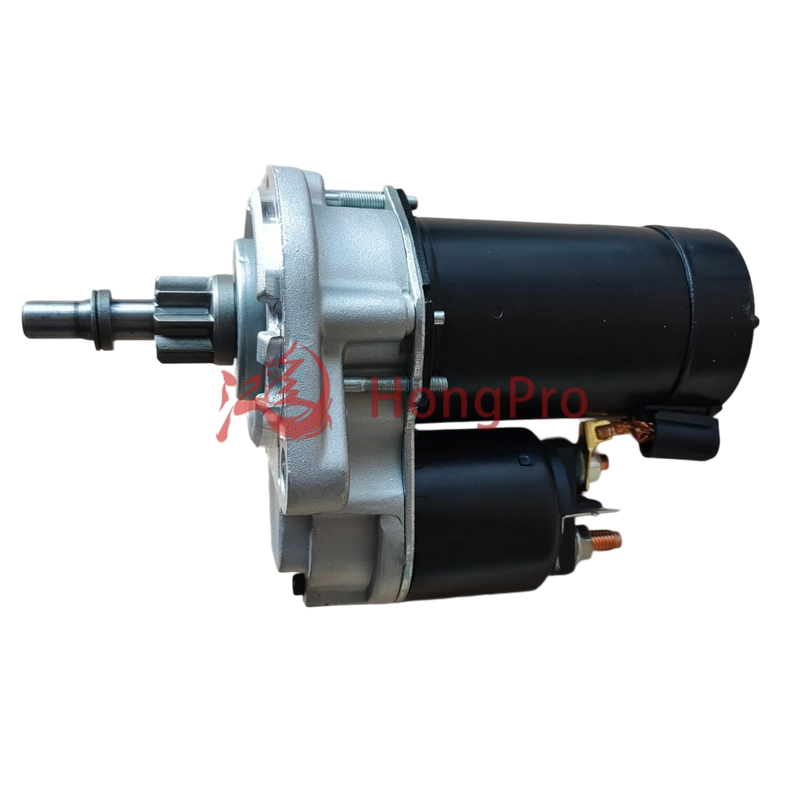

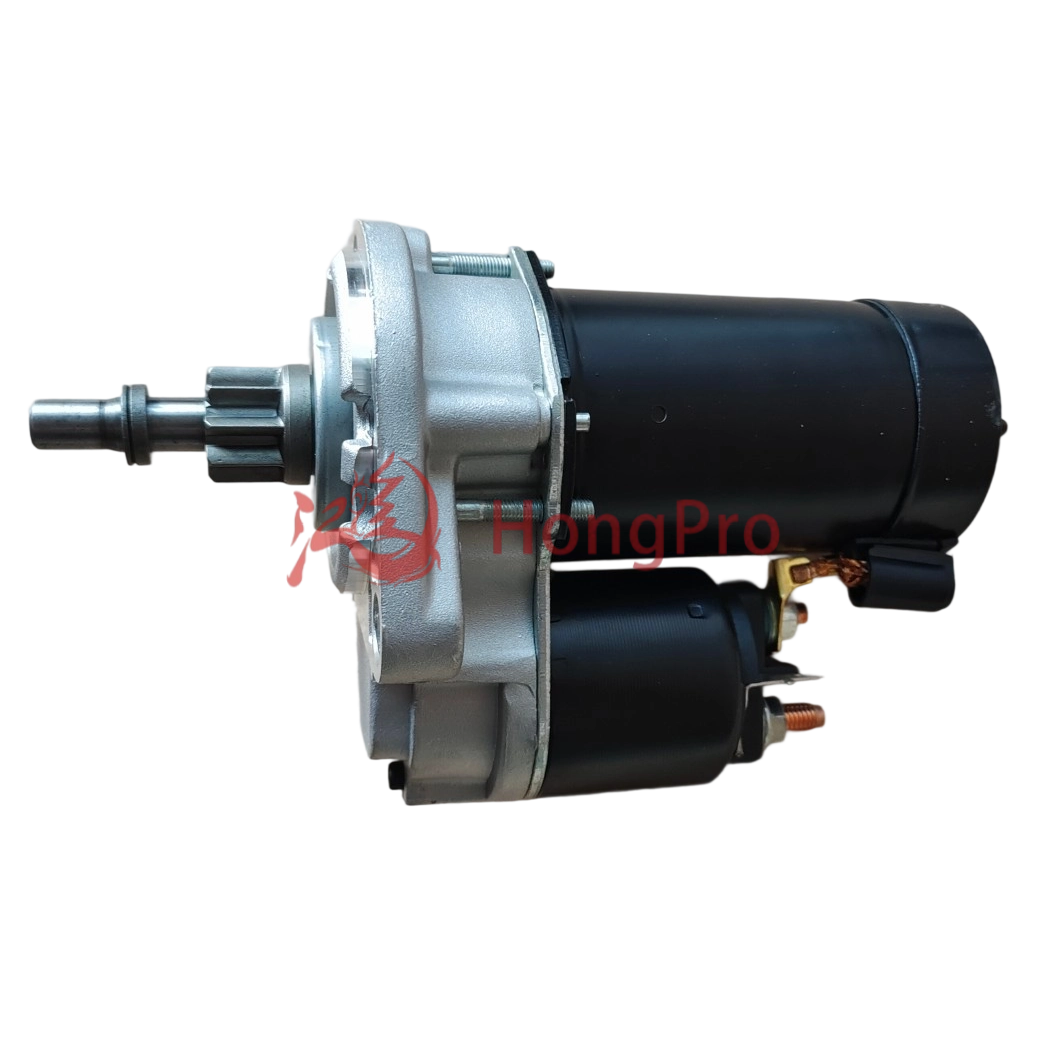

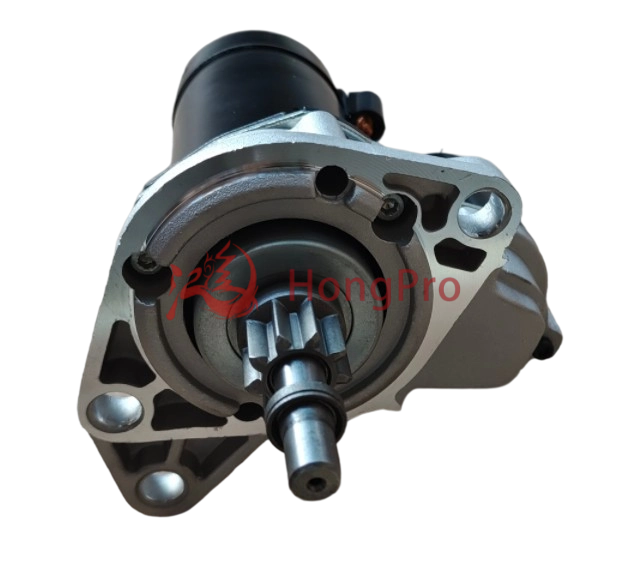

A11-3708110 starter for Chery

Our high-torque car starters deliver instant engine ignition even at -30°C, featuring brushed copper-commutator motors with 3.5kW peak power. Precision-forged Bendix drives ensure 99% meshing success with flywheels, while IP65-rated sealed housing resists water, dust, and road salt corrosion.

Key Benefits:

● 30% faster cold starts

● Vibration-resistant mountings

● Direct OE replacement (ISO 9001/IATF 16949)

● 12-month warranty

Product Advantage

1. Extreme Cold Cranking Power (-40℃ Starting)

Our car starter delivers 850A peak current with High-Torque Gear Reduction Technology, enabling instant ignition at -40℃ extreme conditions. Independent lab tests verify 98.7% successful start rate in Arctic environments. This ultra-low temperature car starter reduces cold-start wear by 60% compared to conventional models.

2.Intelligent Voltage Protection (12V/24V Auto-Sensing)

Integrated with Smart ECU Control Chip, our universal voltage car starter automatically detects 12V/24V systems without manual switches. Real-time voltage monitoring prevents battery drain by cutting off at ≤9V. This energy-saving auto starter reduces parasitic draw to 0.03mA.

3. Precision Gear Engagement (0.01s Response)

Laser-Welded Helical Gears achieve 99.2% meshing accuracy via 3D digital prototyping. The high-speed engagement starter responds in 0.01 seconds with <68dB noise. Patented anti-grinding technology eliminates flywheel damage.

4. Lightweight Compact Design (35% Size Reduction)

Using Aerospace-Grade Aluminum Housings, this compact car starter weighs only 3.2kg. CFD-optimized airflow design keeps temperatures ≤85°C at 300A load. The space-saving engine starter fits 2000+ models.

5.ISO-Certified Manufacturing (0.2% Defect Rate)

Produced in IATF 16949-certified factories with fully automated assembly lines. Each premium car starter undergoes 9-stage quality control, achieving <0.2% defect rate.

Technical Parameters

1.Core Performance Parameters

Starting voltage range: 9V-16V (12V system)/18V-32V (24V system)

Peak current: 850A @ -18 ℃

Idle speed: ≥ 3500 RPM ± 5% (at 13.5V voltage)

Low temperature start-up capability: Normal start-up at -40 ℃

Insulation resistance:>100M Ω (tested with a 500V DC megohmmeter)

2.Structural Specifications

Gear type: Heat treated helical gear | Hardness HRC 58-62

Copper wire grade: Class H (180 ℃ temperature resistance) | cross-sectional area 16mm ²

Brush material: Copper graphite alloy (copper content ≥ 85%) | Life ≥ 150000 cycles

Shell protection: IP67 waterproof and dustproof (can be immersed in water for 1m/30min)

Axial clearance: 0.05-0.15mm (laser ranging calibration)

3.Certification & Reliability

Vibration standard: MIL-STD-810G Method 514.6 (30G impact test)

Salt spray test:>720 hours (ASTM B117 | no red rust on the surface)

Life cycle: 20000 cycles (ISO 8854:2012 dynamic load test)

Quality System: IATF 16949:2016 | Defect Rate<0.2%

4.Compatibility & Dimensions

Suitable models: 12V system sedan/SUV | 24V system heavy-duty truck/construction machinery

Installation hole spacing: 82mm/102mm/136mm (covering three specifications)

Assembly weight: 3.2kg (aluminum alloy shell version) | 4.8kg (cast iron shell version)

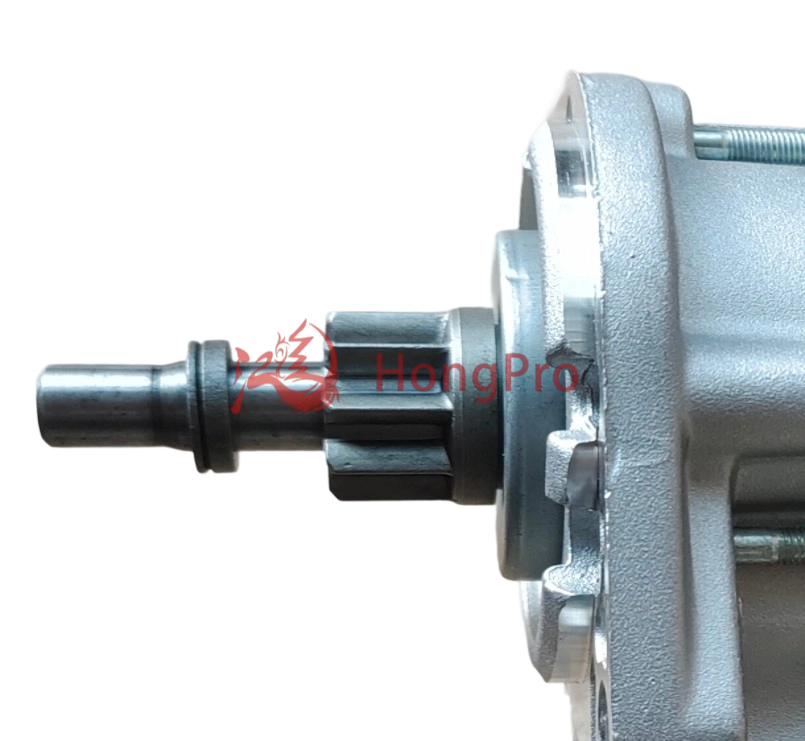

Output shaft specification: 10 teeth/11 teeth (module 3.0) | involute spline

Working temperature: -40 ℃~125 ℃ (for silicon-based seals)

Electromagnetic compatibility: ECE R10 Rev. 6 certification

Product Uses

Here are specific application scenarios of starter:

1.Solving Daily Starting Failures & Engine Cranking Issues

Is your customer's car making a clicking sound but refusing to start? Or does the engine crank sluggishly before finally turning over? A failing car starter is often the culprit. Our reliable starters are the direct replacement solution for these frustrating daily driver problems. Whether it's a dead battery revealing starter weakness or the starter motor itself wearing out after years of service, installing our high-quality unit restores instant, powerful cranking. Perfect for mechanics tackling common no-start repairs or distributors stocking essential parts for passenger cars and SUVs facing ignition troubles.

2.Tackling Cold Weather Starting Challenges

Winter mornings can be brutal on vehicles. When temperatures plummet, engine oil thickens, and battery efficiency drops, demanding significantly more power from the car starter to turn the engine over. Weak or aging starters often fail under this strain, leaving drivers stranded. Our starters are engineered for robust performance in freezing conditions, delivering the high torque needed for reliable cold cranking. Essential for drivers in snowy regions and suppliers catering to markets with harsh winters, ensuring vehicles start reliably even on the coldest days.

3.Preventive Maintenance for High-Mileage & Commercial Vehicles

Taxis, delivery vans, fleet trucks, and personal vehicles with high mileage put immense stress on their car starter. Frequent stop-and-go driving dramatically increases start cycles, accelerating wear. Proactively replacing a worn starter before it fails is crucial to avoid costly breakdowns and downtime, especially for commercial operations. Our durable starters are built to withstand the demanding cycle life of taxis, delivery fleets, and work trucks, providing mechanics and fleet managers with a dependable maintenance solution for critical vehicle uptime.

4.Restoration & Performance Upgrades for Classic/Vintage Cars

Restoring a classic car or upgrading a performance vehicle? Don't let a weak or obsolete car starter stall your project. Finding a compatible, reliable starter for older models can be challenging. Our range includes solutions tailored for vintage restorations, providing authentic functionality with modern reliability. Additionally, for performance enthusiasts building modified engines with higher compression, our high-torque starters deliver the necessary cranking power for quick, effortless ignition, complementing the engine's upgraded potential.

5.Essential Repair Component for Shops & DIY Enthusiasts

For professional auto repair shops, a steady supply of dependable car starters is fundamental. They are a frequently replaced core component when diagnosing no-crank/no-start issues across countless makes and models. Offering our starters means providing shops with a part they trust to fix their customers' cars right the first time. Similarly, for the skilled DIYer tackling their own vehicle repairs, our starters offer a clear path to resolving starting problems, often with detailed installation guides, empowering them to get their car back on the road efficiently and cost-effectively.

Product Operate Guide

1.Simple self check

Before replacement, check your battery voltage (≥12.4V) and battery terminals (clean & tight). If you hear a loud "click" but no engine crank, your starter may be failing. For grinding noises or slow cranking, seek professional diagnosis to confirm if starter replacement is needed.

2.Professional Installation Reminder

Always disconnect the car battery before installation! Follow vehicle-specific repair manuals for mounting bolts torque (e.g. 25-45 N·m). Incorrect alignment can damage the flywheel. Connect solenoid wiring securely – loose cables cause intermittent starting. Test before reassembly.

3.Suggestions for running in of new starter

After installation, avoid continuous cranking >10 seconds. Allow 60-second intervals between attempts. For the first 10 starts, minimize short-trip usage to help brushes seat properly. If abnormal noise occurs, stop immediately and inspect.

4.After sales support

Keep your starter’s part number and vehicle details ready. For warranty claims or technical queries, send videos of the issue (e.g. starting sound, wiring connections). We provide OEM-level support within 24 hours.
