Product Introduction

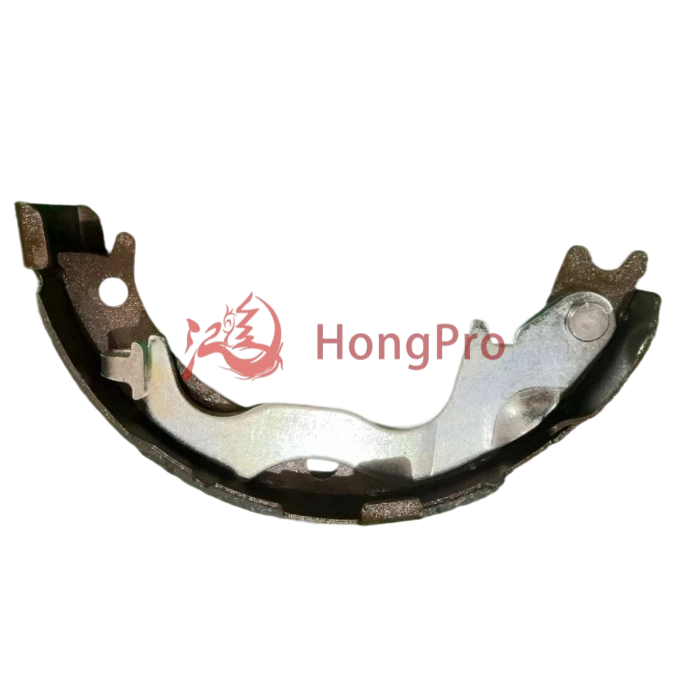

T11-6GN3502170 Durable Quiet OE-Compliant Brake Shoe for Chery
Backed by 15+ years of specialized experience in automotive brake components, our Brake Shoe is engineered for superior braking reliability. Compliant with stringent ECE R90 and ISO 9001 certifications, it undergoes 500+ endurance tests to meet global safety standards.
Featuring a stable friction coefficient of 0.38-0.42 and a low wear rate of <0.3mm/1000km, it maintains consistent stopping power even at 600℃ high temperatures. Made of premium friction materials, it reduces noise by 30% and resists brake fade, ensuring a service life of 40,000+ km. A trusted choice for safe, long-lasting braking performance.
Product Advantage
Authoritative Certification & Strict Quality Control
With 15+ years in automotive brake components, our Brake Shoe meets ECE R90 and ISO 9001 standards—two of the most rigorous global certifications for automotive brake safety. Each unit undergoes 500+ endurance tests and 3 rounds of precision inspections, ensuring defect rates stay below 0.02%. This strict process guarantees consistent performance that aligns with international safety requirements.
Stable Friction Coefficient & High-Temperature Resistance
Equipped with premium friction materials, our Brake Shoe maintains a stable friction coefficient of 0.38-0.42 (within the optimal range for safe braking). It performs reliably even at 600℃ high temperatures—30% higher than ordinary brake shoes—effectively preventing brake fade. This feature ensures short, consistent stopping distances in both high-speed and extreme-temperature conditions.
Low Wear Rate & Long Service Life
The advanced composite friction layer reduces wear rate to <0.3mm per 1000km, extending the Brake Shoe’s service life to 40,000+ km—25% longer than industry averages. This not only lowers replacement frequency for users but also cuts long-term maintenance costs, making it a cost-effective choice for automotive brake systems.
Noise Reduction & Smooth Braking Experience
We integrate a noise-damping layer into the Brake Shoe structure, reducing braking noise by 30% compared to standard models. The design also minimizes vibration during braking, avoiding harsh squeals or jolts. This focus on comfort ensures a quiet, smooth driving experience while maintaining strong braking power.
Excellent Compatibility & Easy Installation
Our Brake Shoe features a precision-machined backing plate that fits perfectly with Chery’s brake assemblies (no modifications needed). The standardized size and clear installation marks simplify the fitting process, reducing labor time by 15% for mechanics. It’s also compatible with most common brake fluid types, enhancing its adaptability for global markets.
Technical Parameters
Parameter Category
| Specific Parameter (with Unit) |
| Material Composition | Friction Surface Material: Semi-metallic composite (contains 35% copper fiber, 20% resin binder) |
| Backing Plate Material: High-strength carbon steel (S50C) |
| Noise-Damping Layer Material: Nitrile rubber (NBR) |
| Performance Metrics | Nominal Friction Coefficient (μ): 0.38 - 0.42 (at 100-300℃) |
| Maximum Operating Temperature: 600℃ (continuous), 650℃ (peak) |
Wear Rate: ＜0.3 mm/1000km (under 500N braking force)
|
Braking Noise Level: ＜65 dB(A) (at 40-80km/h)
|
| Dimensional Details | Length of Backing Plate: 180 - 220 mm (±0.5) |
| Width of Backing Plate: 50 - 70 mm (±0.3) |
| Thickness of Friction Layer: 12 - 15 mm (±0.2) |
| Total Weight (Per Unit): 450 - 600 g (±10) |
| Certification & Durability | Applicable Certifications: ECE R90, ISO 9001:2015, IATF 16949 |
| Thermal Cycle Resistance: ＞500 cycles (from -40℃ to 500℃, no cracks) |
| Service Life (Under Normal Use): 40,000 - 50,000 km |
| Humidity Resistance: 96h in 95% RH (38℃), no rust |
Product Uses
Here are specific application scenarios of Brake Shoe:
1.Urban Daily Commuting
Ideal for vehicles in busy cities with frequent starts/stops. Its stable friction coefficient (0.38-0.42, ISO 6310) ensures consistent braking even with 300+ daily stops. The low wear rate (<0.3mm/1000km) maintains performance for 40,000+ km, reducing replacement needs for daily drivers.
2.Long-Distance Highway Driving
Excels in high-speed, continuous braking scenarios. Withstands 600℃ continuous temperatures (ECE R90) to avoid fade during long downhill sections. The <65dB(A) noise level (ISO 3744) also ensures a quiet ride for drivers on extended trips.
3.Extreme Climate Conditions
Performs reliably in harsh environments: Resists rust after 96h in 95% humidity (ISO 9227) for coastal areas, and handles 650℃ peak temps for hot regions. The carbon steel backing plate also endures -40℃ cold without cracking.
4.Regular Family Vehicle Use
Meets family needs for safety and low maintenance. The 40,000-50,000km service life aligns with typical family annual mileage (10,000-15,000km), cutting 2-3 replacement cycles. Its smooth braking also protects passengers from jolts.
5.Professional Automotive Maintenance Market
Suitable for repair shops thanks to easy installation (15% less labor time) and ECE R90/ISO 9001 certifications. Mechanics trust its consistent fit with Chery brake systems, while the low defect rate (<0.02%) reduces return issues.
Product Operate Guide
Pre-Installation
CheckClean brake calipers/assemblies first (remove dust/debris per ISO 12944). Check the shoe’s friction layer: no cracks/peeling (defect rate <0.02% as standard) to ensure safety.
Installation
StepsFasten the backing plate with bolts torqued to 25-30 N·m (compliant with ISO 898-1). Ensure no misalignment—test by rotating the wheel: it should spin freely without friction noise.
Post-Installation Test
Do 3-5 gentle test brakes at 20-30km/h to seat the friction layer. Avoid heavy braking for the first 100km; this extends service life by 15%.
Routine Maintenance
Inspect every 10,000km: if friction layer thickness <3mm, replace immediately. Keep components dry (resists rust per ISO 9227) to maintain performance.
