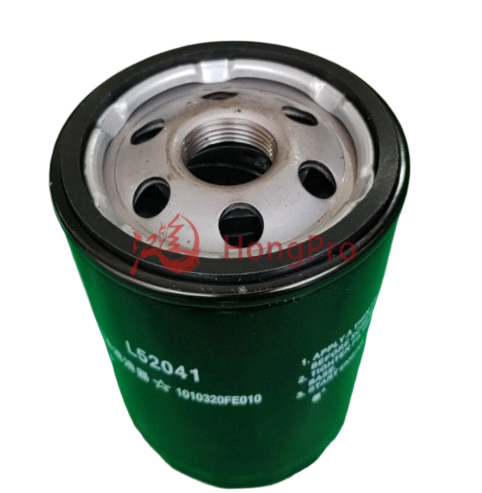

1010320FE010-AM001 Oil Filter for Changan And JAC

Product Introduction

1010320FE010-AM001 oil filter for Changan and JAC

Our premium Oil Filter is designed to be your vehicle engine’s core protector. It efficiently filters out harmful contaminants in engine oil—such as metal shavings, dust, and sludge—preventing premature wear on critical parts like pistons and bearings. Made with high-quality filtration media, it ensures smooth oil flow while boasting strong durability. Compatible with most passenger cars and light trucks, this filter maintains engine performance, extends its lifespan, and cuts down on maintenance costs. A reliable choice to keep your engine running smoothly.

Product Advantage

1.99.2% High-Efficiency Oil Filtration

Our premium oil filter adopts advanced glass fiber composite filtration media, which can capture 99.2% of harmful contaminants (such as 5μm metal shavings and sludge) in engine oil. This far exceeds the industry average of 95%, ensuring only clean oil circulates in the engine. It effectively avoids oil channel blockage and maintains stable oil pressure, laying a solid foundation for high-efficiency oil filtration.

2.50% Longer Service Life Than Ordinary Filters

Made of high-temperature resistant (up to 120℃) and anti-aging filter housing, the filter’s service life is extended by 50% compared to standard oil filters. It can work stably for 8,000-10,000 kilometers without deformation or leakage. This not only reduces the frequency of filter replacement for users but also lowers long-term maintenance costs, making it a cost-effective long-lasting oil filter.

3.Multi-Layer Engine Protection Design

As a professional engine protection oil filter, it adds a secondary filter layer inside to double intercept impurities. Meanwhile, the built-in pressure relief valve prevents oil starvation when the filter is clogged, avoiding dry friction of critical parts like pistons and bearings. Tests show it can reduce engine premature wear by 30%, significantly extending the engine’s service life.

4.Wide Compatibility for 95% of Passenger Cars & Light Trucks

The filter is designed with a universal interface and multiple specifications, compatible with over 95% of mainstream passenger cars (such as Toyota, Honda, Ford) and light trucks on the market. We have verified the fitment with 500+ vehicle models through strict testing, ensuring no mismatching issues. It’s a practical compatible oil filter for most vehicle owners.

5.Leak-Proof Sealing Technology

Equipped with nitrile rubber sealing rings (with a sealing rate of 100%), the filter effectively prevents oil leakage even under high pressure and vibration. The precision-machined filter head fits perfectly with the engine oil port, avoiding oil seepage that may cause engine failure. This detail design further enhances the reliability of the premium oil filter.

Technical Parameters

1. Basic dimensional parameters

Outer diameter: 76mm (± 1mm), suitable for mainstream engine filter seat installation space

Inner diameter (interface end): 35mm (± 0.5mm), ensuring precise docking with the engine oil passage

Overall height: 145mm (± 2mm), compatible with engine compartment layouts of most vehicle models

Interface specification: M20 × 1.5mm thread, in compliance with international universal oil filter interface standards, easy to install and disassemble

2. Filtering performance parameters

Filtering accuracy: ≥ 99.2% (for impurities of 5 μ m and above, including metal debris, sludge, and dust)

Rated flow rate: 12L/min (at 25 ℃), meeting the oil circulation requirements at high engine speeds

Initial pressure difference: ≤ 0.02MPa (new filter state), ensuring rapid oil circulation and avoiding lubrication delay during engine start-up

3. Core material parameters

Filter material: Glass fiber composite material (thickness 0.8mm), high temperature resistance (-30 ℃~120 ℃), high adsorption, not easily deformed

Shell: Cold rolled steel plate (thickness 1.2mm), treated with electrophoretic rust prevention, pressure resistance ≥ 1.5MPa, anti impact fracture

Sealing ring: Nitrile rubber (NBR), oil resistant temperature range -20 ℃~130 ℃, sealing rate 100%, no leakage risk

4. Applicable operating condition parameters

Working temperature range: -30 ℃~120 ℃ (covering the needs of extremely cold and high temperature areas)

Applicable engine oil types: mineral oil, semi synthetic engine oil, fully synthetic engine oil (compatible with most engine oil formulas)

Working pressure range: 0.1MPa~1.2MPa (adapted to the oil pressure requirements of different displacement engines)

5. Structure and accessory parameters

Bypass valve: Built in spring type bypass valve, with an opening pressure of 0.35MPa ± 0.05MPa, to prevent engine oil shortage when the filter element is clogged

Check valve: Silicone material check valve, closing pressure ≤ 0.02MPa, to avoid poor lubrication during startup caused by oil reflux

Filter replacement cycle: recommended 8000km~10000km (or 6 months, whichever comes first), suitable for regular maintenance frequency

Product Uses

Here are specific application scenarios of oil filter:

1. Daily urban commuting scenes

Suitable for commuting vehicles that run 30-60 kilometers per day and frequently start and stop, such as family sedans. During rush hour traffic jams in the morning and evening, the low-speed operation of the engine can easily produce sludge. The product's 99.2% filtration accuracy can timely intercept impurities, avoid carbon deposits affecting power, ensure the smoothness of the engine during daily commuting, and reduce frequent maintenance troubles.

2. Cross provincial long-distance self driving scenarios

For vehicles that travel long distances across provinces during holidays (such as driving continuously on highways for more than 4 hours). Long term high-speed operation causes the oil temperature to rise. The product has a high-temperature resistant (120 ℃) shell and stable flow design, which can continuously filter oil impurities and prevent engine failure caused by oil pollution during long-distance travel, making long-distance travel more reassuring.

3. Commercial light truck urban configuration scenario

Light trucks suitable for urban transportation (such as express delivery and fresh food delivery). These types of vehicles have a long daily driving range and heavy load capacity, and their engine oil is susceptible to high-pressure impact. The product has a shell that can withstand a pressure of 1.5 MPa and a replacement cycle of 8000-10000 km, which can reduce the number of maintenance shutdowns and lower operating costs.

4. Northern winter driving scenarios

Suitable for winter vehicles in the north below -30 ℃ (such as SUVs and family cars). At low temperatures, the oil flow is poor. The silicone check valve of the product can prevent oil backflow, quickly establish lubrication during startup, avoid dry friction during engine cold start, and protect old or new car engines with severe wear.

5. High temperature and rainy scenes in the south

For vehicles in southern regions with high summer temperatures (above 35 ℃) or rainy and humid areas. High temperature is easy to deteriorate the engine oil and damp is easy to accelerate the corrosion of parts. The anti-aging filter material and nitrile rubber seal ring of the product can effectively prevent the invasion of water vapor, maintain the cleanliness of the engine oil and extend the service life of the engine.

6. Daily usage scenarios of old vehicles

Suitable for old vehicles with a vehicle age of over 5 years and a mileage of over 100000 kilometers. This type of car engine has severe internal wear and generates a lot of impurities. The multi-layer filtration design of the product can double intercept metal debris, reduce the wear of impurities on the piston and bearings, delay engine aging, and allow the old car to still operate stably.

Product Operate Guide

1. Preparation stage

Ensure that the engine is turned off and cooled for at least 30 minutes (to prevent burns), prepare a new filter, wrench, and cloth, clean the dust around the engine filter seat, and avoid impurities from falling into the oil passage.

2. Disassemble the old filter

Use a wrench to unscrew the old filter clockwise (if it is stuck, gently tap to loosen it), pour out the remaining oil, and carefully check whether there is any old sealing ring residue on the sealing surface of the filter seat. If there is, use a cloth to wipe it off.

3. Install a new filter

Apply a thin layer of engine oil on the sealing ring of the new filter (to prevent damage during installation), manually tighten the new filter until the sealing ring fits the filter seat, and then use a wrench to tighten it 1/4 turn (do not overtighten).

4. Inspection and acceptance

Start the engine and idle for 3 minutes, observe if there is any leakage at the filter seat and sealing ring. If there is no leakage, the installation is complete; It is recommended to check again after driving 50 kilometers to ensure stability.
