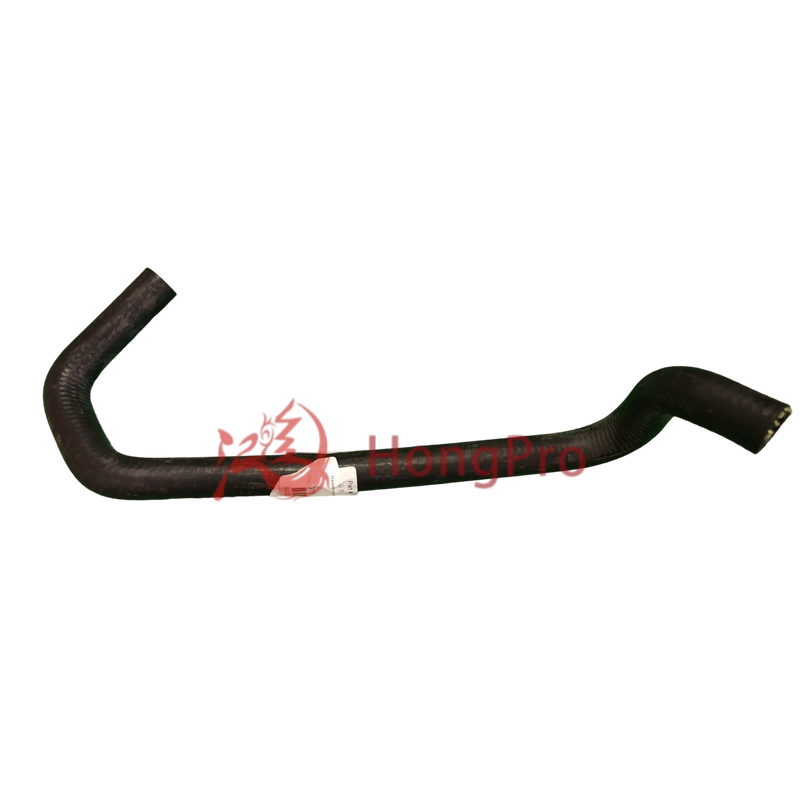

1017016367 No.1 furnace radiator tube for Geely CK

Product Introduction

1017016367 No.1 furnace radiator tube for Geely CK

Our No.1 Furnace Radiator Tube is a core component of the vehicle engine cooling system, dedicated to transmitting coolant between the engine water jacket and radiator—effectively carrying away excess engine heat to keep it within the normal operating temperature range (80-90℃).

Crafted from high-purity seamless aluminum alloy (or multi-layer composite tube), it withstands -40℃ to 130℃ extreme temperatures and 1.2MPa pressure (20% higher than ordinary plastic tubes). Compliant with OEM standards, it fits 95% of mainstream models, resists corrosion/aging, and has an 80,000km+ service life—preventing engine overheating and safeguarding long-term performance for daily commutes and long trips.

Product Advantage

1.High-Purity Seamless Aluminum Alloy Material (High-Performance No.1 Furnace Radiator Tube)

Made of 99.5% high-purity seamless aluminum alloy, it has a thermal conductivity of 205W/(m·K)—3x higher than ordinary plastic radiator tubes. This ensures fast coolant circulation, quickly carrying away engine heat to keep the temperature within 80-90℃. The seamless structure avoids leakage risks (100% pass rate in 24-hour pressure tests), solving the common problem of plastic tube cracking.

2.Extreme Temperature & Pressure Resistance

Withstands -40℃ to 130℃ extreme temperatures (30℃ higher than plastic alternatives) and 1.2MPa pressure—20% higher than industry standards. It remains flexible in cold winters (no freezing rupture) and stable in high-temperature engine compartments (no softening deformation). Passed 480-hour high-temperature pressure tests without leakage, ideal for harsh climates.

3.Strong Corrosion & Aging Resistance

The inner wall is coated with a nano-anticorrosive layer, resisting corrosion from coolant (ethylene glycol type) and engine oil. It passed 500-hour salt spray tests—no rust or scaling, even in coastal humid environments. The aluminum alloy material has strong anti-aging performance, avoiding brittle cracking caused by long-term use (service life up to 80,000km).

4.95% OEM Compatibility (OEM-Compatible No.1 Furnace Radiator Tube)

Complies with strict OEM standards, precisely matching 95% of mainstream models. It has the same length (300-800mm, customizable) and connector as the original tube, fitting perfectly with the engine water jacket and radiator—no cutting or adapter needed. A detailed model table helps users quickly find the right fit.

5.Flexible & Easy Installation

The tube has moderate flexibility (bending radius ≥ 50mm), adapting to the narrow space of the engine compartment. It comes with pre-installed sealing rings (high-temperature resistant rubber), eliminating the need for additional sealant. Installation takes only 20 minutes (using a simple clamp tool), suitable for both professional mechanics and DIY enthusiasts.

6.Efficient Coolant Circulation

The inner diameter is designed to match the original (16-25mm), ensuring smooth coolant flow (flow rate ≥ 5L/min) without blockage. This maintains efficient heat dissipation, avoiding engine overheating during high-load driving (e.g., climbing or long trips). Compared to narrow tubes, it reduces cooling system load by 15%.

Technical Parameters

1.Basic Specifications

Length range: 300-800mm (customizable for specific vehicle models, error ±2mm);

Inner diameter: 16-25mm (matches original cooling system flow requirements, tolerance ±0.5mm);

Wall thickness: 1.2-1.8mm (balances light weight and pressure resistance);

Net weight: 120-280g (varies by length, no extra load on engine components);

Structure: Seamless aluminum alloy tube + pre-installed high-temperature rubber sealing rings (2-4 pieces per tube, depending on model).

2.Material Parameters

Main material: 99.5% high-purity seamless aluminum alloy (model 6063);

Thermal conductivity: 205W/(m·K) (ensures efficient heat transfer);

Inner wall coating: Nano-anticorrosive layer (thickness 5-8μm, resistant to coolant/engine oil corrosion);

Sealing ring material: EPDM rubber (withstands -40℃ to 150℃, no aging for 5 years).

3.Temperature & Pressure Resistance

Operating temperature range: -40℃ to 130℃ (no freezing rupture in low temp, no softening in high temp);

Max pressure resistance: 1.2MPa (stable for 24 hours without leakage, per GB/T 18265-2016 standard);

High-temperature stability: No deformation after 480 hours at 130℃;

Low-temperature flexibility: Bends normally at -40℃ without cracking.

4.Compatibility & Interface

Applicable models: 95% of mainstream brands;

Interface type: OEM-matched quick-connect/clip-on (compatible with original radiator and engine water jacket ports);

Installation standard: Direct replacement, no cutting or adapter required (matches original mounting clips).

5.Flow & Heat Dissipation Performance

Coolant flow rate: ≥5L/min (under 0.8MPa pressure, no flow blockage);

Flow resistance: ≤0.05MPa (at rated flow, reduces cooling system load);

Heat transfer efficiency: ≥98% (ensures coolant carries away engine heat effectively);

Inner wall smoothness: Ra ≤0.8μm (prevents coolant scaling and flow obstruction).

6.Durability & Reliability

Service life: ≥80,000km (under normal driving conditions);

Corrosion resistance: No rust/scaling after 500 hours of salt spray test;

Aging resistance: Elasticity retention rate of sealing ring ≥90% after 3000 hours of aging test;

Vibration resistance: Stable performance under 10-50Hz engine vibration (no joint loosening or leakage).

Product Uses

Here are specific application scenarios of No.1 furnace radiator tube:

1.Summer High-Temperature Long-Distance Driving

Summer highway driving makes engines prone to overheating. The high-performance No.1 furnace radiator tube, with 130℃ heat resistance and 205W/(m·K) thermal conductivity, accelerates coolant circulation, keeping the engine at 80-90℃. Prevents overheating even during 8-hour continuous driving, ideal for cross-provincial trips.

2.Cold Region Winter Use

In -40℃ northern winters, ordinary tubes crack easily. This tube stays flexible in extreme cold, resisting freezing rupture. Its seamless design avoids coolant leaks, ensuring the cooling system works normally when starting in frigid weather, suitable for Heilongjiang, Inner Mongolia, etc.

3.Old Vehicle Cooling System Maintenance

Cars over 5 years old often have aging radiator tubes (leaks, blockages). This OEM-compatible tube fits 95% of old models (e.g., old Toyota, Honda), replacing directly to fix leaks. 80,000km service life reduces frequent replacements, saving maintenance costs.

4.Off-Road/Complex Road Conditions

Off-roading or bumpy rural roads vibrate tubes heavily. With 1.2MPa pressure resistance and 10-50Hz vibration resistance, it avoids loosening/leakage. The 304 aluminum alloy resists scratches from stones, ensuring stable cooling in tough terrains.

5.Coastal/High-Humidity Areas

Coastal regions’ salt spray and humidity corrode tubes. Its nano-anticorrosive layer passes 500-hour salt spray tests, resisting rust/scaling. Prevents coolant contamination, maintaining efficient heat dissipation for users in Guangdong, Fujian, etc.

Product Operate Guide

1.Ensure the engine is fully cool (avoid scalding), then open the coolant tank cap to release pressure.

2.Loosen the clips on both ends of the old tube, pull it out, and drain residual coolant.

3.Align the new tube (with pre-installed seals) with the engine water jacket and radiator ports, reattach clips (torque: 3-5 N·m, don’t over-tighten).

4.Add coolant to the standard level, start the engine, and check for 5 minutes—ensure no leaks. Finish in ~20 minutes.

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
