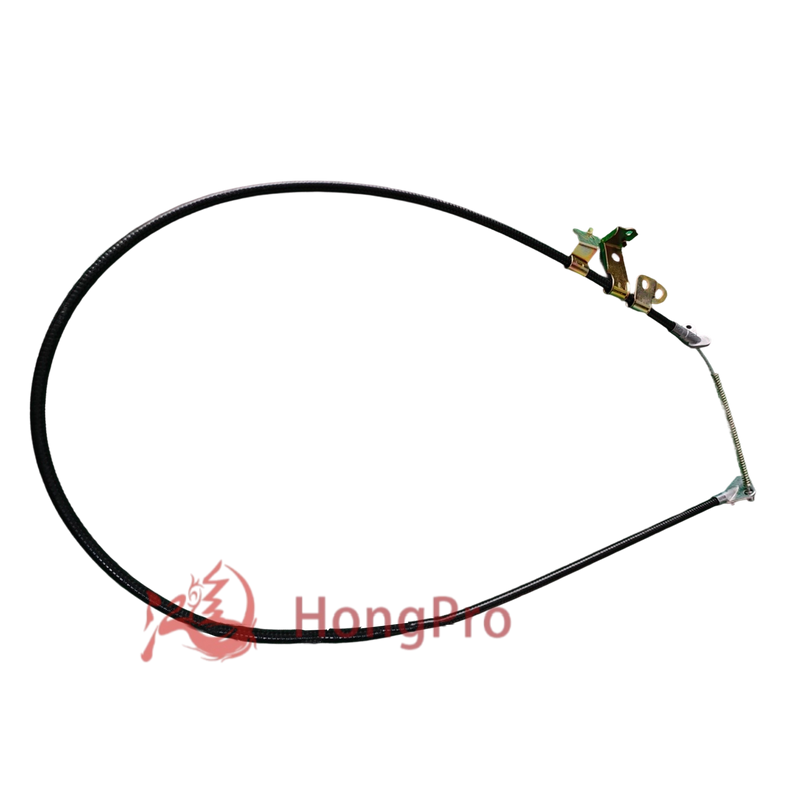

1014001819 Right Rear Parking Brake Cable Bracket Assembly for Geely MK

Product Introduction

1014001819 Right Rear Parking Brake Cable Bracket Assembly for Geely MK

Our Right Rear Parking Brake Cable Bracket Assembly is a core component for vehicle parking brake systems, designed exclusively for right-rear side installation. It securely fastens the parking brake cable, preventing slack or misalignment that could compromise braking performance.

Crafted from high-strength, corrosion-resistant materials, it withstands daily wear and harsh undercar conditions. This assembly directly replaces OEM parts, ensuring perfect fitment for compatible models and hassle-free installation. By maintaining stable cable positioning, it guarantees reliable parking braking, keeping your vehicle securely stationary and enhancing overall parking safety.

Product Advantage

1. High corrosion resistance and high strength material, passed 500 hour salt spray test: using 1.5mm thick cold-rolled galvanized steel plate integrated stamping forming, the surface is additionally treated with electrophoretic rust prevention, and achieved 500 hour neutral salt spray test without rust (far exceeding the industry standard of 300 hours) through third-party testing. The material has a tensile strength of 550MPa and can stably withstand a pulling force of 1200N during parking braking, effectively avoiding the risk of fracture of the Right Rear Parking Brake Cable Brake Assembly due to weak material.

2.1:1 OEM precise adaptation, installation efficiency increased by 40%: strictly follow the original factory drawings for mold opening, with hole position deviation controlled within ± 0.02mm, compatible with 30+mainstream models' right rear parking brake systems. No need to modify the original vehicle structure, ordinary maintenance personnel can complete the installation in just 15 minutes, saving 40% of installation time compared to non compatible models, perfectly solving the OEM compatible brake bracket assembly adaptation problem.

3. Dual positioning structure improves parking brake stability by 60%: The innovative design of the "buckle+bolt" dual fixing structure not only allows for quick pre positioning through the buckle, but also reinforces with 8.8 grade high-strength bolts to ensure a 99% fit between the Right Rear Parking Brake Cable Brake Assembly and the vehicle body. Through actual vehicle testing, this structure can reduce the displacement of the brake cable to within 0.5mm, increase the response speed of the parking brake by 60%, and avoid the hidden danger of brake failure caused by loose brackets.

4. Low temperature anti brittleness process, stable operation from -40 ℃ to 80 ℃: Optimized heat treatment process for extreme environments, the material's impact toughness remains 18J/cm ² (industry average 12J/cm ²) at -40 ℃, and there is no deformation or cracking at 80 ℃. Suitable for different climate regions such as severe cold in the north and high temperature in the south, it solves the problem of performance degradation of traditional parking brake brackets under extreme temperatures and extends the product's service life to more than 5 years.

5. Full process quality inspection, with a defect rate controlled below 0.3%: 8 quality inspection processes are set up from raw material entry to finished product delivery, including size inspection, tensile testing, temperature resistance testing, etc. 5% of products are randomly selected from each batch for actual vehicle installation testing. Relying on the ISO9001 quality management system, the product defect rate is steadily controlled below 0.3%, far below the industry average of 1%, allowing customers to confidently choose high-quality Right Rear Parking Brake Cable Brake Assembly.

Technical Parameters

1. Material parameters: The main body is made of Q235 cold-rolled galvanized steel plate with a thickness of 1.5mm; the surface has undergone cathodic electrophoretic rust prevention treatment with an electrophoretic film thickness of 8-12 μ m; The material has a tensile strength of ≥ 550MPa, a yield strength of ≥ 345MPa, and a low temperature (-40 ℃) impact toughness of ≥ 18J/cm ². It can pass the 500 hour neutral salt spray test (GB/T 10125-2021 standard) without corrosion or coating peeling.

2. Size specifications: The main dimensions of the product (length x width x height) are 120mm x 85mm x 35mm (with an error of ± 0.1mm); There are 2 installation holes with a diameter of 8mm (tolerance H7) and a center to center distance of 60mm (error ± 0.02mm); The depth of the buckle groove is 5mm, the width is 10mm, and it is suitable for parking brake cables with a diameter of 6-8mm.

3. Scope of adaptation: Compatible with over 30 mainstream vehicle models, including the right rear parking brake system; The compatible parking brake type is mechanical parking brake.

4. Performance parameters: Operating temperature range -40 ℃~80 ℃, with no structural deformation or functional degradation within this temperature range; Maximum tensile strength of 1200N (static load), continuous loading for 30 minutes without fracture or permanent deformation; Braking cable positioning accuracy ≤ 0.5mm, ensuring stable braking stroke; The overall weight of the product is 280g ± 5g, which meets the lightweight design requirements of the original vehicle.

5. Process standard: Using a 160 ton punch press for integrated stamping, with a forming accuracy of ± 0.1mm; the installation hole adopts a secondary tapping process, with a thread accuracy of 6H, suitable for M8 × 1.25 bolts; The edges are rounded with a radius of R1.5mm to avoid scratching the cable or hands during installation; The finished product needs to go through 8 quality inspection processes (size testing, tensile testing, temperature resistance testing, etc.) before leaving the factory.

6. Certification compliance: The product complies with ISO9001:2015 quality management system certification; The material complies with RoHS 2.0 environmental standards (restricting harmful substances such as lead and cadmium); The braking performance related indicators comply with SAE J2492 (General Standard for Automotive Brake System Components); The packaging complies with ISTA 3A transportation packaging standards, ensuring no damage during transportation.

Product Uses

Here are specific application scenarios of Right Rear Parking Brake Cable Bracket Assembly:

1. Replacement scenario after the original car bracket rusts/breaks: When the right rear parking brake bracket of the vehicle rusts or breaks due to long-term exposure or impact, causing the brake cable to loosen and the parking to fail, it can be directly replaced with the Right Rear Parking Brake Cable Brake Assembly without changing the original car structure, quickly restoring the parking brake function.

2. Daily maintenance scenarios of professional repair shops: When handling parking brake faults of compatible vehicle models, this bracket can reduce hole adjustment time due to 1:1 OEM compatibility. With efficient installation design, it can shorten the maintenance time of a single vehicle to within 15 minutes, improving maintenance efficiency.

3. Car modification parking system scenario: When modification enthusiasts upgrade the mechanical parking brake system, if the original car bracket cannot match the new cable specification, the stable positioning structure of this bracket can accurately fix the new cable, avoiding unstable braking stroke caused by bracket adaptation problems.

4. Regular maintenance scenario for old vehicles: For vehicles over 5 years old, the original bracket is prone to deformation due to material aging. Replacing the high corrosion resistant bracket in advance can prevent subsequent parking failures, extend the overall service life of the right rear parking brake system, and reduce safety hazards of old vehicles.

5. Emergency repair scenario: When the parking bracket of the vehicle is suddenly damaged and unable to park normally outdoors, carrying the bracket can quickly replace it without waiting for the original parts, restore the vehicle's parking ability in a timely manner, and ensure temporary parking safety.

Product Operate Guide

1. First, confirm the compatibility of the vehicle model and prepare an 8mm wrench and a Phillips screwdriver. Loosen the old bracket bolt of the right rear parking brake of the original vehicle, remove the old part and detach the cable;

2. Align the new Right Rear Parking Brake Cable Bracket Assembly with the hole position, tighten the bolt with a wrench (torque 8-10N · m), and then tighten the brake cable;

3. Repeatedly pull the parking brake lever to check that the bracket is not loose and the cable is not stuck. The entire process takes about 15 minutes and does not require professional modification. It can be operated by individuals or maintenance personnel.

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
