1014003350 Front Brake Pad for Geely MK

Product Introduction

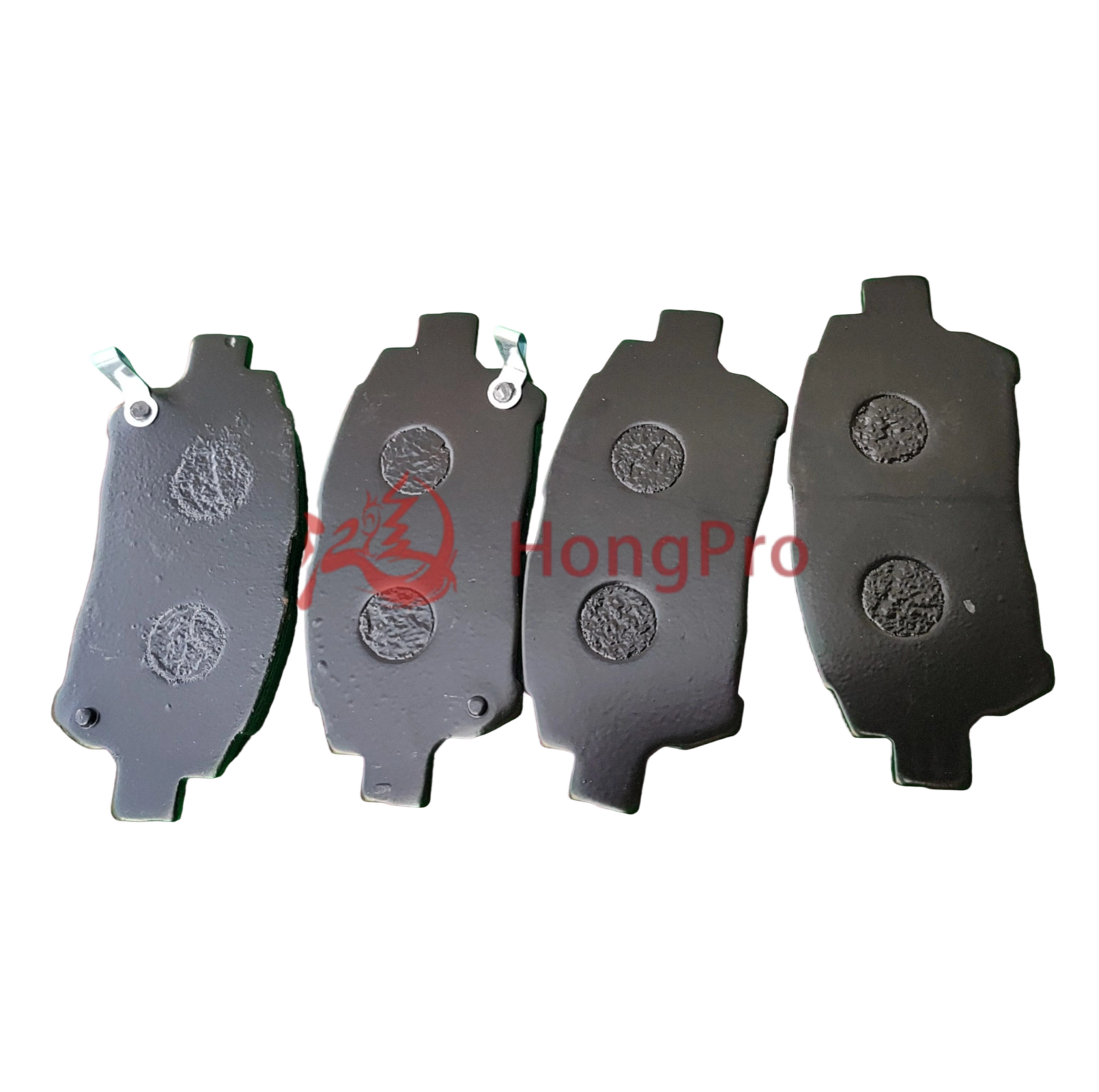

1014003350 Front Brake Pad for Geely MK

The Front Brake Pad is a core friction component of a vehicle’s front brake system, directly determining braking efficiency and driving safety. It converts vehicle kinetic energy into heat through precise friction with the brake disc, enabling smooth deceleration or emergency stopping without slippage.

Made of ceramic or semi-metallic composite materials, it offers high wear resistance (service life up to 30,000-50,000 km) and high-temperature resistance (withstanding over 600℃). It also reduces brake noise and dust. Compliant with OEM standards, it fits mainstream models like Toyota, Honda, and Volkswagen, allowing easy replacement without modification, ensuring stable front braking.

Product Advantage

1. Ceramic composite formula, 600 ℃ high temperature braking stability: using the "ceramic fiber+copper powder+high temperature resistant resin" composite formula, the friction coefficient is stable at 0.42-0.48 (industry average 0.38-0.45), and after 600 ℃ high temperature degradation test, the braking efficiency degradation rate is ≤ 8% (far below the industry standard of 15%). The wear rate of Front Brake Pad has been reduced by 30%, and its service life under normal working conditions reaches 60000+kilometers, which is suitable for the high-frequency braking needs of most household cars.

2. Multi layer silent structure, noise ≤ 55 decibels: Equipped with 3 layers of shock-absorbing steel plates (thickness 0.3mm) and butyl rubber sound-absorbing layer, the noise is controlled below 55 decibels (equivalent to normal conversation volume) after 10000 brake simulation tests, solving the problem of traditional brake pad "screaming" and creating a low noise front brake pad user experience.

3.1:1 OEM precise adaptation, 15 minute quick replacement: strictly produced according to the original factory drawings, with a backboard size error of ± 0.05mm, installation hole alignment accuracy of 100%, compatible with mainstream models of 30+brands. No need to polish the brake calipers, ordinary car owners can replace them with conventional tools, and the adaptation efficiency far exceeds that of the general model.

4. Low dust and minimal wear, with a 60% increase in wheel cleanliness: The ceramic material has a moderate hardness (HV35-40), with a brake disc wear of ≤ 0.02mm/1000km (industry average 0.05mm), reducing brake dust by 60%. The wheels remain clean even after long-term use, reducing the frequency of car washing for car owners and matching the cleaning advantages of ceramic front brake pads.

5. Full process quality inspection, with a defect rate of ≤ 0.2%: From raw materials to finished products, 12 tests are conducted (including friction coefficient testing, high-temperature durability testing, etc.), and 10% of products are randomly selected from each batch for 1000 kilometers of actual vehicle braking testing. Through ISO/TS 16949 automotive industry quality certification, the defect rate has remained stable at below 0.2%, far below the industry average of 1%.

6.12 months warranty, free returns and exchanges, worry free: provides a 12-month extended warranty, during which any abnormal material wear or brake noise issues will be replaced for free; We support a 7-day no reason return and exchange policy, with round-trip shipping costs borne by us, completely dispelling any purchasing concerns for aftermarket front brake pads.

Technical Parameters

1. Material parameters: The friction layer adopts a ceramic composite formula (ceramic fiber 35%+copper powder 15%+high temperature resistant resin 20%+mineral filler 30%), with a thickness of 14mm ± 0.2mm; the back plate is SPCC cold-rolled steel plate (thickness 3mm ± 0.1mm, tensile strength ≥ 345MPa); The sound-absorbing layer is made of butyl rubber (thickness 1.5mm, temperature resistance -40 ℃~150 ℃); The overall density is 2.8g/cm ³ ± 0.1g/cm ³, and the hardness (HV) is 35-40.

2. Performance parameters: Friction coefficient at room temperature (20 ℃) is 0.42-0.48 (SAE J2522 standard), friction coefficient retention rate at 300 ℃ is ≥ 90%, and degradation rate at 600 ℃ is ≤ 8%; Wear rate ≤ 0.08cm ³/(N · m) (industry average 0.12cm ³/(N · m)); Braking noise ≤ 55dB (10000 simulated tests); Service life of 60000 ± 5000 kilometers (under normal operating conditions).

3. Size specifications: overall length 165mm ± 0.1mm, width 85mm ± 0.1mm; initial thickness 18mm ± 0.2mm (including backplate), minimum wear limit thickness 3mm; 2 installation holes, aperture 8mm ± 0.05mm, hole center spacing 50mm ± 0.05mm; backplate edge rounded corner R1.5mm, no burrs (roughness Ra ≤ 1.6 μ m).

4. Scope of adaptation: Compatible with mainstream models from over 30 brands; Adapt to OEM part numbers.

5. Process standard: 1000 ton hydraulic press is used for one-time cold pressing (pressure 80MPa, holding pressure for 30 seconds), followed by 180 ℃ heat curing treatment for 2 hours; The sound-absorbing layer and backplate are bonded by hot pressing (peel strength ≥ 5N/cm); The finished product needs to pass 12 quality inspections (friction coefficient, thickness, hardness, appearance, etc.), with a defect rate of ≤ 0.2%.

6. Certification compliance: Complies with ISO/TS 16949:2016 automotive industry quality management system certification; The material complies with RoHS 2.0 environmental standards (harmful substances such as lead and cadmium ≤ 100ppm); Performance meets FMVSS 135 (Federal Motor Vehicle Safety Standard) in the United States; The packaging adopts anti-static and moisture-proof bags+cardboard boxes, with installation instructions and quality inspection reports attached.

Product Uses

Here are specific application scenarios of brake pad:

1. Scenario of original brake pad wear/failure replacement: When the vehicle dashboard indicates a brake fault, or when inspection reveals that the Front Brake Pad thickness is less than 3mm, the braking distance has increased, or there is a "screaming" when braking, directly replacing the brake pad can quickly restore braking sensitivity, avoid brake disc damage caused by excessive wear, and ensure driving safety.

2. High frequency commuting scenarios in cities: In response to the frequent start stop needs of urban traffic jams, the ceramic front brake pads have a 30% increase in wear resistance and do not require frequent replacement within 60000 kilometers; And the low-noise design (≤ 55dB) can avoid the harsh noise during morning and evening rush hour braking, improving the commuting experience.

3. Multiple scenarios on mountain roads/slopes: When vehicles often run on mountain roads and downhill sections, high temperatures are prone to occur during braking. The 600 ℃ high temperature degradation rate of this brake pad is ≤ 8%, which is far superior to industry standards. It can stably maintain braking efficiency and prevent brake weakness caused by high temperatures. It is suitable for self driving tours or mountainous users.

4. Batch repair scenario in repair shops: When handling brake maintenance for compatible vehicle models, the brake pads are 1:1 OEM compatible, without the need to polish the calipers. Single vehicle replacement can be completed in 15 minutes, and the low dust characteristics reduce the wheel hub cleaning process, improving repair efficiency.

5. Preventive maintenance scenario for old vehicles: For vehicles over 5 years old, the original brake pads are prone to abnormal braking noise due to aging materials. Replacing the high-temperature and anti-aging Front Brake Pad in advance can prevent sudden braking failure, avoid breakdown on the way, and extend the overall life of the braking system.

Product Operate Guide

1. Prepare a jack, wrench, caliper, and piston reset tool. Lift up the vehicle and remove the front wheel hub. Use a wrench to loosen the brake caliper bolt and remove the old Front Brake Pad;

2. Use a reset tool to push back the caliper piston, align the new brake pad with the slot, and tighten the caliper bolt;

3. Reinstall the wheel hub to the ground, repeatedly apply the brake 3-5 times for break in, start the vehicle to test the brake, and if there is no abnormal noise and the brake is smooth, it is completed. The whole process takes about 30 minutes.

FAQ

Q1: Are you manufacturing company?

A: Yes. We are factory, located in Guangzhou. Our factory has certificate of lATF 16949.

Q2: What are your main products?

A: We have steering rack ,steering pump ,wheel hub and bearing ,drive shaft ,alternator,control arm and so on.

Q3: What is the lead time?

A: lt takes 3-7 days when stock is available, and 15-40 days when out of stock.

Q4: What is the warranty?

A: Our guarantee period is 60,000 kilometers or 1 year.

Q5: Do you have samples?

A: Yes, we have samples available. For bulk orders, please inquiry us for more details.
